AN9238

AN9238 65MSPS 12bit AD9238 AD Analog digital signal conversion module

Use on SoC & FPGA development boards

Unit price

$ 53

Overview

ALINX AN9767 14bit 125Msps DA BNC Analog Output AD9767 Module

Product Description

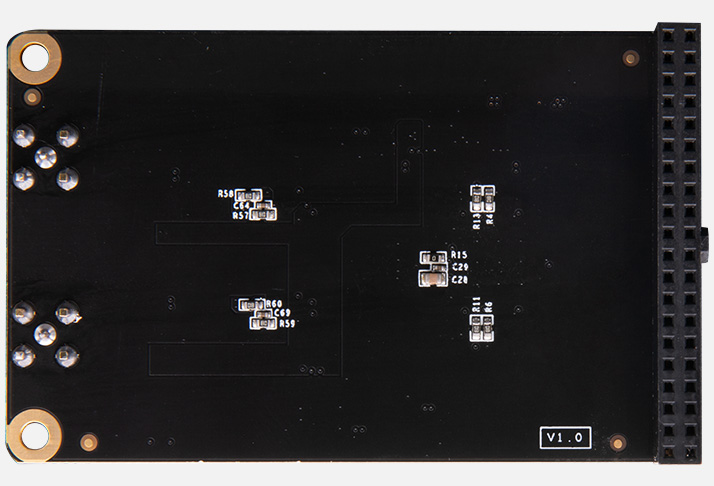

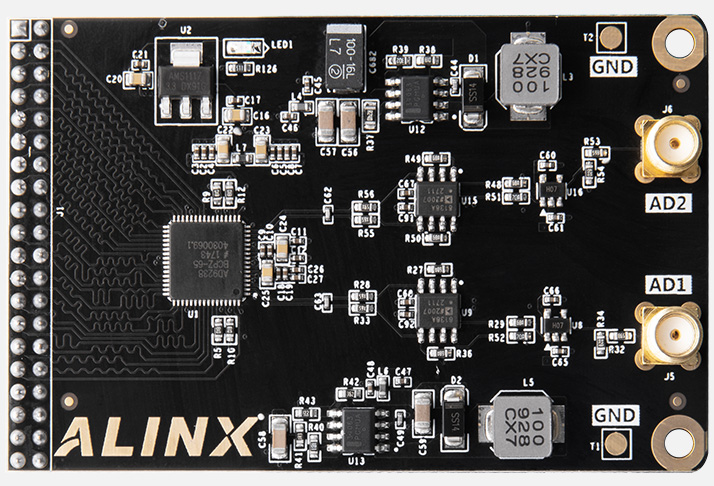

The AN9238 high-speed AD module consists of 2 channels of 65MSPS, with 12 bit analog signals converted to digital signals Module. The AD conversion of the module adopts ADI's AD9238 chip, which supports 2-way AD input conversion. The interface is an SMA socket.

Product Information

Parameter Description

  • ● Chip Model: AD9238
    ● Number of Bits: 12bit
    ● Number of Channels: 2 Channels
    ● Sampling Rate: Up to 65MSPS
  • ● Input Range: -5V to 5V
    ● Input interface: SMA interface
    ● Working Temperature: -40°C to 85°C
    ● Dimensions: 81 x 51mm form factor

What's Inside the Box

AN92381


Product Selection Matrix

Product Matrix

Product Model

USD Price

AN923853
