ALINX AMD Xilinx Kintex 7 XC7K325T FPGA development board

Overview

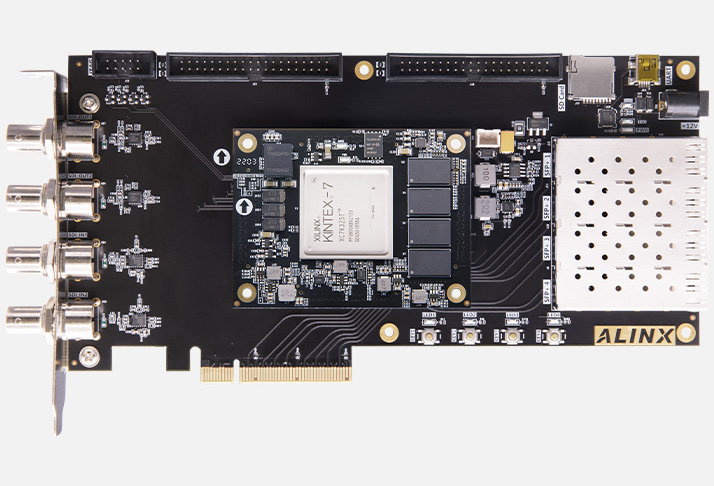

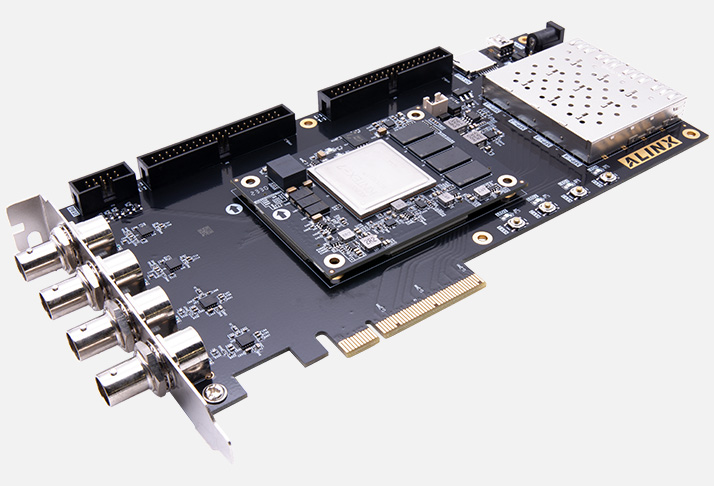

ALINX AMD Xilinx Kintex 7 XC7K325T development board AV7K300 7K325T

Product Description

The AV7K300 FPGA development board equipped with the AMD/Xilinx Kintex 7 series device, delivers standout performance with fast DDR3 SDRAM, QSPI Flash, PCIe, SFP+, SDI.

Provide high-speed communication (PCIe, SFP+) and video applications (SDI).

Applications

● High-speed signal transmission
● Video signal processing

Key Features

System-on-module
● AMD/Xilinx Kintex 7:
◆ Scalable, optimized architecture, comprehensive tools, IP, and development boards and kits
◆ The 28nm node achieves an excellent cost/performance/power balance
● Pluggable module with 4 x Panasonic board-to-board connectors
● 2 GByte (64-bit) DDR3 SDRAM
● 16 MB QSPI Flash

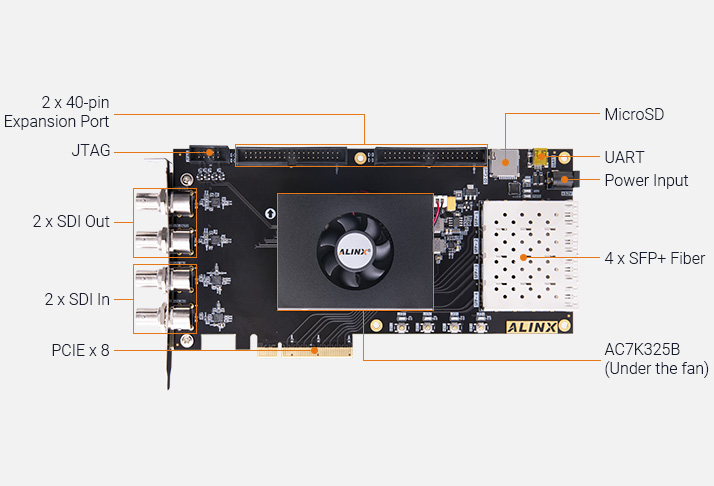

Base Board
● 1 x PCIe® Gen2 x 8
● 4 x SFP+ (per line 10Gbps)
● 4 x SDI (2 x SDI in + 2 x SDI out) (SDI can drive 4K@30P)
● 1 x UART (USB to UART)
● 2 x 40-pin Expansion Port (40 pin 2.54mm spacing, with 34 IOs, connected to ALINX modules such as binocular cameras, TFT LCD screens, high-speed AD modules, etc.)
● 1 x MicroSD
● LED (1 x PWR + 1 x RXD + 1 x TXD + 2 x LED) KEY (2 x KEY)
● 12V single supply
● Dimensions: 215 x 111 mm form factor

Product Information

Specifications
What's Inside

Board Features

Featuring the AMD/Xilinx Kintex 7 XC7K325T-2FFG900I

Design-in Kit – The Fast Way to the Market, to get started with development straight out of the box.
The ALINX FPGA development board help shorten time-to-market for any AMD/Xilinx Kintex 7 based application.

* The AV7K300 development board consists of a AC7K325B SoM and base board. If you want to purchase AC7K325B SoM separately.
Please check the Relevant Products at the bottom of the page and click to learn more details.

What's Inside the Box

ALINX AMD Xilinx Kintex 7 XC7K325T FPGA development board and Some accessories

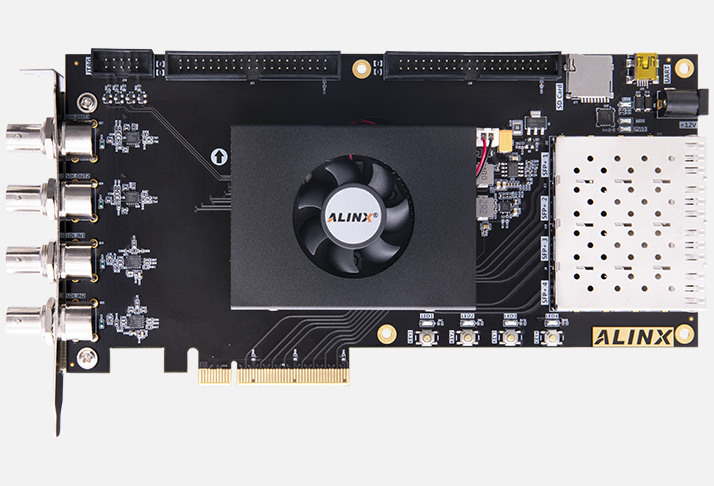

The FAN8060 Heatsink Kit is an optimal cooling solution for FPGA devices – it is low-profile and covers the whole XC7K325T device surface.

System-on-Module	1	Base Board	1
Mini USB Cable	1	USB Downloader Cable / set	1
12V Power Adapter	1	PCle Fence	1
Heatsink Kit (preinstalled)	1

Product Selection Matrix

Product Matrix

Product Model	Preferred Model	FPGA Devices	DDR3 SDRAM	QSPI Flash	USD Price
AV7K300	√	XC7K325T-2FFG900I	2 GB	16 MB	660

1. For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock.
2. We offer custom configuration, a MOQ applies.
Please contact us for more details.

We offer complete documentations and a lot of demos and tutorials.
Please contact us should you have any need.
