ALINX AMD Xilinx Kintex UltraScale XCKU060 FPGA SoM system-on-module

Overview

Product Description

The ACKU040/ACKU060 FPGA System-on-Module (SoM) combines high-end AMD Xilinx Kintex UltraScale™ series device with fast DDR4 SDRAM, dual parallel Quad-SPI Flash and thus forms a complete and powerful embedded processing system. This module is suitable for high-speed applications due to the high number of transceivers.

Applications

● 100G Packet processing for network and data center applications
● Medical imaging
● DSP-intensive processing required for heterogeneous wireless infrastructures

Key Features

● AMD/Xilinx Kintex Ultrascale :
◆ 20nm FPGA fabric
◆ Up to 1.5M system logic units with Gen2 3D ICsc
◆ 8.2 TeraMAC DSP Compute Performance
◆ Enhanced system logic unit packaging reduces dynamic power consumption● Pluggable module with 4 x Panasonic board-to-board connectors
● 4 GByte (64-bit) DDR4 SDRAM
● 2 x 16 MB QSPI Flash
● 3x PCIe® Gen3 x8
● Gigabit transceivers
◆ 20 x GTH, up to 16.3 Gbps● User I/Os
◆ 359 FPGA I/Os (104 3.3v + 255 1.8V)● Work temperature range of -40°C to +85°C
● 12V single supply
● Dimensions: 80 x 60 mm form factor

Product Information

Specifications
What's Inside

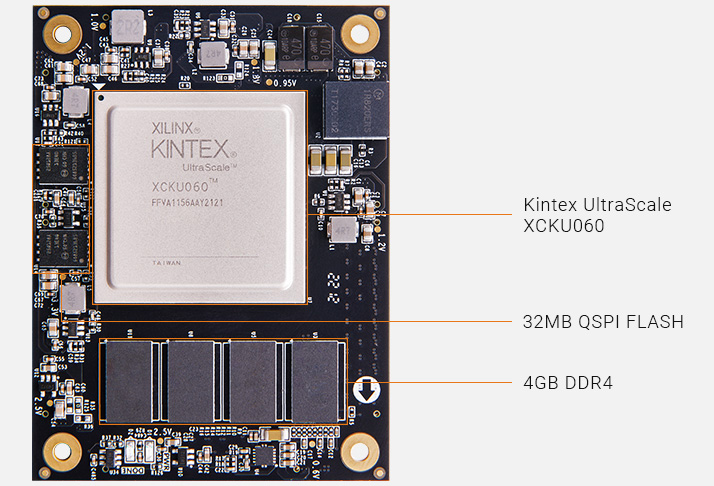

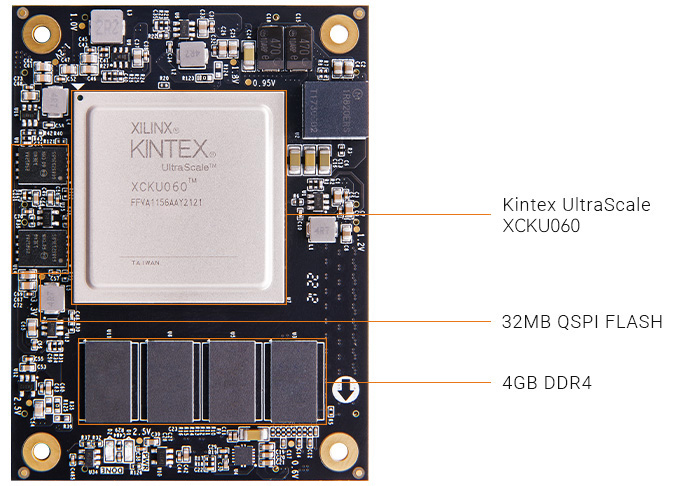

Module Features

Featuring the AMD/Xilinx Kintex Ultrascale XCKU060-2FFVA1156I

* If you want to design a base board based on this Kintex Ultrascale FPGA System-on-Module, you need to purchase AXK680337YG and AXK6A2337YG high-speed Board to Board Connectors, 80 Pins and 120 Pins, you also need to purchase FAN8060 Heatsink Kit, the FAN8060 Heatsink Kit is an optimal cooling solution for ALINX FPGA and modules – it is low-profile and covers the whole module surface.

* We have Kintex Ultrascale development boards AXKU062 that uses this Kintex Ultrascale module, to get started with development straight out of the box.

Please check the Relevant Products at the bottom of the page and click to learn more details.

What's Inside the Box

ALINX AMD Xilinx Kintex UltraScale™ XCKU060 FPGA System-on-Module/SoM

Kintex UltraScale SoM	1

Product Selection Matrix

Product Matrix

Product Model	Preferred Model	FPGA Devices	DDR4 SDRAM	QSPI Flash	GTH	Temp. Range	USD Price
ACKU095		XCKU095-2FFVA1156I	4 GB	32 MB	20	-40°C~+85°C	TBD
ACKU060	√	XCKU060-2FFVA1156I	4 GB	32 MB	20	-40°C~+85°C	924
ACKU040	√	XCKU040-2FFVB1156I	4 GB	32 MB	20	-40°C~+85°C	660
ACKU035		XCKU035-2FFVB1156I	4 GB	32 MB	16	-40°C~+85°C	TBD
ACKU025		XCKU025-2FFVA1156I	4 GB	32 MB	12	-40°C~+85°C	TBD

1. For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock.
2. We offer custom configuration, a MOQ applies.
Please contact us for more details.

We offer complete documentations and a lot of demos and tutorials.
Please contact us should you have any need.
