AXZ1063

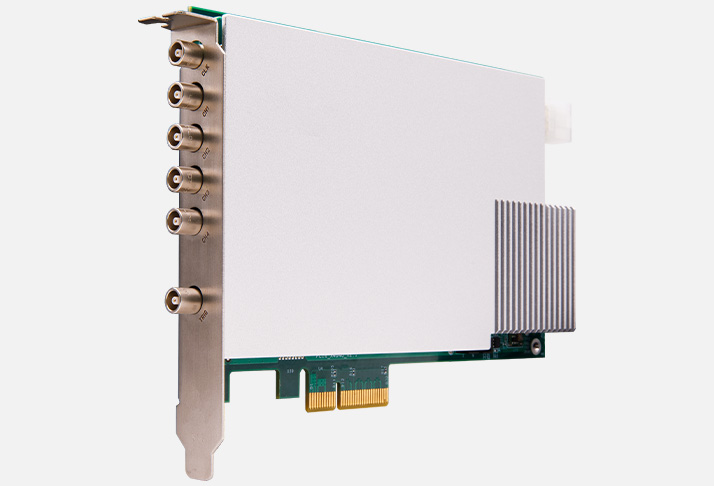

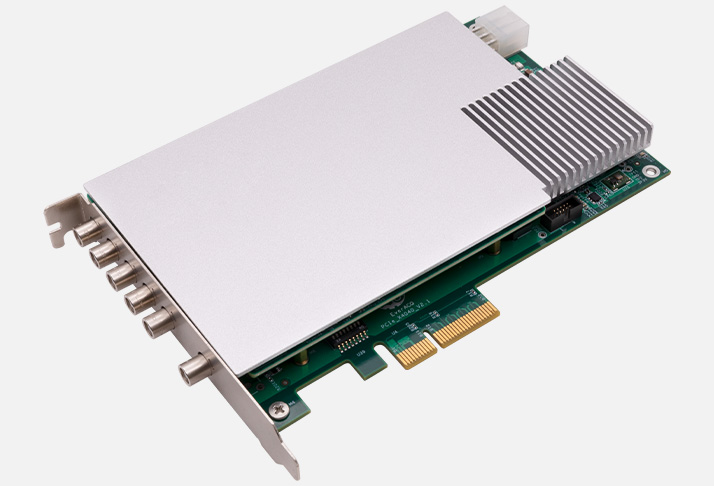

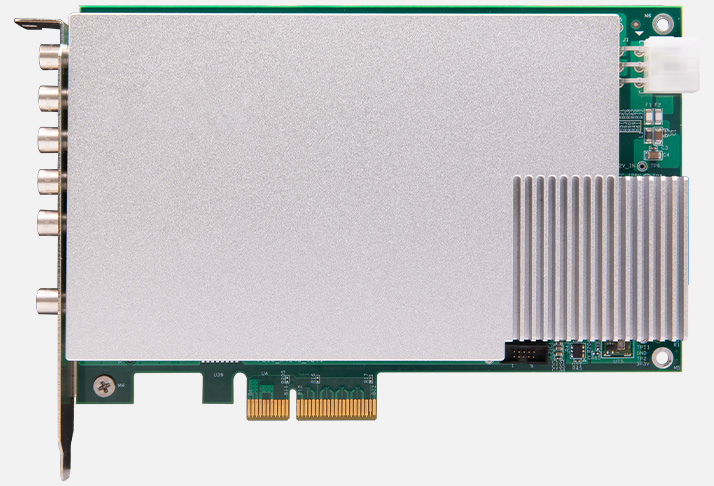

AXZ1063 100MSPS, 16-bit, 4-Channel High-Speed Digitizer

The AXZ1063 high-speed digitizer supports a 100MSPS sampling rate and 16-bit resolution. It utilizes high-speed, large-capacity data caching and high-speed data exchange technology, making it suitable for the precise capture of high-speed and transient signals. It can be used to build multi-channel, high-precision, synchronous acquisition systems.

Unit price

$ 4088

In stock:

＞1, ready to ship in 9 workdays

Order Contact

Overview

Product Description

Applications

● High-speed transient signal recording
● Wideband signal analysis
● IF signal acquisition
● Mass spectrometry
● Nuclear and particle physics experiments
● Scientific research and military industry
● Lidar echo acquisition

Technical Parameters

● Sampling Rate : 100 MSPS
● Resolution : 16-bit
● Number of Channels : 4 Channels
● Connector : LEMO
● Analog Bandwidth：55 MHz
● Coupling Mode：DC/AC Coupling, Software Selectable
● Input Impedance：50Ω / 1MΩ, Software Selectable
● Input Range：±1Vpp / ±2Vpp / ±10Vpp / ±20Vpp, Software Selectable
● Effective Number of Bits (ENOB) ：11.6-bit @ 20MHz
● External Trigger Input ：1 Channel, Analog Trigger, LEMO Connector
● External Clock Input ：1 Channel, 10MHz / 100MHz, Square / Sine Wave, LEMO Connector
● Bus Interface ：PCIe Gen2 x4
● On-board Cache ：1GB DDR3
● Power Consumption ：16.8W
● Operating Environment ：-20°C ~ +50°C, 10% ~ 90% RH, non-condensing
● Storage Temperature ：-30°C ~ +70°C
● Operating System ：Windows 10 64-bit, Linux
● Dimensions：PXIe 3U / 1 Slot, 20mm × 160mm × 111mm (W × D × H)

Product Information

Specifications
What's Inside

Board Features

The AXZ1063 digitizer supports 4 data acquisition channels, 1 external reference clock (please consult the manufacturer's customer service personnel if you need support for this type of clock source), and 1 external trigger input. The acquisition channels support online switching between 50Ω/1MΩ impedance matching, DC/AC coupling, and 1Vpp/2Vpp/10Vpp/20Vpp ranges

What's Inside the Box

AXZ1063 digitizer	1

Product Selection Matrix

Product Matrix

Product Model	Preferred Model	Sampling Rate	Resolution	Number of Channels	cache	USD Price
AXZ1063	√	100MSPS	16-bit	4	1GB DDR3	4088

1. For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock.
2. We offer custom configuration, a MOQ applies.
Please contact us for more details.

We offer complete documentations and a lot of demos and tutorials.
Please contact us should you have any need.
