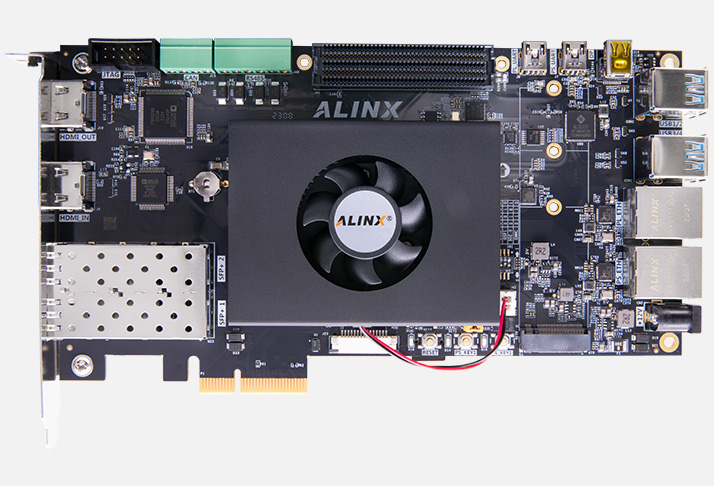

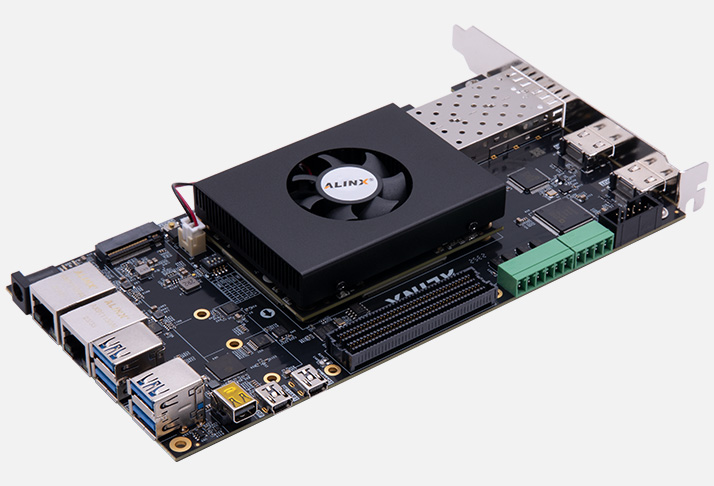

ALINX AMD Xilinx Zynq UltraScale+ MPSoC XCZU4EV development board

Overview

AXU4EVB-P Development Board & Kit with AMD Zynq™ UltraScale+ MPSoC XCZU4EV ZU4EV

Product Description

The AXU4EV/5EVB-P development board equipped with the AMD/Xilinx Zynq™ UltraScale+™ MPSoC-series device, delivers standout performance with fast DDR4 SDRAM, eMMC Flash, QSPI Flash, PCIe, FMC LPC, DP, HDMI, M.2, CAN, RS485.

Compatible with a multitude of FMC board (data acquisition, motor control, display camera interfaces, software defined radio), Provide high-speed communication (SFP+), high-speed storage (M.2) and video applications (DP, HDMI).

Applications

● Artificial Intelligence
● Automotive
● AV Broadcasting
● Deep learning
● Digital Signal Processing
● 5G Wireless and Wire Communication
● Data Centers
● Drive / Motion Control
● Industrial Internet of Thing
● Cloud Computing Security
● Machine Vision
● Medical Endoscop
● Video and Image Processing

Key Features

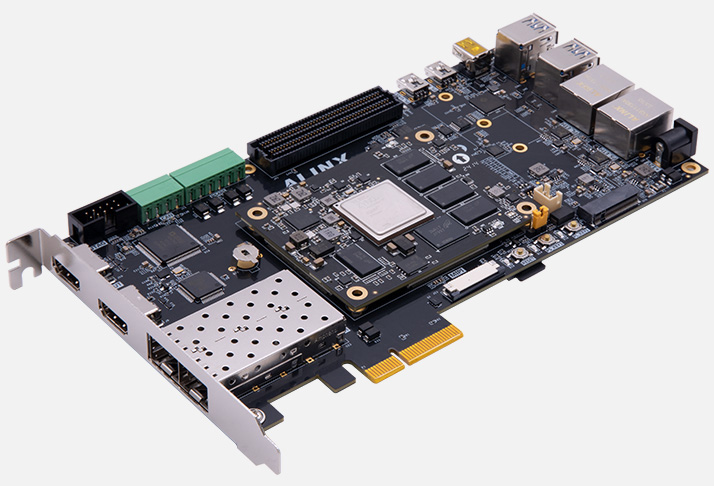

System-on-Module
● AMD/Xilinx Zynq™ Ultrascale+™ MPSoC:
◆ ARM® quad-core Cortex™-A53 up to 1.3 GHz
◆ ARM® dual-core Cortex™-R5 up to 533 MHz
◆ Mali-400MP2 GPU
◆ H.264 / H.265 Video Codec
◆ 16nm FinFET+ FPGA fabric
● Pluggable module with 4 x Panasonic board-to-board connectors
● 4 GByte (64-bit) DDR4 SDRAM on PS
● 1 GByte (16-bit) DDR4 SDRAM on PL
● 32 MB QSPI Flash
● 8 GB eMMC Flash

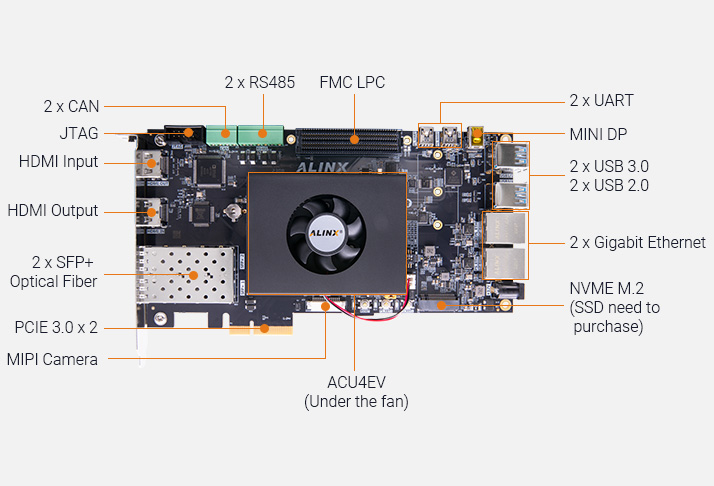

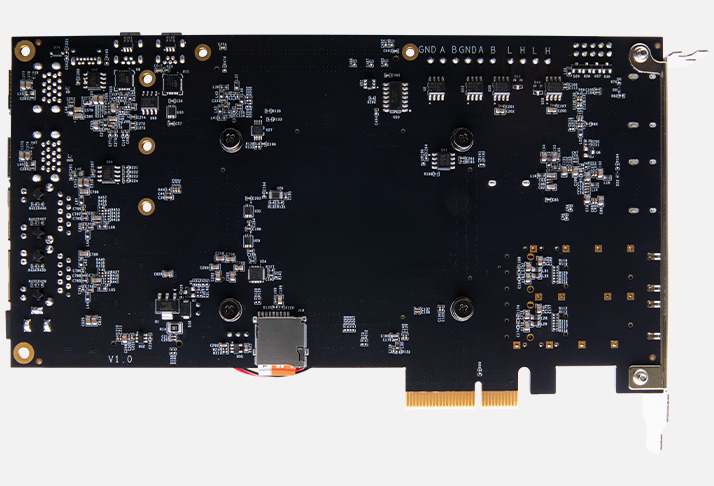

Base Board
● 1 x FMC LPC connector (36 pairs lvds ios 1.8V)
● 2 x SFP+ (per line 12.5Gbps)
● 2 x Gigabit Ethernet (1 x PS + 1 x PL)
● 1 x PCIe® Gen3 ×2
● 1 x M.2 Card slot on PS
● 2 x UART (1 x PS + 1 x PL)(USB to UART)
● 1 x DP Interface on PS
● 1 x 2 lane MIPI on PL
● 2 x CAN on PS
● 2 x RS485 Interfaces (1 x PS + 1 x PL)
● 2 x USB3.0 on PS + 2 x USB2.0 on PS
● EEPROM: 4-Kbit I2C Serial EEPROM + 1 x Temperature sensor (LM75)
● 2 x HDMI (1 x HDMI in + 1 x HDMI out)
● 1 x Micro SD
● 1 x RTC (Real-time clock)
● LED (1 x pwr + 1 x done + 1 x PL) + KEY (1 x RST + 1 x PS + 1 x PL)
● 12V single supply
● Dimensions: 225.81 x 106.65 mm form factor

Product Information

Specifications
What's Inside

Development Board Features

Featuring the AMD/Xilinx's Zynq™ UltraScale+™ MPSoC XCZU4EV-1SFVC784I Adaptive SoC

Design-in Kit – The Fast Way to the Market, to get started with development straight out of the box.
The ALINX development board help shorten time-to-market for any AMD/Xilinx Zynq™ UltraScale+™ MPSoC based application.

* The AXU4EVB-P development board consists of a ACU4EV SoM and base board. If you want to purchase ACU4EV SoM separately.
Please check the Relevant Products at the bottom of the page and click to learn more details.

What's Inside the Box

ALINX AMD Xilinx Zynq™ UltraScale+™ MPSoC XCZU4EV development board and Some accessories

The FAN8060 Heatsink Kit is an optimal cooling solution for ALINX FPGA and SoC modules – it is low-profile and covers the whole module surface.

System-on-Module	1	Base Board	1
Heatsink Kit (preinstalled)	1	USB Downloader Cable / set	1
12V Power Adapter	1	PCle Fence	1
Mini USB Cable	1	Card Reader	1
TF Card	1

Product Selection Matrix

Product Matrix

Product Model	Preferred Model	MPSoC	DDR4 ECC SDRAM (PS)	DDR4 SDRAM (PL)	QSPI Flash	eMMC Flash	GTR	USD Price
AXU4EVB-P	√	XCZU4EV-1SFVC784I	4 GB	1 GB	32 MB	8GB	4	885
AXU5EVB-P	√	XCZU5EV-2SFVC784I	4 GB	1 GB	32 MB	8GB	4	1004

1. For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock.
2. We offer custom configuration, a MOQ applies.
Please contact us for more details.

We offer complete documentations and a lot of demos and tutorials.
Please contact us should you have any need.
