ALINX AMD Xilinx Zynq UltraScale+ MPSoC XCZU9EG development board

Overview

AXU9EGB Development Board & Kit with AMD Zynq™ UltraScale+ MPSoC XCZU9EG ZU9EG

Product Description

The AXU9EGB/15EGB development board equipped with the AMD/Xilinx Zynq™ UltraScale+™ MPSoC-series device, delivers standout performance with fast DDR4 SDRAM, eMMC Flash, QSPI Flash, FMC HPC, DP, M.2.

Compatible with a multitude of FMC board (data acquisition, motor control, display camera interfaces, software defined radio), Provide high-speed communication (SFP+), high-speed storage (M.2) and video applications (DP).

Applications

● Artificial Intelligence
● Automotive
● AV Broadcasting
● Deep learning
● Digital Signal Processing
● 5G Wireless and Wire Communication
● Data Centers
● Drive / Motion Control
● Industrial Internet of Thing
● Cloud Computing Security
● Machine Vision
● Medical Endoscop
● Video and Image Processing

Key Features

System-on-Module
● AMD/Xilinx Zynq™ Ultrascale+™ MPSoC:
◆ ARM® quad-core Cortex™-A53 up to 1.3 GHz
◆ ARM® dual-core Cortex™-R5 up to 533 MHz
◆ Mali-400MP2 GPU
◆ 16nm FinFET+ FPGA fabric
● Pluggable module with 4 x Panasonic board-to-board connectors
● 4 GByte (64-bit) DDR4 SDRAM on PS
● 2 GByte (32-bit) DDR4 SDRAM on PL
● 64 MB QSPI Flash
● 8 GB eMMC Flash

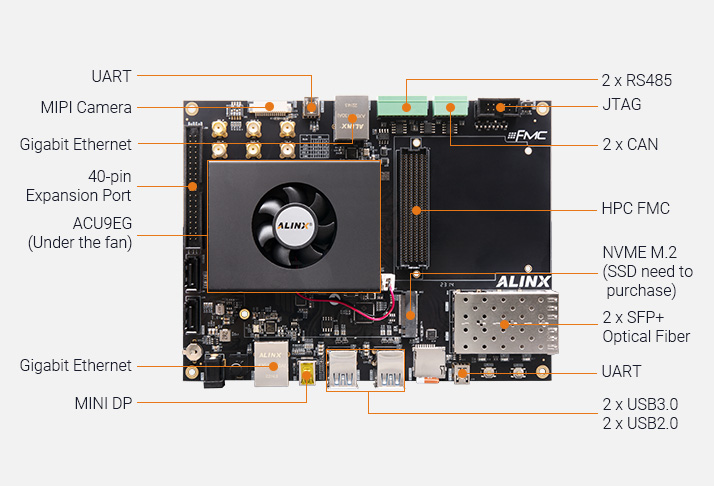

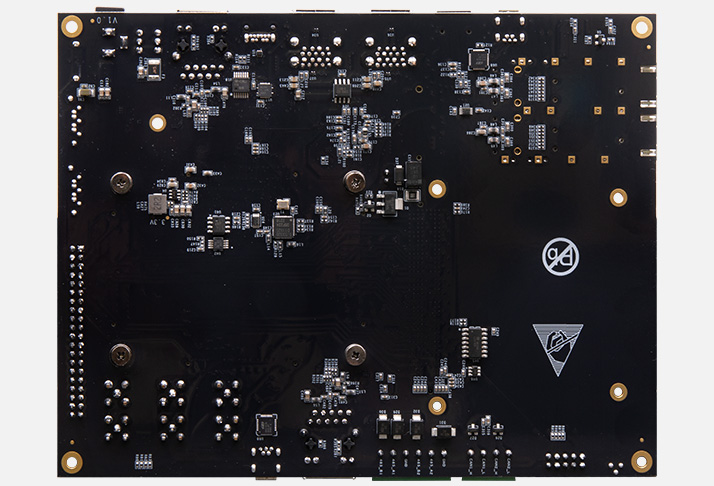

Base Board
● 1 x FMC HPC Connector (36 pairs lvds ios + 8 pairs GTH)
● 2 x SFP+ Slots (per line 12.5Gbps)
● 2 x Gigabit Ethernet (1 x PS + 1 x PL)
● 2 x UART (1 x PS + 1 x PL)(USB to UART)
● 1 x M.2 Interface on PS
● 1 x DP Interface on PS
● 1 x 2 lane MIPI on PL
● 2 x CAN on PS
● 2 x RS485 Interfaces (1 x PS + 1 x PL)
● 2 x USB3.0 on PS + 2 x USB2.0 on PS
● 1x 40-pin Expansion Port (40 pin 2.54mm spacing, with 34 IOs, connected to ALINX modules such as binocular cameras, TFT LCD screens, high-speed AD modules, etc.)
● EEPROM: 4-Kbit I2C Serial EEPROM + 1 x Temperature sensor (LM75)
● 1 x Micro SD
● 1 x RTC (Real-time clock)
● LED (1 x pwr + 1 x done + 1 x PL) + KEY (1 x RST + 1 x PS + 1 x PL)
● 12V single supply
● Dimensions: 180 x 135 mm form factor

Product Information

Specifications
What's Inside

Development Board Features

Featuring the AMD/Xilinx's Zynq™ UltraScale+™ MPSoC XCZU9EG-2FFVB1156I Adaptive SoC

Design-in Kit – The Fast Way to the Market, to get started with development straight out of the box.
The ALINX development board help shorten time-to-market for any AMD/Xilinx Zynq™ UltraScale+™ MPSoC based application.

* The AXU9EGB development board consists of a ACU9EG SoM and base board. If you want to purchase ACU9EG SoM separately.
Please check the Relevant Products at the bottom of the page and click to learn more details.

What's Inside the Box

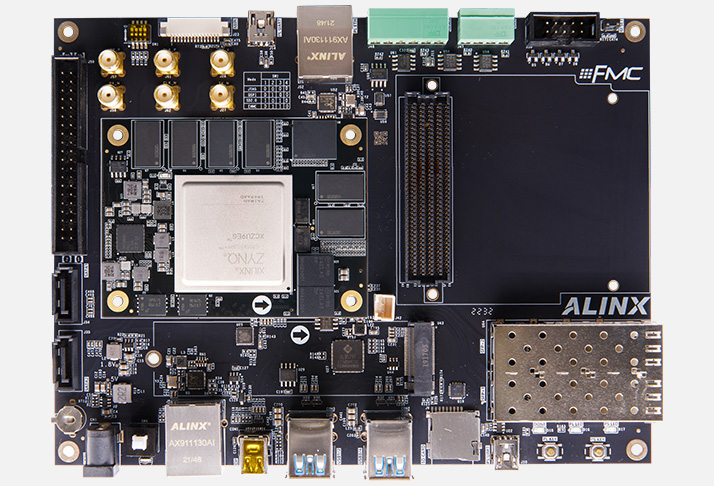

ALINX AMD Xilinx Zynq™ UltraScale+™ MPSoC XCZU9EG development board and Some accessories

The FAN8060 Heatsink Kit is an optimal cooling solution for ALINX FPGA and SoC modules – it is low-profile and covers the whole module surface.

System-on-Module	1	Base Board	1
Heatsink Kit (preinstalled)	1	USB Downloader Cable / set	1
12V Power Adapter	1	Acrylic board	1
Mini USB Cable	1	Card Reader	1
TF Card	1

Product Selection Matrix

Product Matrix

Product Model	Preferred Model	MPSoC	DDR4 ECC SDRAM (PS)	DDR4 SDRAM (PL)	QSPI Flash	eMMC Flash	GTR	GTH	USD Price
AXU9EGB	√	XCZU9EG-2FFVB1156I	4 GB	2 GB	64 MB	8GB	4	16	1506
AXU15EGB	√	XCZU15EG-2FFVB1156I	4 GB	2 GB	64 MB	8GB	4	16	1981

1. For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock.
2. We offer custom configuration, a MOQ applies.
Please contact us for more details.

We offer complete documentations and a lot of demos and tutorials.
Please contact us should you have any need.
