ALINX AMD Xilinx Zynq UltraScale+ MPSoC XCZU9EG SoM system-on-module

Overview

Product Description

The ACU9EG/15EG System-on-Chip (SoC) System-on-Module (SoM) combines high-end AMD/Xilinx Zynq™ UltraScale+™ MPSoC-series device with fast DDR4 SDRAM, eMMC Flash, dual parallel Quad-SPI Flash and thus forms a complete and powerful embedded processing system.

Applications

● Artificial Intelligence
● Automotive
● AV Broadcasting
● Deep learning
● Digital Signal Processing
● 5G Wireless and Wire Communication
● Data Centers
● Drive / Motion Control
● Industrial Internet of Thing
● Cloud Computing Security
● Machine Vision
● Medical Endoscop
● Video and Image Processing

Key Features

● AMD/Xilinx Zynq™ Ultrascale+™ MPSoC:
◆ ARM® quad-core Cortex™-A53 up to 1.3 GHz
◆ ARM® dual-core Cortex™-R5 up to 533 MHz
◆ Mali-400MP2 GPU
◆ 16nm FinFET+ FPGA fabric● Pluggable module with 4 x Panasonic board-to-board connectors
● 4 GByte (64-bit) DDR4 SDRAM on PS
● 2 GByte (32-bit) DDR4 SDRAM on PL
● 64 MB QSPI Flash
● 8 GB eMMC Flash
● PCIe® Gen2 ×16 (PS)
● Gigabit transceivers
◆ 4 x GTR, up to 6 Gbps
◆ 16 x GTH, up to 12.5 Gbps
● User I/Os
◆ 54 PS MIOs
◆ 162 FPGA I/Os (66 HD + 96 HP)● Work temperature range of -40°C to +85°C
● 12V single supply
● Dimensions: 80 x 60 mm form factor

Product Information

Specifications
What's Inside

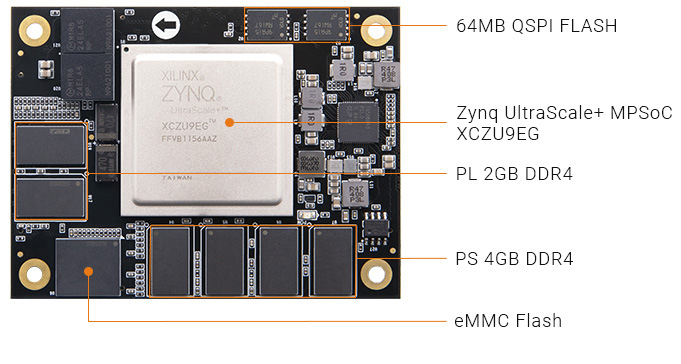

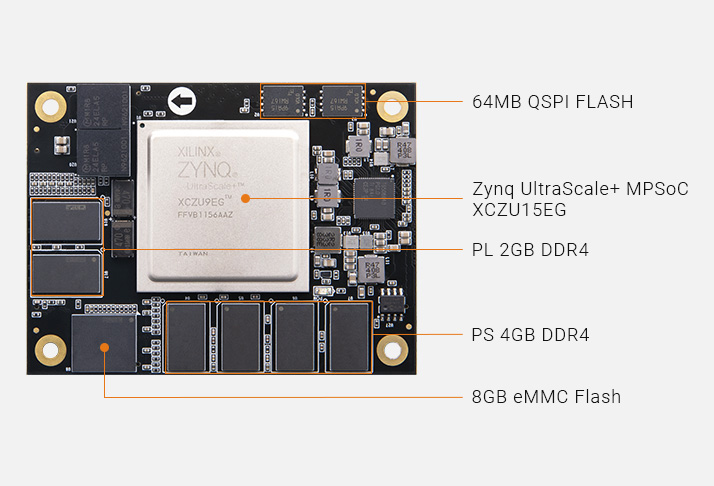

Module Features

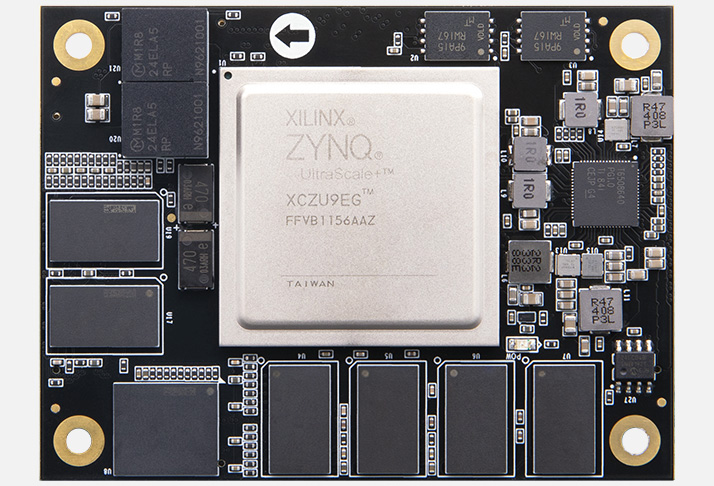

Featuring the AMD/Xilinx Zynq™ UltraScale+™ MPSoC XCZU9EG-2FFVB1156I

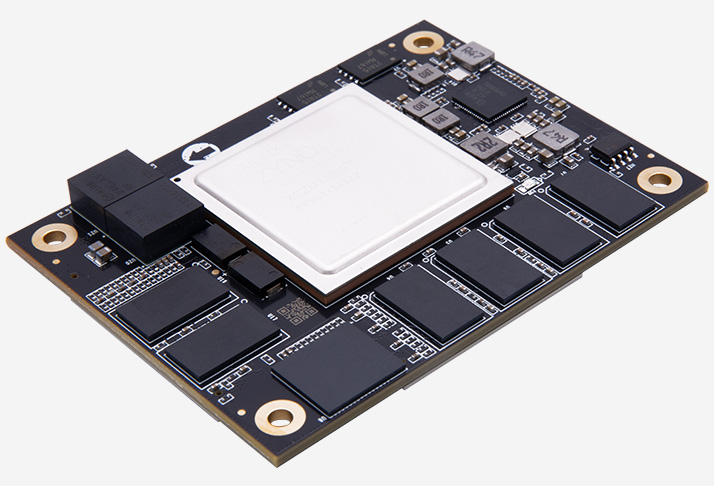

AMD Zynq™ UltraScale+™ MPSoC XCZU9EG SOM module ACU9EG ZU9EG

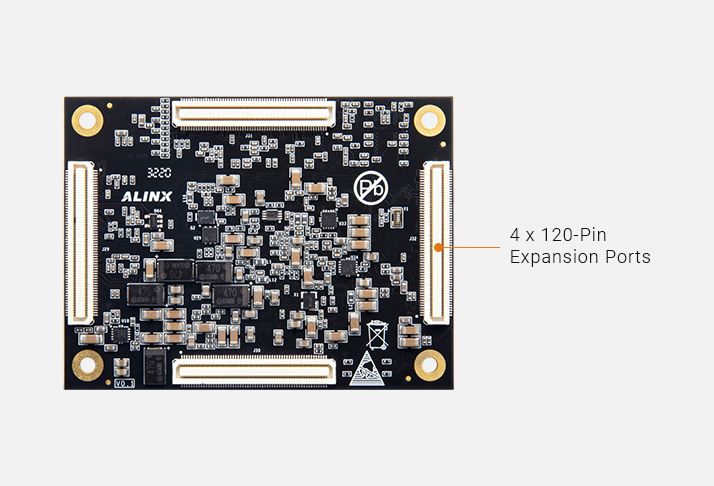

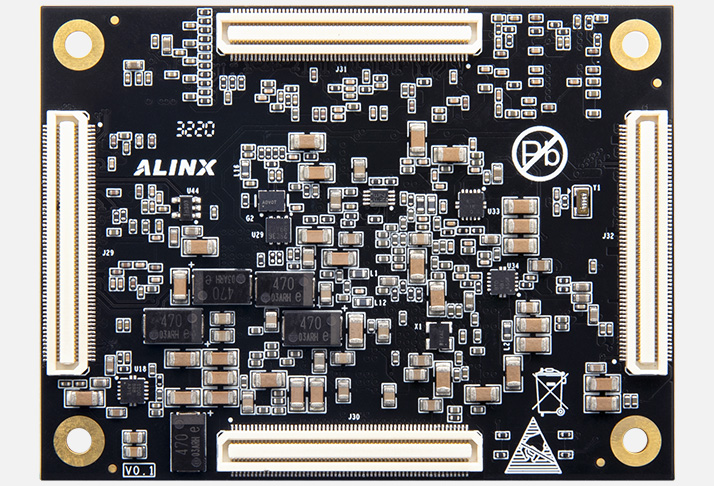

* If you want to design a base board based on this Zynq™ UltraScale+™ MPSoC System-on-Module, you need to purchase AXK6A2337YG high-speed Board to Board Connectors, 120 Pins, you also need to purchase FAN8060 Heatsink Kit, the FAN8060 Heatsink Kit is an optimal cooling solution for ALINX FPGA and SoC modules – it is low-profile and covers the whole module surface.

* We have Zynq™ UltraScale+™ MPSoC development boards AXU9EGB that uses this Zynq™ UltraScale+™ MPSoC module, to get started with development straight out of the box.

Please check the Relevant Products at the bottom of the page and click to learn more details.

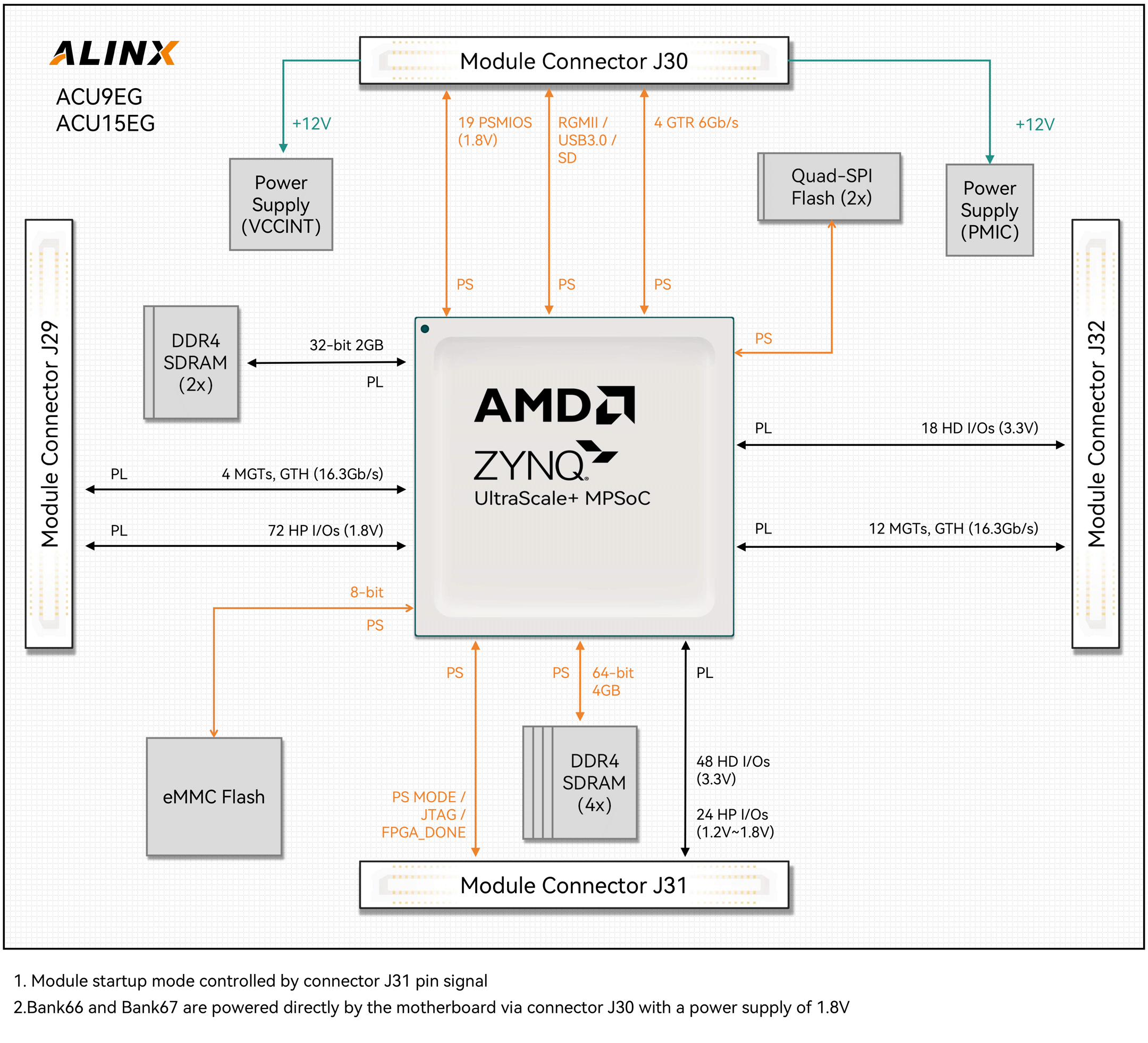

Module Architecture

AMD xilinx Zynq UltraScale+ MPSoC XCZU9EG SOM module, ACU9EG, system-on-chip, SoC, system-on-module

Click on the image to view a larger image.

Not all features are available simultaneously – please check the documentation for any applicable constraints.

All specifications are subject to change without notice. Please verify component specifications with vendor's datasheets.

ALINX provides product user manuals for each product.

What's Inside the Box

ALINX AMD Xilinx Zynq™ UltraScale+™ MPSoC XCZU9EG System-on-Module/SoM

MPSoC SoM	1

Product Selection Matrix

Product Matrix

Product Model	Preferred Model	MPSoC	DDR4 SDRAM (PS)	DDR4 SDRAM (PL)	QSPI Flash	eMMC	GTR	GTH	Temp. Range	USD Price
ACU6CG		XCZU6CG-2FFVB1156I	4 GB	2 GB	64 MB	8GB	4	16	-40°C~+85°C	TBD
ACU6EG		XCZU6EG-2FFVB1156I	4 GB	2 GB	64 MB	8GB	4	16	-40°C~+85°C	TBD
ACU9EG	√	XCZU9EG-2FFVB1156I	4 GB	2 GB	64 MB	8GB	4	16	-40°C~+85°C	1057
ACU15EG	√	XCZU15EG-2FFVB1156I	4 GB	2 GB	64 MB	8GB	4	16	-40°C~+85°C	1585

1. For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock.
2. We offer custom configuration, a MOQ applies.
Please contact us for more details.

We offer complete documentations and a lot of demos and tutorials.
Please contact us should you have any need.
