The FL1042 is a 20-channel CAN FD (Controller Area Network with Flexible Data-Rate) communication module designed for high-speed, high-reliability data transmission. It connects to external signals via a DB44 female header connector and supports jumper-configurable termination resistors for CAN FD buses
Unit price
$ 1391

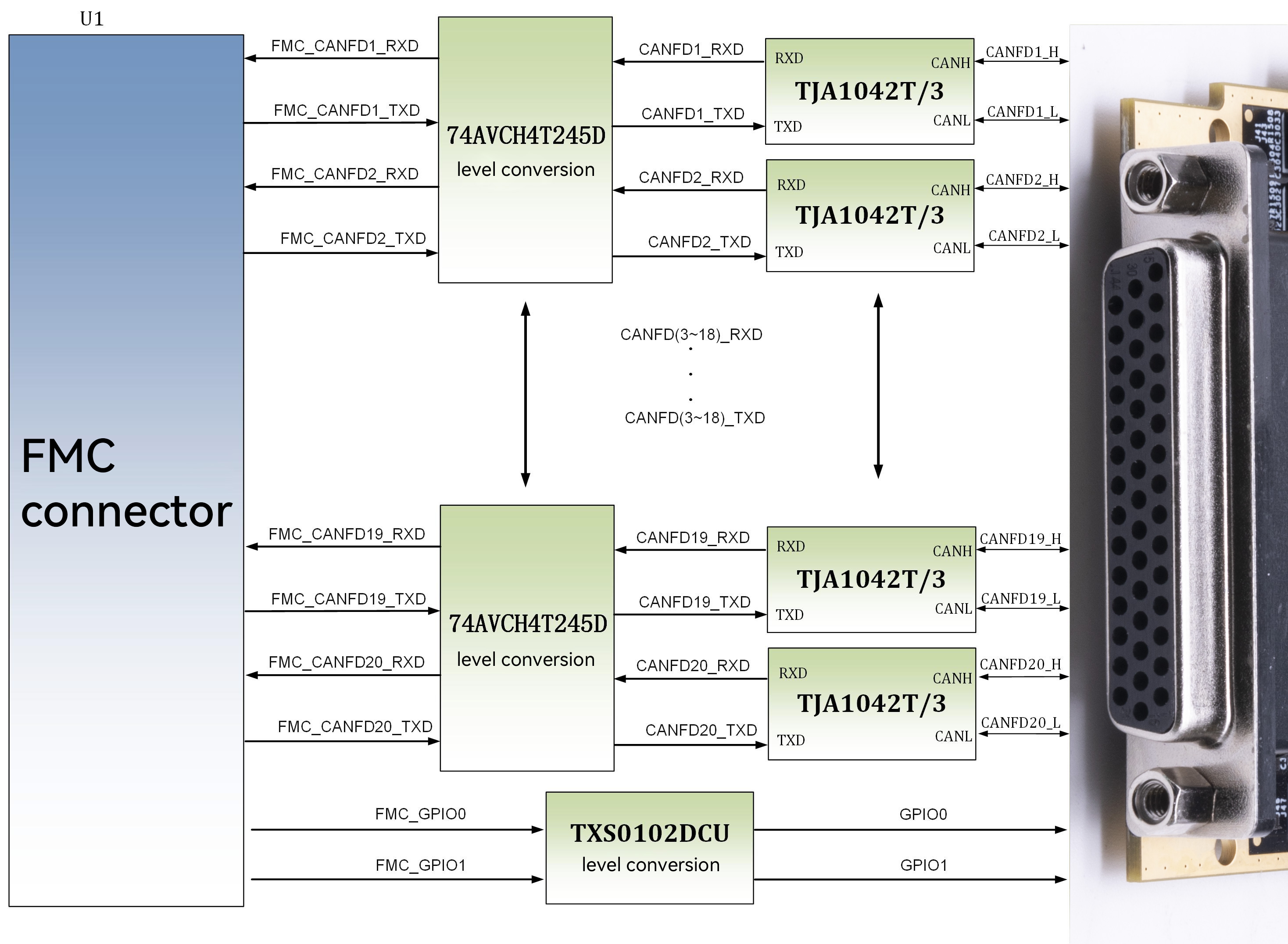

The FL1042 is a 20-channel CAN FD (Controller Area Network with Flexible Data-Rate) communication module designed for high-speed, high-reliability data transmission. It connects to external signals via a DB44 female header connector and supports jumper-configurable termination resistors for CAN FD buses
FL1042 has a standard FMC LPC interface that can be connected to the ALINX FPGA carrier board for use.
● FMC LPC connector
● Channels: 20 CAN FD
● Connector: DB44 female header
● Chipset: NXP TJA1042T/3/1J
● Dimensions: 76.5x 69 mm form factor

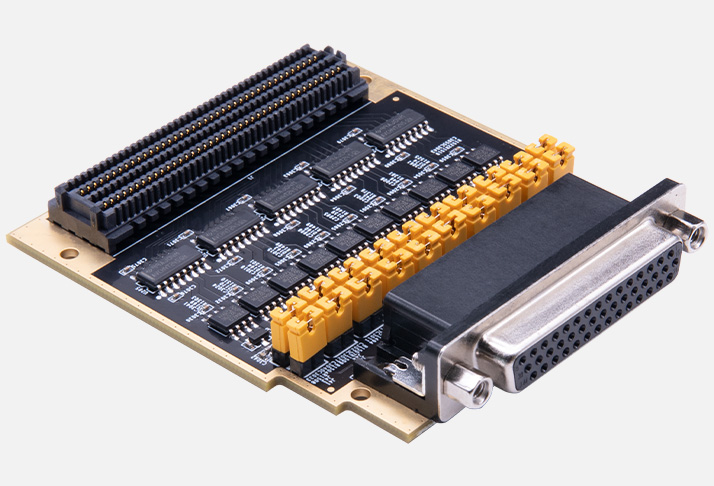

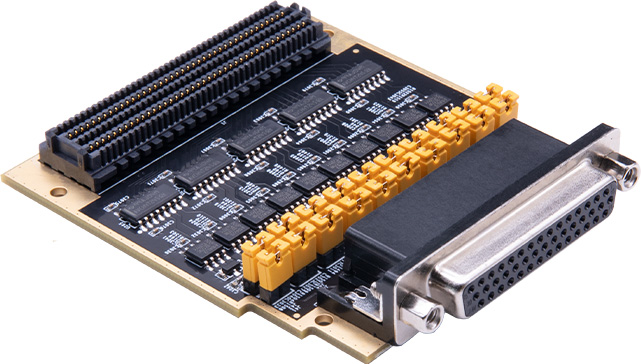

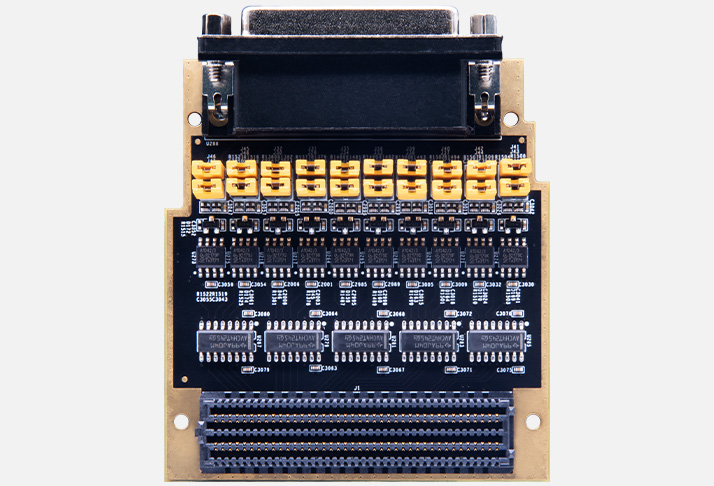

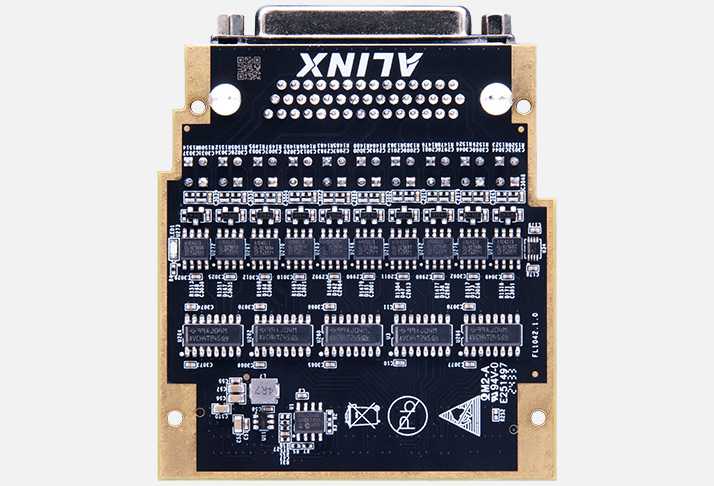

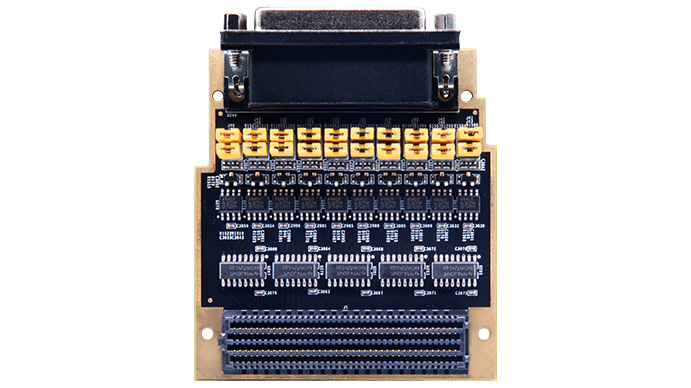

Click on the image to view a larger image.
Not all features are available simultaneously – please check the documentation for any applicable constraints.
All specifications are subject to change without notice. Please verify component specifications with vendor's datasheets.
ALINX provides product user manuals for each product.
| FMC Cards | 1 |
|---|
| Product Model | USD Price |
|---|---|
| FL1042 | 1391 |
