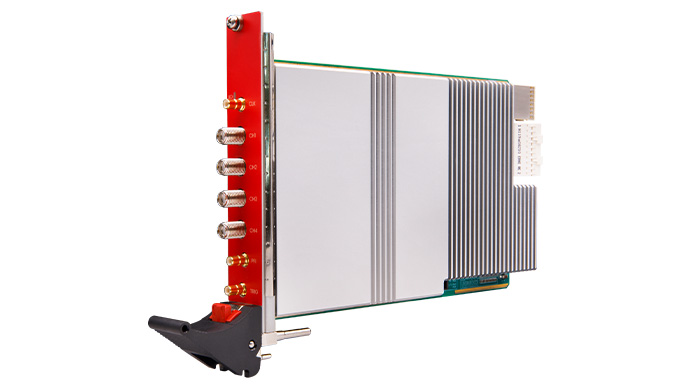

AXZ1073 1GSPS 16 bit 4-channel high-speed digitizer

Overview

Product Description

AXZ1073 high-speed digitizer, with a 1 GSPS sampling rate and 16-bit resolution, utilizes high-speed, large-capacity data caching and high-speed data exchange technology. It is ideal for the precise capture of high-speed and transient signals, and can be used to build multi-channel, high-precision, synchronous acquisition systems.

Applications

● High-speed transient signal recording
● Wideband signal analysis
● IF signal acquisition
● Mass spectrometry
● Nuclear and particle physics experiments
● Scientific research and military industry
● Lidar echo acquisition

Technical Parameters

● Sampling Rate : 1GSPS
● Resolution : 16-bit
● Number of Channels : 4 Channels
● Connector : SMA
● Analog Bandwidth：DC - 200 MHz
● Coupling Mode：DC Coupling
● Input Impedance：50 Ω
● Input Range：1 Vpp / 2 Vpp, software selectable
● Effective Number of Bits (ENOB) ：10.8 bits @ 10 MHz
● Synchronization (Inter-channel Skew) ：< 10 ps (RMS)
● Operating Modes ：Trigger Mode, Streaming Mode
● Trigger Modes：Single Trigger, Positive Edge Trigger, Auto Trigger
● Trigger Sources：Channel Self-Trigger, Force Trigger, External Trigger, System Trigger
● External Trigger Input：1 channel, analog trigger, SMB connector
● External Clock Input：1 channel, 10 MHz / 100 MHz, Square / Sine wave, SMB connector
● Clock Source：Internal Clock, External Clock, System Synchronization Clock
● PFI (Programmable Function Interface)：General-purpose bidirectional I/O; 1 channel, SMB connector
● Bus：PCIe Gen3 x8
● On-board Memory ：4 GB DDR4
● Power Consumption：27 W
● Operating Environment：-20 ℃ to +50 ℃, 10% to 90% RH (non-condensing)
● Storage Temperature ：-30 ℃ to +70 ℃
● Dimensions：20mm × 100mm × 160mm (W × D × H)
● Operating System ：Windows 7 and above (32/64-bit); Linux 64-bit

Product Information

Specifications
What's Inside

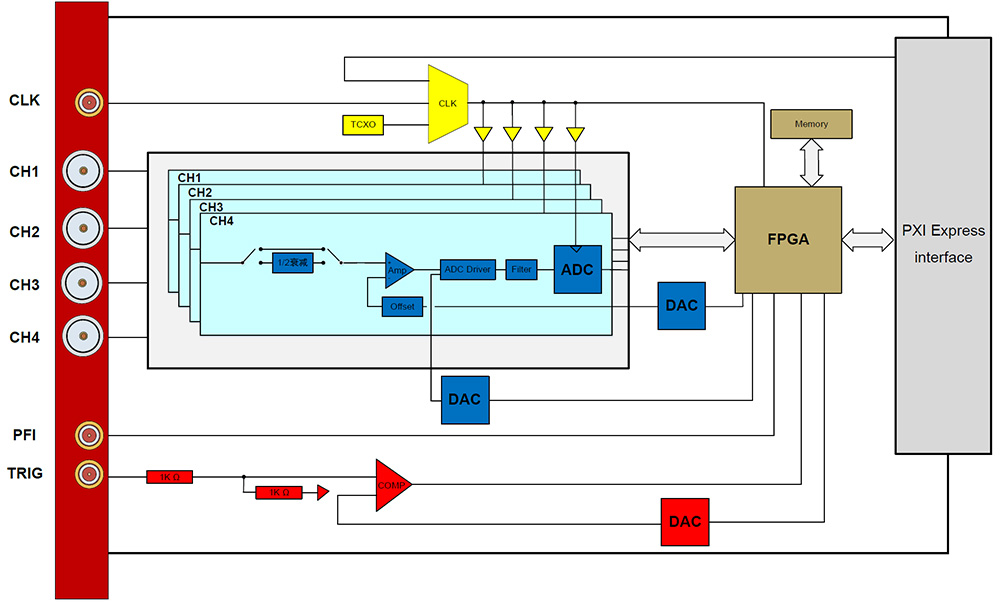

Functional Block Diagram

The AXZ1073 digitizer supports 4 data acquisition channels, 1 external reference clock (please consult the manufacturer's customer service personnel if you need support for this type of clock source), 1 external trigger input, and 1 general bidirectional I/O. The acquisition channels have a 50Ω input impedance, DC coupling, and support online switching between 1Vpp/2Vpp ranges

What's Inside the Box

AXZ1073 digitizer	1

Product Selection Matrix

Product Matrix

Product Model	Preferred Model	Sampling Rate	Resolution	Number of Channels	DDR4 SDRAM	USD Price
AXZ1073	√	1GSPS	16-bit	4	4GB	10221

1. For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock.
2. We offer custom configuration, a MOQ applies.
Please contact us for more details.

We offer complete documentations and a lot of demos and tutorials.
Please contact us should you have any need.
