ALINX AMD Xilinx Zynq UltraScale+ RFSoC XCZU67DR ACRF67 FPGA SoM System-on-Module for Single-Chip Adaptable Radio Platform development, Software Defined Radio, Digital Signal Processing, Satellite Radar

Overview

Product Description

The ACRF67 System-on-Module (SoM) integrates the high-performance AMD Xilinx Zynq UltraScale+ RFSoC ZU67DR with high-speed DDR4 memory and QSPI Flash, forming a complete embedded processing system. This module combines programmable logic, multi-core ARM processors, and integrated RF data converters, providing a hardware-verified platform for prototyping high-performance wireless systems and enabling direct RF signal acquisition and analysis.

Applications

● 5G FR1/FR2 RF and baseband
● phased array system
● Radar system
● Software radio
● Spectrum monitoring
● Medical system

Key Features

● AMD/Xilinx Zynq™ Ultrascale+™ RFSoC ZU67DR: ◆ ARM® quad-core Cortex™-A53 up to 1.333GHz
◆ ARM® dual-core Cortex™-R5F up to 533MHz
◆ 16nm FinFET+ FPGA fabric
◆ Hardened DFE (Digital Front-End) with integrated RF-ADC and RF-DAC● RF Data Converters : ◆ 8× 14-bit RF-ADC (up to 5.0 GSPS)
◆ 8× 14-bit RF-DAC (up to 10 GSPS● High-Speed Transceivers :◆ 8 x PL GTY, up to 28.21 Gbps
◆ 4 x PS-GTR, up to 6 Gbps
● Memory : ◆ 4 GB (64-bit) DDR4 SDRAM on PS
◆ 2 GB (32-bit) DDR4 SDRAM on PL
◆ 128 MB QSPI Flash● Pluggable module with 2×400-pin Samtec board-to-board connectors
● Work temperature range of -40°C to +85°C
● 5V single supply
● Dimensions: 115 x 85 mm form factor

Product Information

Specifications
What's Inside

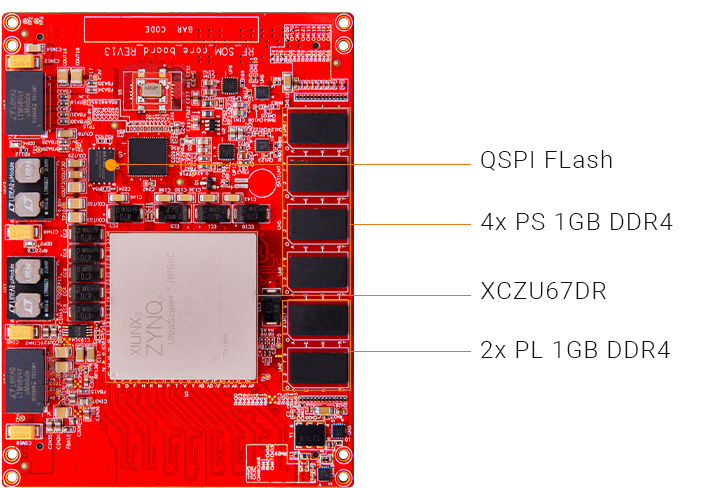

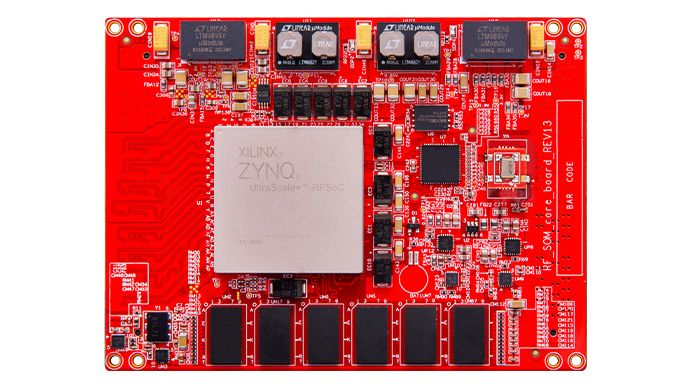

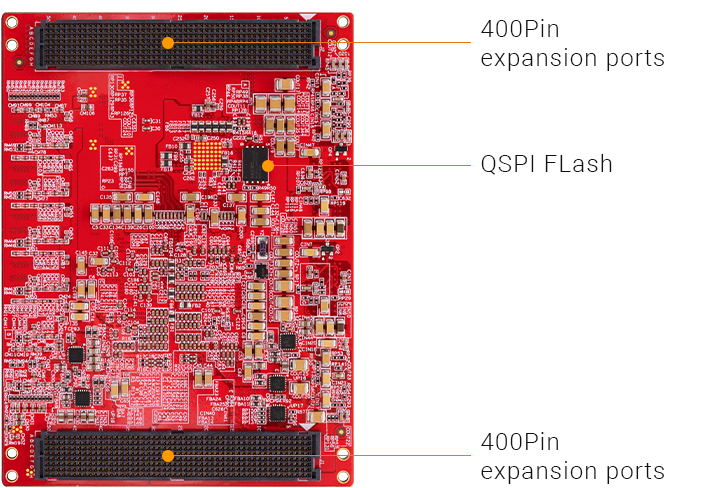

Module Features

Featuring the AMD/Xilinx Zynq™ UltraScale+™ RFSoC XCZU67DR-2FFVE1156I

* We have Zynq™ UltraScale+™ RFSoC development boards AXRF67 that uses this Zynq™ UltraScale+™ RFSoC module, to get started with development straight out of the box.

Please check the Relevant Products at the bottom of the page and click to learn more details.

What's Inside the Box

ALINX AMD Xilinx Zynq™ UltraScale+™ RFSoC XCZU67DR System-on-Module/SoM

RFSoC SoM	1

Product Selection Matrix

Product Matrix

Product Model	Preferred Model	FPGA Devices	DDR4 ECC SDRAM (PS)	DDR4 SDRAM (PL)	QSPI Flash	GTR	GTY	Temp. Range	USD Price
ACRF47	√	XCZU47DR-2FFVE1156I	4 GB	2 GB	128MB	4	8	-40°C~+85°C	11820
ACRF42		XCZU42DR-2FFVE1156I	4 GB	2 GB	128MB	4	8	-40°C~+85°C	TBD
ACRF43		XCZU43DR-2FFVE1156I	4 GB	2 GB	128MB	4	8	-40°C~+85°C	TBD
ACRF67	√	XCZU67DR-2FFVE1156I	4 GB	2 GB	128MB	4	8	-40°C~+85°C	8344

1. For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock.
2. We offer custom configuration, a MOQ applies.
Please contact us for more details.

We offer complete documentations and a lot of demos and tutorials.
Please contact us should you have any need.
