AN5642

AN5642 5MP Binocular Camera Module OV5640

Use on SoC & FPGA development boards

Unit price

$ 58
Order Contact

Overview

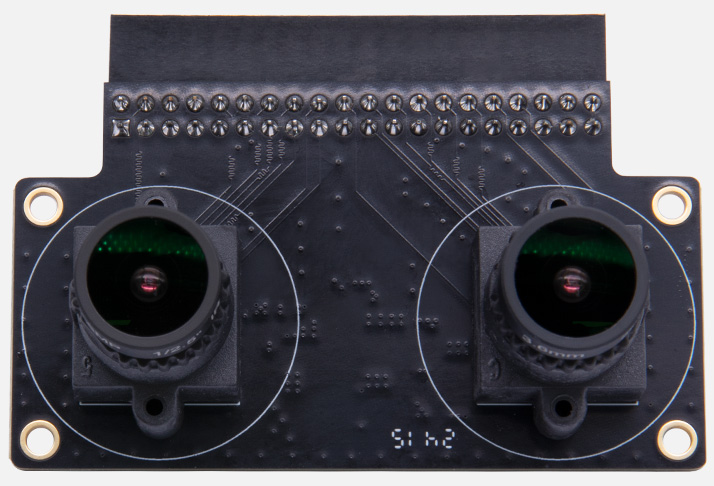

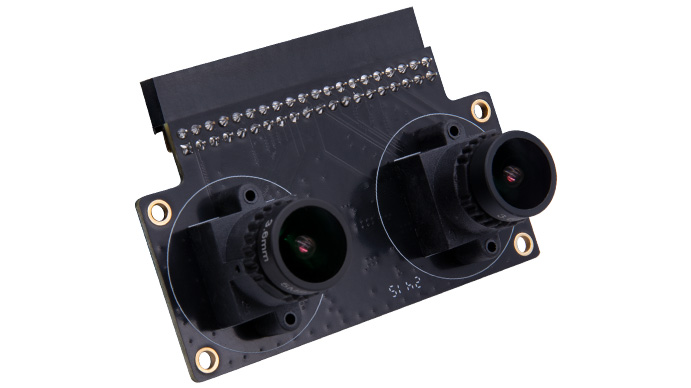

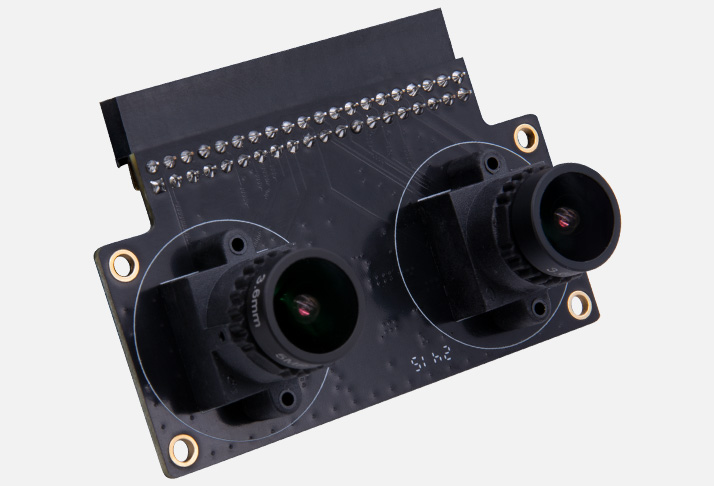

ALINX AN5642 5MP Binocular Camera Module OV5640

Product Description

The AN5642 camera module adopts two OmniVision CMOS chip image sensors OV5640, supporting two independent or simultaneous display functions. The CMOS OV5640 chip supports DVP and MIPI interfaces, and on the OV5642 module, image transmission is achieved through a DVP interface and FPGA connection.

Product Information

Parameter Description

  • ● Photosensitive chip: 2 x OV5640
    ● Sensitivity size: 1/4 "
    ● Pixel: hardware pixel 500W
    ● Image format: RAW RGB, RGB565/555/444,CCIR656, YUV422/420, YCbCr422 and compression
    ● Capture images: QSXGA(2592x1944), 1080p, 1280x960, VGA(640x480), QVGA(320x240)
    ● Function support: manual focusing, automatic exposure control (AEC), automatic white balance (AWB)

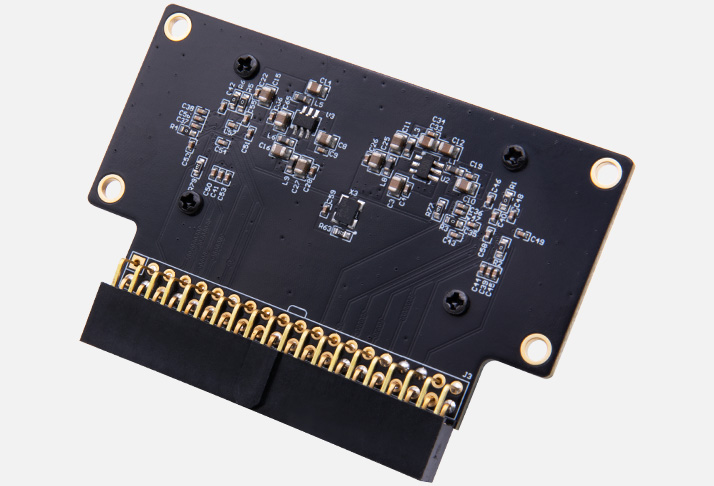

  • ● Module content: including OV5640 power circuit and clock
    ● Interface: 40 pin female socket, 2-way cameras use separate DVP interfaces
    ● Spacing: The distance between two cameras is 40mm
    ● Working temperature: -30~70 ℃, stable working temperature is 0~50 ℃
    ● Dimensions: 70 x 40 mm form factor

What's Inside the Box

AN56421


Product Selection Matrix

Product Matrix

Product Model

USD Price

AN564258
