AN706

AN706 16bit 200ksps Synchronous Sampling AD7606 AD Module

Use on SoC & FPGA development boards

Unit price

$ 29

Overview

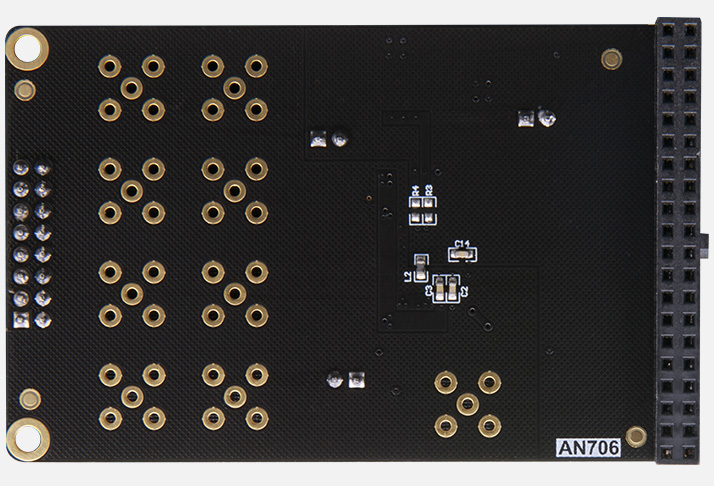

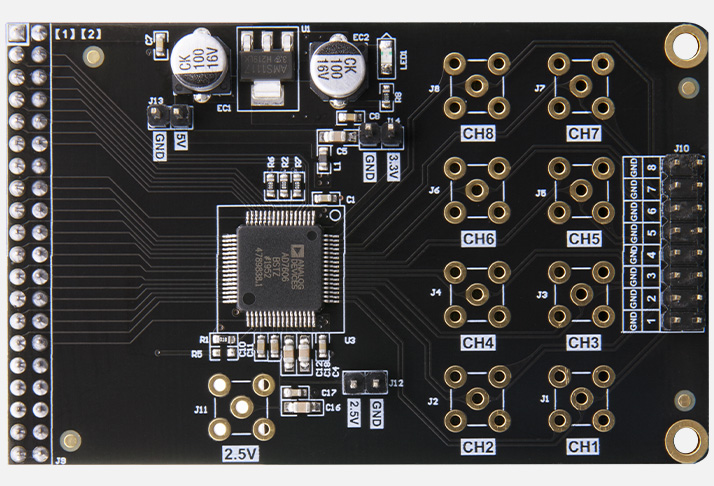

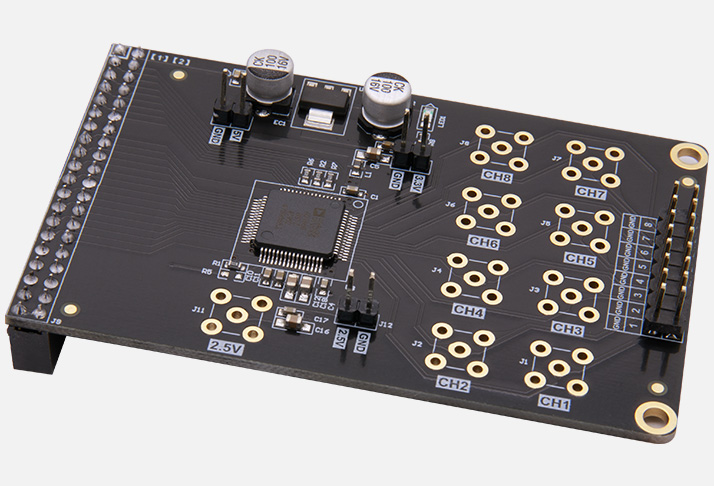

AN706 16bit 200ksps Synchronous Sampling AD7606 AD Module

Product Description

AN706 is an integrated 8-channel synchronous sampling data acquisition system, which integrates an input amplifier, overvoltage protection circuit, second-order analog anti aliasing filter, analog multiplexer, 16 bit 200 kSPS SAR ADC, and a digital filter. It also includes a 2.5V reference voltage source, reference voltage buffer, and high-speed serial communication 4 parallel interfaces.

Product Information

Parameter Description

  • ● Chip Model: AD7606
    ● Number of Bits: 16bit
    ● Number of Channels: 8 Channels
    ● Sampling Rate: Up to 200KSPS
  • ● Input Range: -5V to 5V
    ● Input interface: 2 x BNC interface
    ● Module interface: 40 pin 2.54mm spacing row seat
    ● Working Temperature: -40°C to 85°C
    ● Dimensions: 81 x 51mm form factor

What's Inside the Box

AN7061


Product Selection Matrix

Product Matrix

Product Model

USD Price

AN70629
