C8201

C8201 8M in car GMSL camera module OX08B40

The C8201 series car camera meets the performance requirements of automotive standards and has high-quality image effects that have been professionally debugged; And equipped with M12 car mounted lens, the module as a whole can achieve IP67 protection level

Unit price

$ 449

Overview

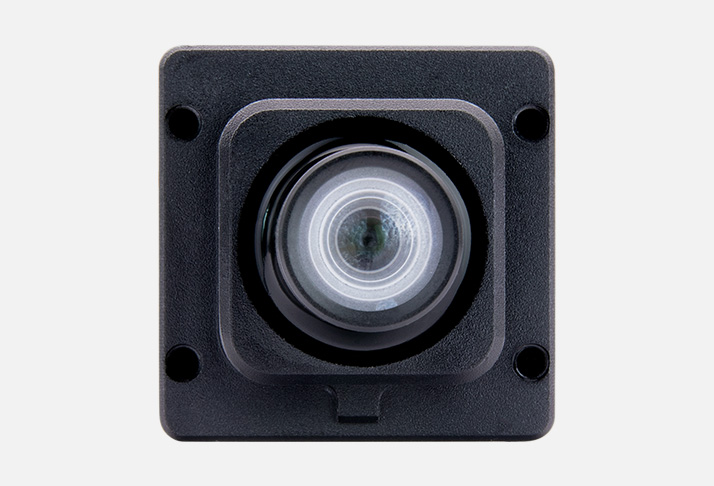

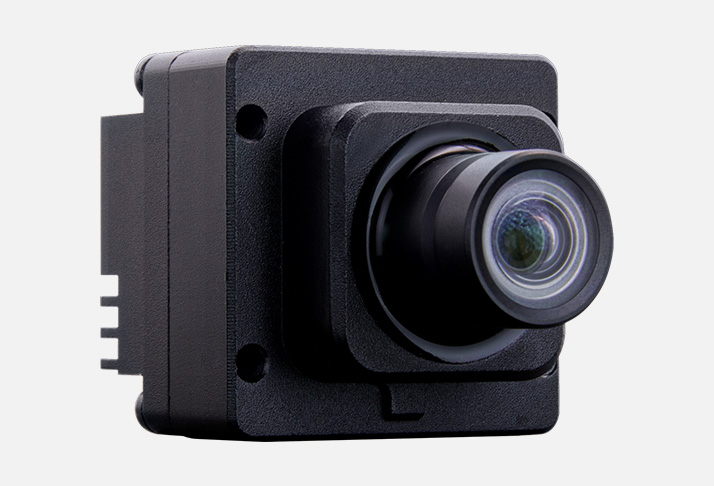

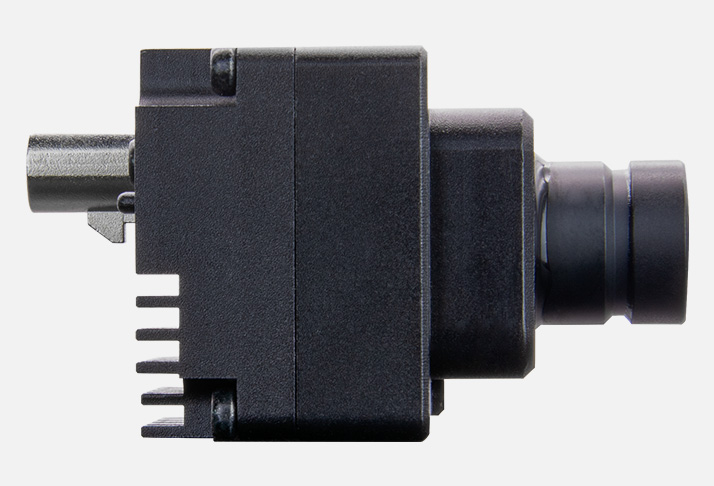

ALINX C8201 8M in car GMSL camera module OX08B40

Product Description

The C8201 camera module is developed and designed using OV CMOS image sensor OX08B40, and Maxim GMSL2 serializer MAX9295A. It meets the standards of vehicle performance and has high-quality image effects that have undergone professional image debugging; And equipped with M12 car mounted lenses, the overall module can achieve IP67 protection level

Product Information

Parameter Description

  • ● Photosensitive chip: OX08B40
    ● ISP chip: OAX4000
    ● Frame rate: 3840x2160 @30fps
    ● Exposure mode: Rolling Shutter
    ● Color Mode: RGB
    ● Dynamic Range: 120dB
    ● Output format: YUV422
    ● Serializer: MAX9295A
    ● communication protocol: GMSL2.0
    ● connector: mini FAKRA
    ● Fov: 120 ° (determined by the lens)
    ● operation temperature: -40℃ ~ 85℃
    ● working voltage: 4V~17V
    ● Current: <200mA@12VDC
  • ● Vertical field of view: 55°
    ● Horizontal field of view: 120.2°
    ● Diagonal field of view: 126.5°
    ● Aperture: 1.6
    ● Focal length: 8.3mm
    ● Maximum optical distortion: 54.7%
    ● Waterproof level: IP67
    ● Process specifications: M12

What's Inside the Box

C82111


Product Selection Matrix

Product Matrix

Product Model

USD Price

C8211449
