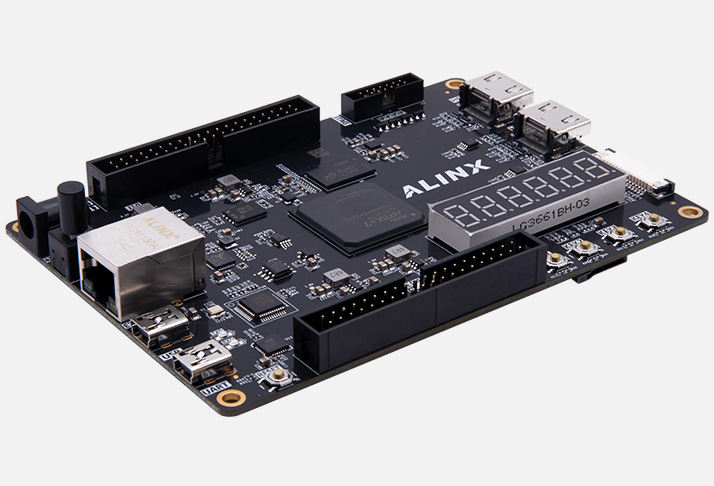

ALINX AMD Xilinx Artix 7 XC7A35T FPGA development board

Overview

Product Description

The AX7035B FPGA development board equipped with the AMD/Xilinx Artix 7 series device, delivers standout performance with fast DDR3 SDRAM, QSPI Flash, Gigabit Ethernet, HDMI.

Provide video applications (HDMI).

Applications

● Industrial controls
● Video image transmission processing

Key Features

● AMD/Xilinx Artix 7:
◆ A high-performance power-per-watt architecture, transceiver line speed, DSP processing power, and AMS integration are available in a single cost-optimized FPGA
◆ The 28nm node achieves an excellent cost/performance/power balance
● 256MByte (32-bit) DDR3 SDRAM
● 16 MB QSPI Flash
● 1 x Gigabit Ethernet
● 2 x HDMI(1 x HDMI in + 1 x HDMI out)
● 1 x USB2.0
● 1 x MicroSD
● 1 x 512 Byte EEPROM 24LC04
● 1 x Temperature sensor LM75
● 2 x 40-pin Expansion Port (40 pin 2.54mm spacing, with 34 IOs, connected to ALINX modules such as binocular cameras, TFT LCD screens, high-speed AD modules, etc.)
● LED (1 x PWR + 1 x RXD + 1 x TXD + 4 x LED) KEY (2 x KEY)
● 1 x Six-in-one digital tube
● 1 x UART(USB to UART)
● 12V single supply
● Dimensions: 130 x 90 mm form factor

Product Information

Specifications
What's Inside

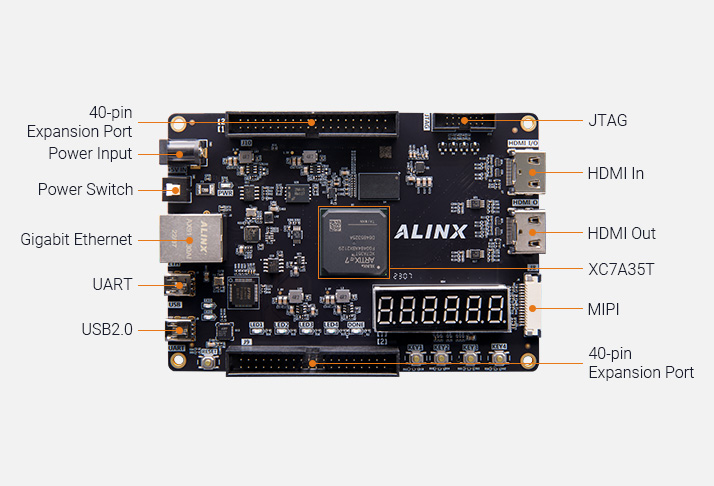

Board Features

Featuring the AMD/Xilinx Artix 7 XC7A35T-2FGG484I

Design-in Kit – The Fast Way to the Market, to get started with development straight out of the box.
The ALINX FPGA development board help shorten time-to-market for any AMD/Xilinx Artix 7 based application.

What's Inside the Box

ALINX AMD Xilinx Artix 7 XC7A35T FPGA development board and Some accessories

Development Board	1	USB Downloader Cable / set	1
Mini USB Cable	1	Acrylic board	1
5V Power Adapter	1

Product Selection Matrix

Product Matrix

Product Model	Preferred Model	FPGA Devices	DDR3 SDRAM	QSPI Flash	USD Price
AX7035B	√	XC7A35T-2FGG484I	256MB	16 MB	132

1. For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock.
2. We offer custom configuration, a MOQ applies.
Please contact us for more details.

We offer complete documentations and a lot of demos and tutorials.
Please contact us should you have any need.
