AX7202

AX7202 FPGA Dev Board & Kit with AMD Artix™ 7 XC7A200T

The AX7202 FPGA development board equipped with the AMD Artix 7 series device, delivers standout performance with DDR3 SDRAM, QSPI Flash, Gigabit Ethernet, SFP, VGA out, RS232.

Unit price

$ 343

Overview

ALINX AMD Xilinx Artix 7 XC7A200T FPGA development board AX7202 7A200T

Product Description

The AX7102/AX7202 FPGA development board equipped with the AMD/Xilinx Artix 7 series device, delivers standout performance with fast DDR3 SDRAM, QSPI Flash,  Gigabit Ethernet, SFP, VGA out, RS232.


Provide high-speed communication (SFP) and video applications (VGA).

Applications



Key Features

Product Information

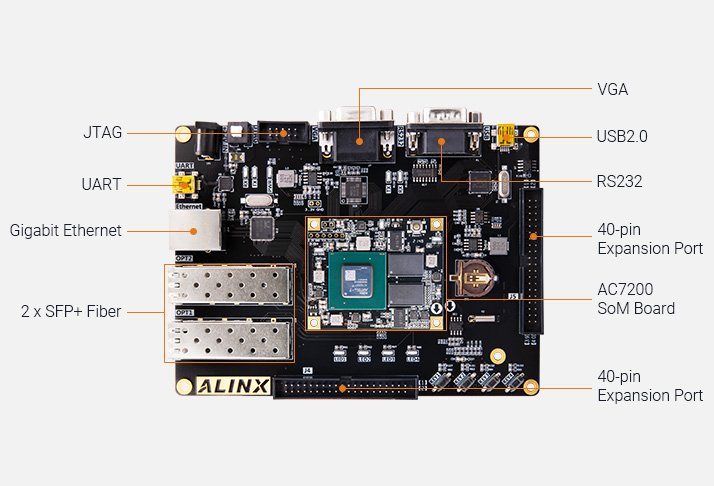

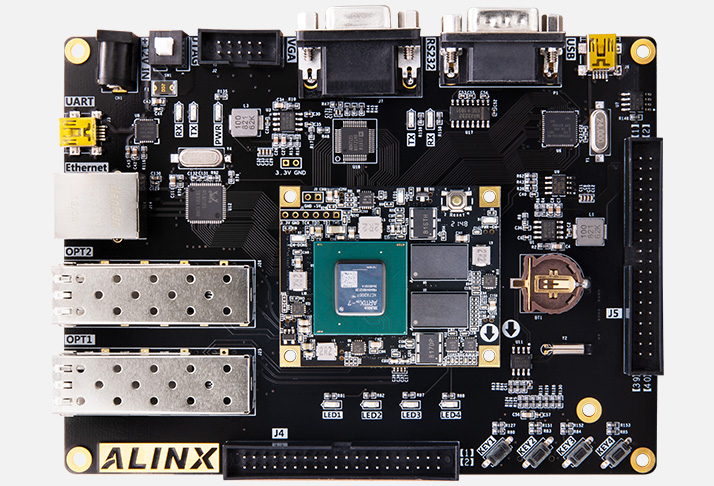

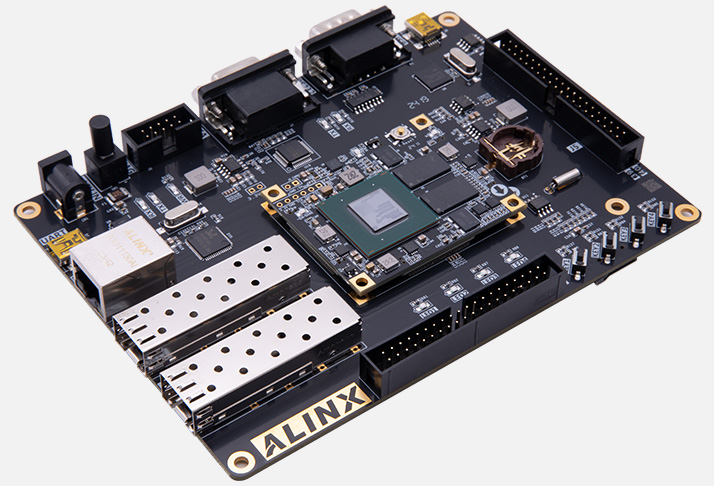

Board Features

Featuring the AMD/Xilinx Artix 7 XC7A200T-2FGG484I

Design-in Kit – The Fast Way to the Market, to get started with development straight out of the box.
The ALINX FPGA development board help shorten time-to-market for any AMD/Xilinx Artix 7 based application.

ALINX AMD Xilinx Artix 7 XC7A200T FPGA development board AX7202 7A200T

* The AX7202 development board consists of a AC7200 SoM and base board. If you want to purchase AC7200 SoM separately.
Please check the Relevant Products at the bottom of the page and click to learn more details.

What's Inside the Box

ALINX AMD Xilinx Artix 7 XC7A200T FPGA development board and Some accessories

System-on-Module1Base Board1
Mini USB Cable1USB Downloader Cable / set1
12V Power Adapter1Acrylic board1
Heatsink1

Product Selection Matrix

Product Matrix

Product ModelPreferred ModelFPGA DevicesDDR3 SDRAMQSPI FlashGTPUSD Price
AX7102XC7A100T-2FGG484I1 GB16 MB4277
AX7202XC7A200T-2FBG484I1 GB16 MB4343


1. For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock.
2. We offer custom configuration, a MOQ applies.
Please contact us for more details.


We offer complete documentations and a lot of demos and tutorials.
Please contact us should you have any need.

Documentations
