ALINX AMD Xilinx Kintex UltraScale XCKU040 FPGA development board

Overview

ALINX AMD Xilinx Kintex UltraScale+ XCKU040 development board AXKU041 KU040

Product Description

The AXKU041 FPGA development board equipped with the AMD/Xilinx Kintex UltraScale™ series device, delivers standout performance with fast DDR4 SDRAM, QSPI Flash, PCIe, SFP+, FMC HPC, FMC LPC, Gigabit Ethernet.

Compatible with a multitude of FMC board (data acquisition, motor control, display camera interfaces, software defined radio), Provide high-speed communication (PCIe, SFP+).

Applications

● 100G Packet processing for network and data center applications
● Medical imaging
● DSP-intensive processing required for heterogeneous wireless infrastructures

Key Features

● AMD/Xilinx Kintex Ultrascale™:
◆ Up to 1.5M system logic units with Gen 2 3D ICs
◆ 8.2 TeraMAC DSP Compute Performance
◆ Enhanced system logic unit packaging reduces dynamic power consumption
● 4 GByte (64-bit) DDR4 SDRAM
● 2 x 32 MB QSPI Flash
● 2 x FMC LPC (33 pairs lvds ios) + FMC HPC (57 pairs lvds ios + 8 pairs GTH)
● 1 x PCIe® Gen3 x 8
● 2 x SFP+ (per line 12.5Gbps)
● 1 x Gigabit Ethernet
● 1 x UART (USB to UART)
● 1 x MicroSD
● 1 x Temperature sensor LM75A
● LED (1 x PWR + 4 x LED) + KEY (1 x reset + 1 x KEY)
● 12V single supply
● Dimensions: 210 x 106 mm form factor

Product Information

Specifications
What's Inside

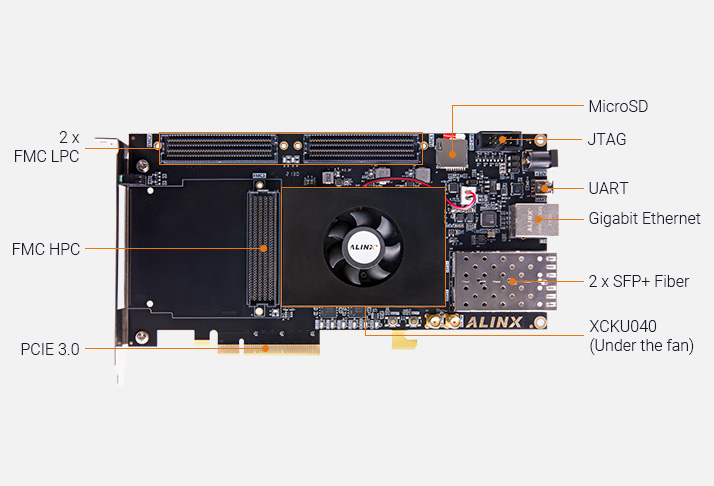

Board Features

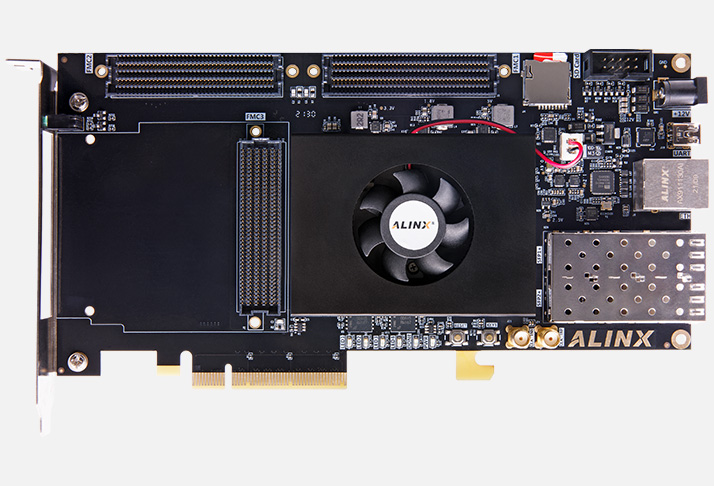

Featuring the AMD/Xilinx Kintex Ultrascale™ XCKU040-2FFVA1156I

Design-in Kit – The Fast Way to the Market, to get started with development straight out of the box.
The ALINX FPGA development board help shorten time-to-market for any AMD/Xilinx Kintex Ultrascale™ based application.

What's Inside the Box

ALINX AMD Xilinx Kintex Ultrascale™ XCKU040 FPGA development board and Some accessories

The FAN8060 Heatsink Kit is an optimal cooling solution for FPGA devices – it is low-profile and covers the whole XCKU040 device surface.

Development Board	1	Heatsink Kit (preinstalled)	1
Mini USB Cable	1	USB Downloader Cable / set	1
12V Power Adapter	1

Product Selection Matrix

Product Matrix

Product Model	Preferred Model	FPGA Devices	DDR4 SDRAM	QSPI Flash	GTH	USD Price
AXKU041	√	XCKU040-2FFVA1156I	4 GB	2 x 32 MB	20	924

1. For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock.
2. We offer custom configuration, a MOQ applies.
Please contact us for more details.

We offer complete documentations and a lot of demos and tutorials.
Please contact us should you have any need.
