AXKU062

AXKU062 FPGA Dev Board & Kit with AMD Kintex US+ XCKU060

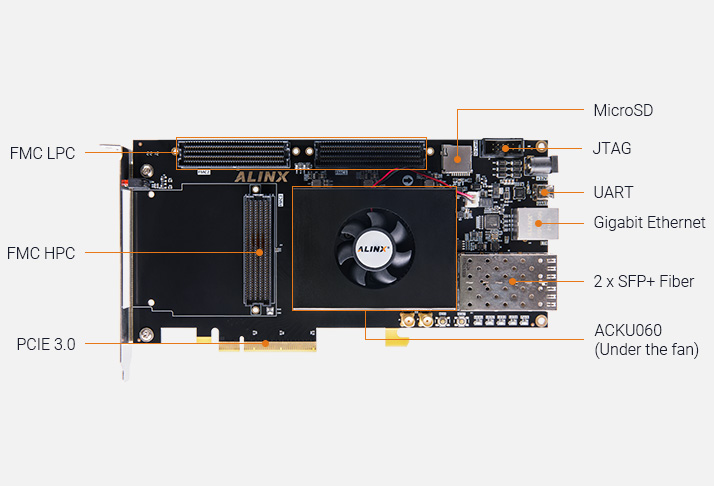

The AXKU062 FPGA development board equipped with the AMD Kintex UltraScale™ series device, delivers standout performance with DDR4 SDRAM, QSPI Flash, PCIe, SFP+, FMC HPC, FMC LPC, Gigabit Ethernet.

Unit price

$ 1189

Overview

ALINX AMD Xilinx Kintex UltraScale+ XCKU060 development board AXKU062 KU060

Product Description

The AXKU042/AXKU062 FPGA development board equipped with the AMD/Xilinx Kintex UltraScale™ series device, delivers standout performance with fast DDR4 SDRAM, QSPI Flash, PCIe, SFP+, FMC HPC, FMC LPC, Gigabit Ethernet.


Compatible with a multitude of FMC board (data acquisition, motor control, display camera interfaces, software defined radio), Provide high-speed communication (PCIe, SFP+).

Applications



Key Features

Product Information

Board Features

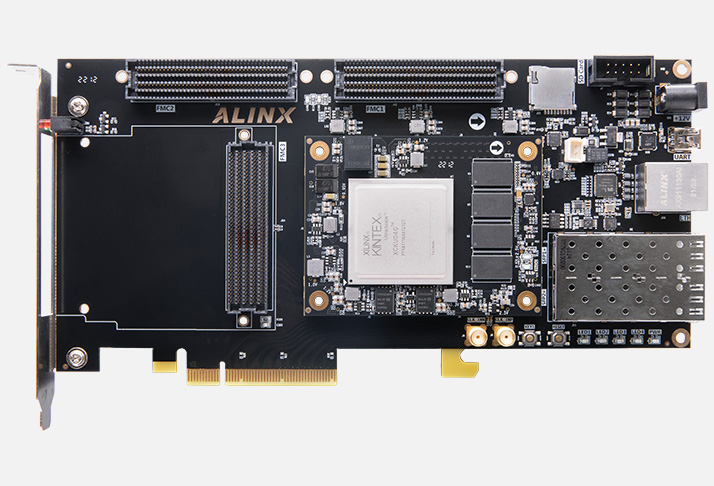

Featuring the AMD/Xilinx Kintex Ultrascale™ XCKU060-2FFVA1156I

Design-in Kit – The Fast Way to the Market, to get started with development straight out of the box.
 The ALINX FPGA development board help shorten time-to-market for any AMD/Xilinx Kintex Ultrascale™ based application.

ALINX AMD Xilinx Kintex UltraScale+ XCKU060 development board AXKU062 KU060

* The AXKU062 development board consists of a ACKU060 SoM and base board. If you want to purchase ACKU060 SoM separately.
Please check the Relevant Products at the bottom of the page and click to learn more details.

What's Inside the Box

ALINX AMD Xilinx Kintex Ultrascale™ XCKU060 FPGA development board and Some accessories

The FAN8060 Heatsink Kit is an optimal cooling solution for FPGA devices – it is low-profile and covers the whole XCKU060 device surface.

System-on-Module1Base Board1
Mini USB Cable1USB Downloader Cable / set1
12V Power Adapter1PCle Fence1
Heatsink Kit (preinstalled)1


Product Selection Matrix

Product Matrix

Product ModelPreferred ModelFPGA DevicesDDR4 SDRAMQSPI FlashGTHUSD Price
AXKU042XCKU040-2FFVA1156I4 GB32 MB20924






AXKU062XCKU060-2FFVA1156I4 GB32 MB201189


1. For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock.
2. We offer custom configuration, a MOQ applies.
Please contact us for more details.


We offer complete documentations and a lot of demos and tutorials.
Please contact us should you have any need.
