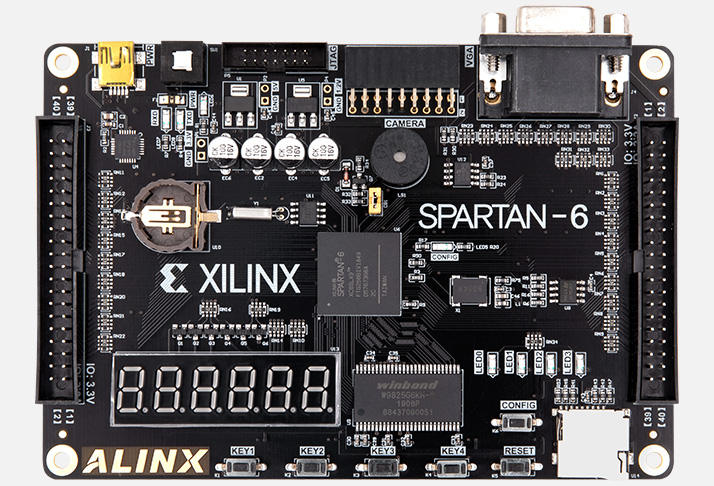

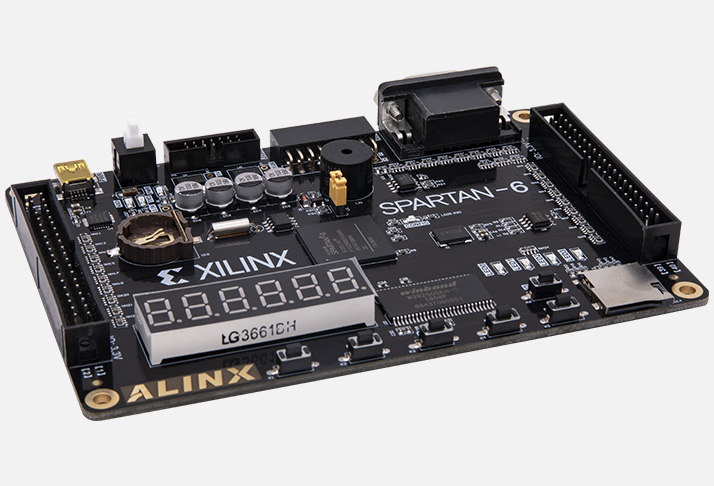

ALINX AMD Xilinx Spartan 6 XC6SLX9 FPGA development board

Overview

Product Description

The AX309 FPGA development board equipped with the AMD/Xilinx Spartan 6 series device, delivers standout performance with fast SDRAM, QSPI Flash.

Applications

● Industrial Networks
● Vehicle Networking and Connectivity
● High Resolution Video and Graphics

Key Features

● AMD/Xilinx Spartan 6:
◆ A high-performance power-per-watt architecture, transceiver line speed, DSP processing power, and AMS integration are available in a single cost-optimized FPGA
◆ The 45nm offers exceptional connectivity features such as high logic-to-pin ratios, small form-factor packaging, MicroBlaze™ soft processor, and a diverse number of supported I/O protocols
● 32 MByte (16-bit) SDRAM
● 2 MB QSPI Flash
● 1 x 512Byte EEPROM 24LC04
● 1 x USB to UART
● 1 x VGA out
● 2 x 40-pin Expansion Port (40 pin 2.54mm spacing, with 34 IOs, connected to ALINX modules such as binocular cameras, TFT LCD screens, high-speed AD modules, etc.)
● 1 x MicroSD
● 1 x Cameralink interface
● 1 x Six-in-one digital tube
● 1 x Buzzer
● LED (4 x LED) KEY (6 x KEY)
● 5V single supply

Product Information

Specifications
What's Inside

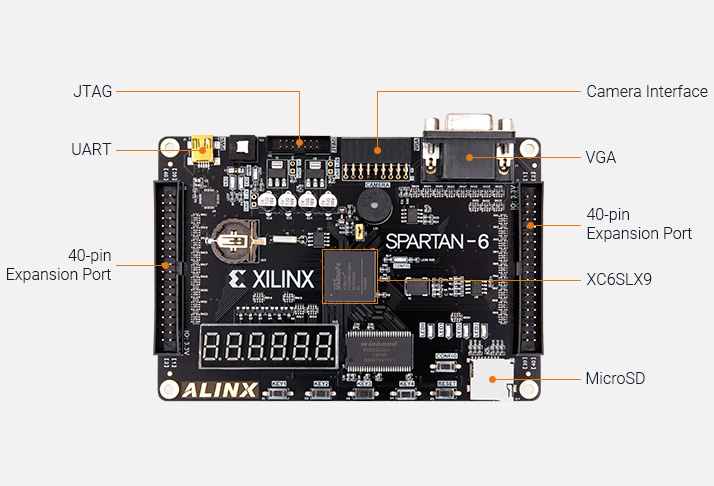

Board Features

Featuring the AMD/Xilinx Spartan 6 XC6SLX9-2FTG256C

Design-in Kit – The Fast Way to the Market, to get started with development straight out of the box.
The ALINX FPGA development board help shorten time-to-market for any AMD/Xilinx Spartan 6 based application.

What's Inside the Box

ALINX AMD Xilinx Spartan 6 XC6SLX9 FPGA development board and Some accessories

Development Board	1	Acrylic board	1
Mini USB Cable	1

Product Selection Matrix

Product Matrix

Product Model	Preferred Model	FPGA Devices	SDRAM	QSPI Flash	USD Price
AX309	√	XC6SLX9-2FTG256C	32 MB	2 MB	55

1. For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock.
2. We offer custom configuration, a MOQ applies.
Please contact us for more details.

We offer complete documentations and a lot of demos and tutorials.
Please contact us should you have any need.
