ALINX AMD Xilinx Spartan 7 XC7S50 FPGA development board

Overview

Product Description

The AX7050 FPGA development board equipped with the AMD/Xilinx Spartan 7 series device, delivers standout performance with fast DDR3 SDRAM, QSPI Flash, HDMI, Gigabit Ethernet.

video applications (HDMI).

Applications

● Video image acquisition and processing
● Network signal transmission

Key Features

System-on-Module
● AMD/Xilinx Spartan 7:
◆ A high-performance power-per-watt architecture, transceiver line speed, DSP processing power, and AMS integration are available in a single cost-optimized FPGA
◆ The 28nm node achieves an excellent cost/performance/power balance
● Pluggable module with 2 x Panasonic board-to-board connectors
● 1 GByte (32-bit) DDR3 SDRAM
● 16 MB QSPI Flash
Base Board
● 1 x Gigabit Ethernet
● 1 x HDMI out
● 1 x UART(USB to UART)
● 1 x 40-pin Expansion Port (40 pin 2.54mm spacing, with 34 IOs, connected to ALINX modules such as binocular cameras, TFT LCD screens, high-speed AD modules, etc.)
● 1 x MicroSD
● 1 x RTC DS1302(Real-time Clock)
● 1 x 512 Byte EEPROM 24LC04
● 1 x Cameralink interface
● LED (1 x PWR + 1 x RXD + 1 x TXD + 4 x LED) KEY(4 x KEY)
● 5V single supply
● Dimensions: 130 x 90 mm form factor

Product Information

Specifications
What's Inside

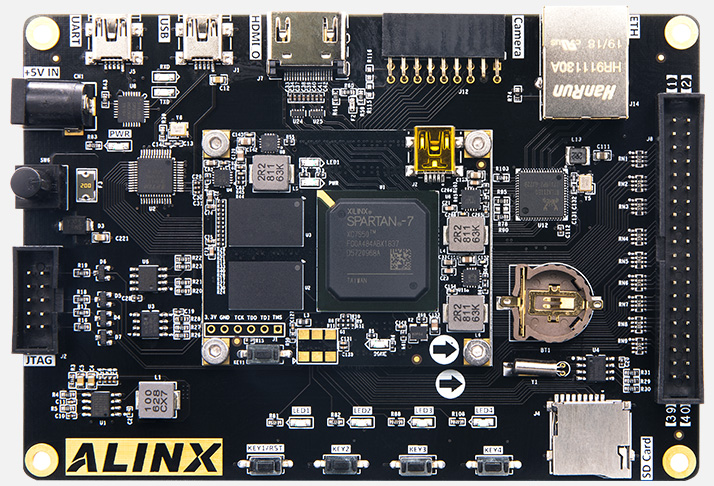

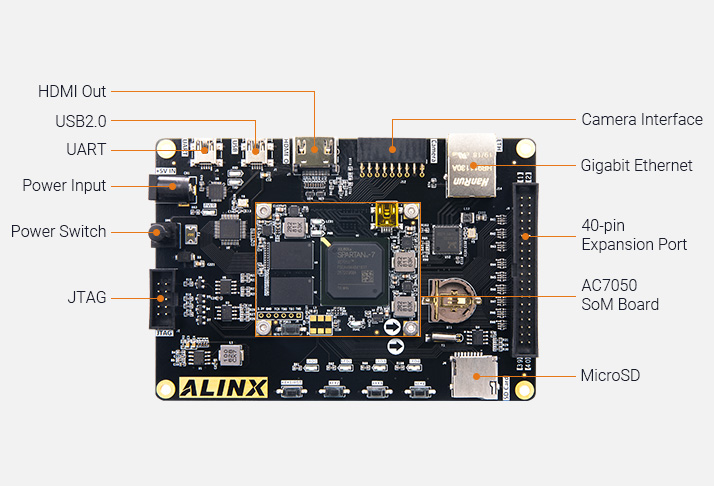

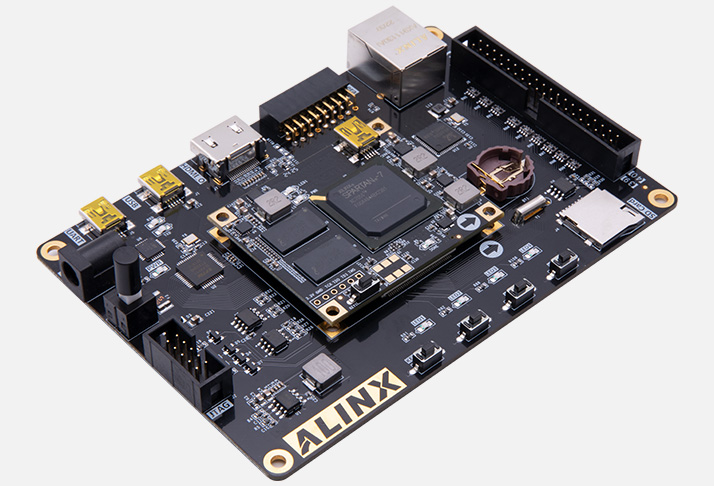

Board Features

Featuring the AMD/Xilinx Spartan 7 XC7S50-1FGGA484I

Design-in Kit – The Fast Way to the Market, to get started with development straight out of the box.
The ALINX FPGA development board help shorten time-to-market for any AMD/Xilinx Spartan 7 based application.

* The AX7050 development board consists of a AC7050B SoM and base board. If you want to purchase AC7050B SoM separately.
Please check the Relevan roducts at the bottom of the page and click to learn more details.

What's Inside the Box

ALINX AMD Xilinx Spartan 7 XC7A200T FPGA development board and Some accessories

System-on-Module	1	Base Board	1
Mini USB Cable	1	Acrylic board	1
5V Power Adapter	1	USB Downloader Cable / set	1

Product Selection Matrix

Product Matrix

Product Model	Preferred Model	FPGA Devices	DDR3 SDRAM	QSPI Flash	USD Price
AX7050	√	XC7S50-1FGGA484I	1 GB	16 MB	198

1. For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock.
2. We offer custom configuration, a MOQ applies.
Please contact us for more details.

We offer complete documentations and a lot of demos and tutorials.
Please contact us should you have any need.
