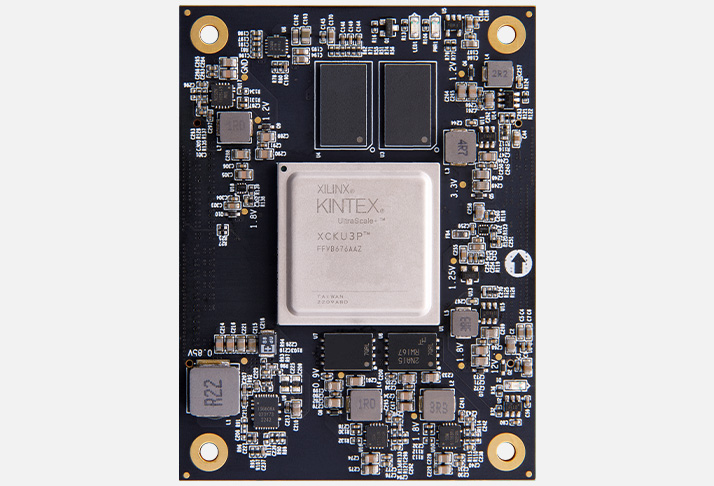

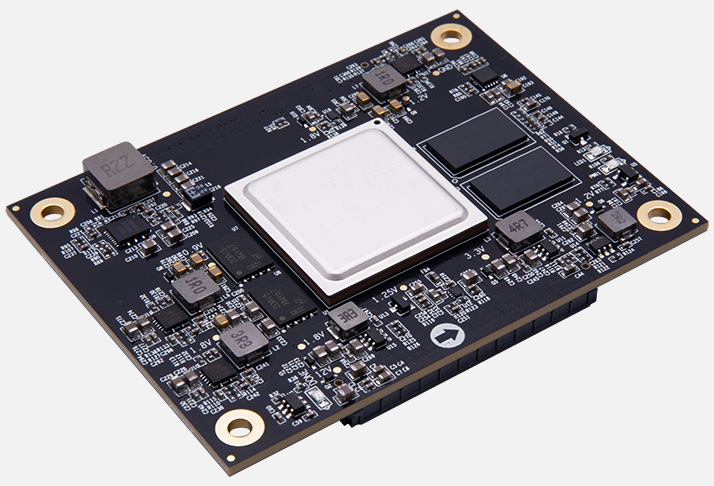

The ACKU3/ACKU5 FPGA system-on-module(SoM) combines high-end AMD Xilinx Kintex UltraScale+™ series device with fast DDR4 SDRAM, parallel Quad-SPI Flash and thus forms a complete and powerful embedded processing system.
● AMD/Xilinx Kintex Ultrascale+™ :
◆ 16nm FinFET FPGA fabric
◆ Up to 60% reduction in power consumption compared to 7 Series FPGAs

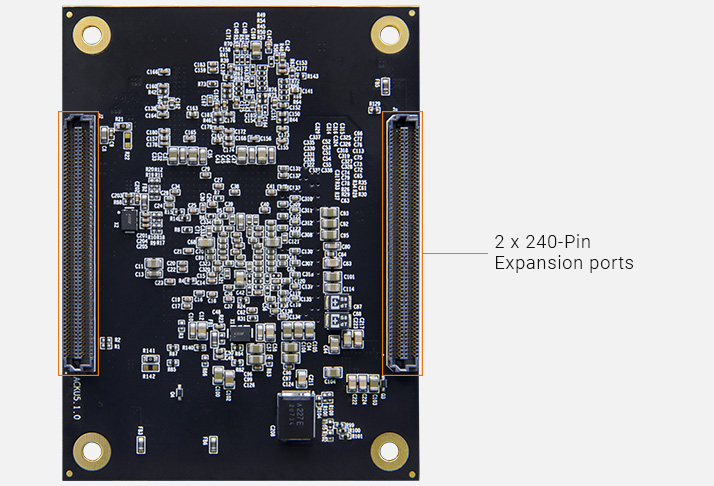

◆ More than 2 x faster system-level performance per watt compared to Kintex 7 FPGAs● Pluggable module with 2 x Samtec board-to-board connectors
● 2 GByte (32-bit) DDR4 SDRAM
● 2 x 32 MB QSPI Flash
● 1 x PCIe® Gen3 ×16
● Gigabit transceivers
◆ 16 x GTY, up to 28.21 Gbps● User I/Os
◆ 179 FPGA I/Os● Work temperature range of -40°C to +85°C
● 12V single supply
● Dimensions: 80 x 60 mm form factor
* If you want to design a base board based on this Kintex Ultrascale+™ FPGA system-on-module, you need to purchase ADM6-60-01.5-L-4-2-A-TR high-speed Board to Board Connectors, 240 Pins, you also need to purchase FAN8060 Heatsink Kit, the FAN8060 Heatsink Kit is an optimal cooling solution for ALINX FPGA and modules – it is low-profile and covers the whole module surface.
* We have Kintex Ultrascale+™ development boards AXKU3 that uses this Kintex Ultrascale+™ module, to get started with development straight out of the box.
Please check the Relevant Products at the bottom of the page and click to learn more details.
| Kintex Ultrascale+™ SOM | 1 |
|---|
1. For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock.
2. We offer custom configuration, a MOQ applies.
Please contact us for more details.
We offer complete documentations and a lot of demos and tutorials.
Please contact us should you have any need.
