ALINX AMD Xilinx Kintex UltraScale+ XCKU5P FPGA SoM system-on-module

Overview

Product Description

The ACKU3/ACKU5 FPGA System-on-Module(SoM) combines high-end AMD Xilinx Kintex UltraScale+™ series device with fast DDR4 SDRAM, parallel Quad-SPI Flash and thus forms a complete and powerful embedded processing system.

Applications

PON access
Move the backhaul
Data center network acceleration

Key Features

● AMD/Xilinx Kintex Ultrascale+™ :
◆ 16nm FinFET FPGA fabric
◆ Up to 60% reduction in power consumption compared to 7 Series FPGAs
◆ More than 2 x faster system-level performance per watt compared to Kintex 7 FPGAs● Pluggable module with 2 x Samtec board-to-board connectors
● 2 GByte (32-bit) DDR4 SDRAM
● 2 x 32 MB QSPI Flash
● 1 x PCIe® Gen3 ×16
● Gigabit transceivers
◆ 16 x GTY, up to 28.21 Gbps● User I/Os
◆ 179 FPGA I/Os● Work temperature range of -40°C to +85°C
● 12V single supply
● Dimensions: 80 x 60 mm form factor

Product Information

Specifications
What's Inside

Module Features

Featuring the AMD/Xilinx Kintex Ultrascale+™ XCKU5P-2FFVB676I

* If you want to design a base board based on this Kintex Ultrascale+™ FPGA System-on-Module, you need to purchase ADM6-60-01.5-L-4-2-A-TR high-speed Board to Board Connectors, 240 Pins, you also need to purchase FAN8060 Heatsink Kit, the FAN8060 Heatsink Kit is an optimal cooling solution for ALINX FPGA and modules – it is low-profile and covers the whole module surface.

* We have Kintex Ultrascale+™ development boards AXKU5 that uses this Kintex Ultrascale+™ module, to get started with development straight out of the box.

Please check the Relevant Products at the bottom of the page and click to learn more details.

What's Inside the Box

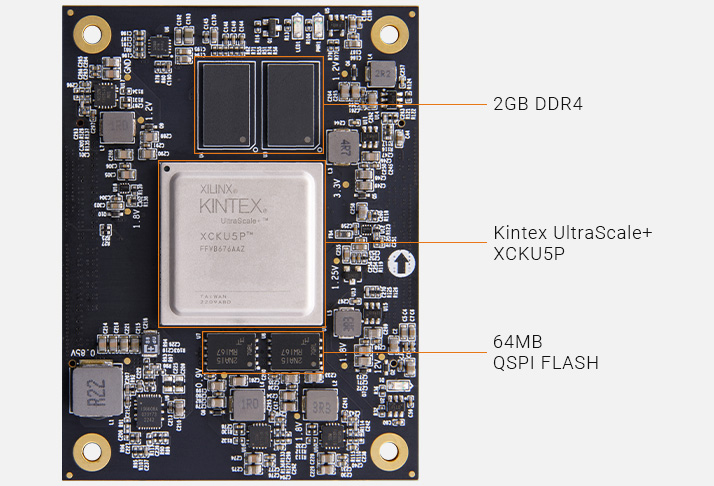

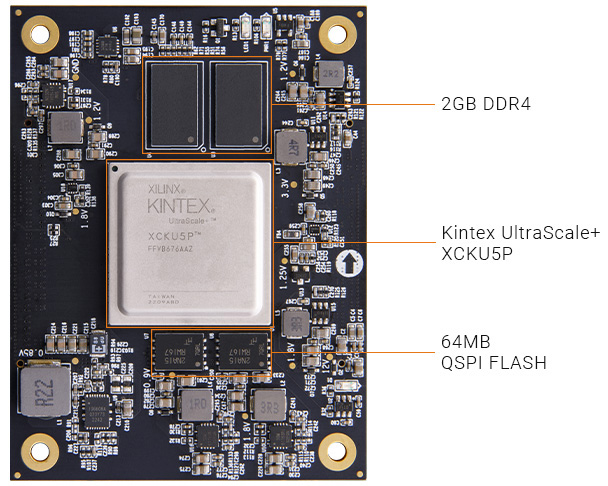

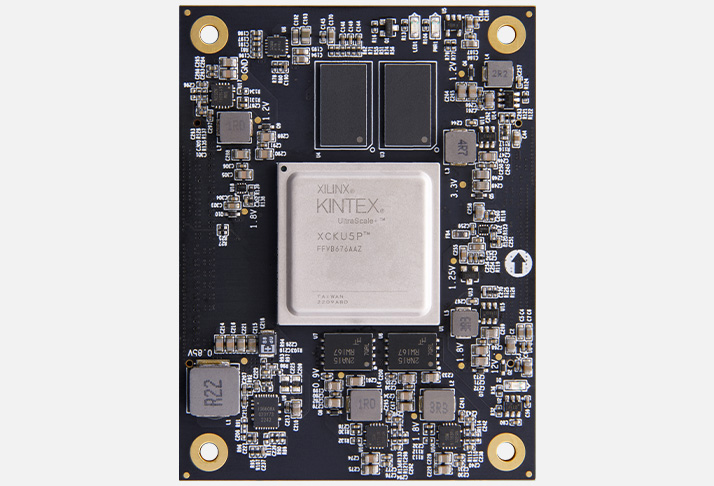

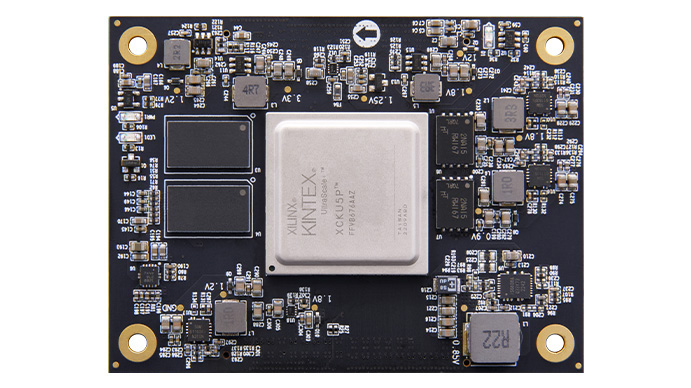

ALINX AMD Xilinx Kintex Ultrascale+™ XCKU5P FPGA System-on-Module/SoM

Kintex Ultrascale+™ SoM	1

Product Selection Matrix

Product Matrix

Product Model	Preferred Model	FPGA Devices	DDR4 SDRAM	QSPI Flash	GTY	Temp. Range	USD Price
ACKU3	√	XCKU3P-2FFVB676I	2 GB	2 x 32 MB	16	-40°C~+85°C	528
ACKU5	√	XCKU5P-2FFVB676I	2 GB	2 x 32 MB	16	-40°C~+85°C	660

1. For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock.
2. We offer custom configuration, a MOQ applies.
Please contact us for more details.
