AC7050B

AC7050B FPGA SoM with AMD Spartan™ 7 XC7S50

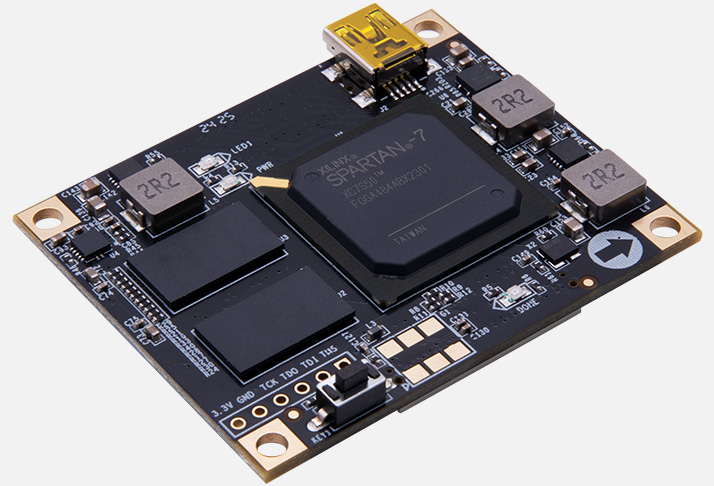

The AC7050B System-on-Module (SoM) combines high-end AMD Spartan 7 series device with fast DDR3 SDRAM, parallel Quad-SPI Flash and thus forms a complete and powerful embedded processing system. This module is suitable for high-speed applications due to the high number of transceivers.

Unit price

$ 132

Overview

ALINX AMD Xilinx Spartan 7 XC7S50 FPGA SoM system-on-module AC7050B 7S50

Product Description

The AC7050B FPGA System-on-Module(SoM) combines high-end AMD Xilinx Spartan 7 series device with fast DDR3 SDRAM, parallel Quad-SPI Flash and thus forms a complete and powerful embedded processing system. This module is suitable for high-speed applications due to the high number of transceivers.

Applications



Key Features

Product Information

Module Features

Featuring the AMD/Xilinx Spartan 7 XC7S50T-2FGGA484I

ALINX AMD Xilinx Spartan 7 XC7S50 FPGA SoM system-on-module AC7050B 7S50
ALINX AMD Xilinx Spartan 7 XC7S50 FPGA SoM system-on-module AC7050B 7S50


* If you want to design a base board based on this Spartan 7 FPGA System-on-Module, you need to purchase AXK680337YG high-speed Board to Board Connectors, 80 Pins.

* We have Spartan 7 development boards AX7050 that uses this Spartan 7 module, to get started with development straight out of the box.

Please check the Relevant Products at the bottom of the page and click to learn more details.

What's Inside the Box

ALINX AMD Xilinx Spartan 7 XC7S50T FPGA System-on-Module/SoM

Spartan 7 SoM1


Product Selection Matrix

Product Matrix

Product ModelPreferred ModelFPGA DevicesDDR3 SDRAMQSPI Flash

Temp. Range

USD Price

AC7035BXC7S50T-2FGGA484I1 GB16 MB-40°C~+85°C132
AC7075 XC7A75T-2FGGA484I1 GB16 MB-40°C~+85°CTBD
AC7S100XC7A100T-2FGGA484I1 GB16 MB-40°C~+85°CTBD


1. For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock.
2. We offer custom configuration, a MOQ applies.
Please contact us for more details.


We offer complete documentations and a lot of demos and tutorials.
Please contact us should you have any need.
