AXZ1012

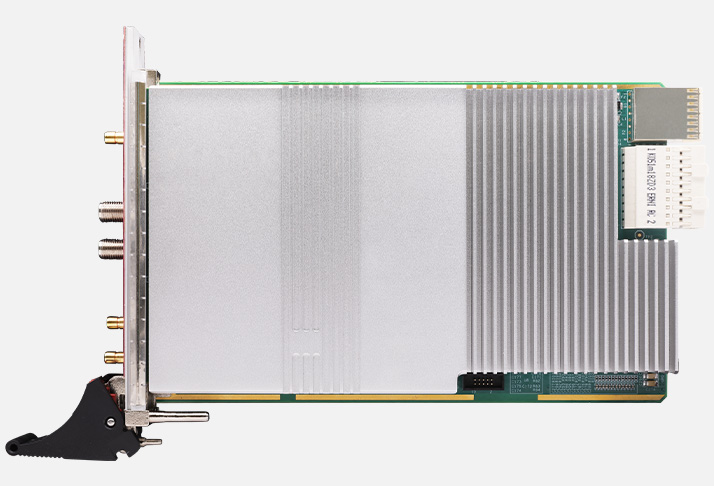

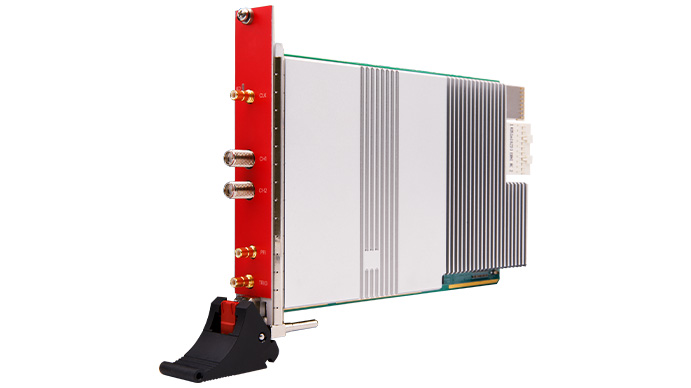

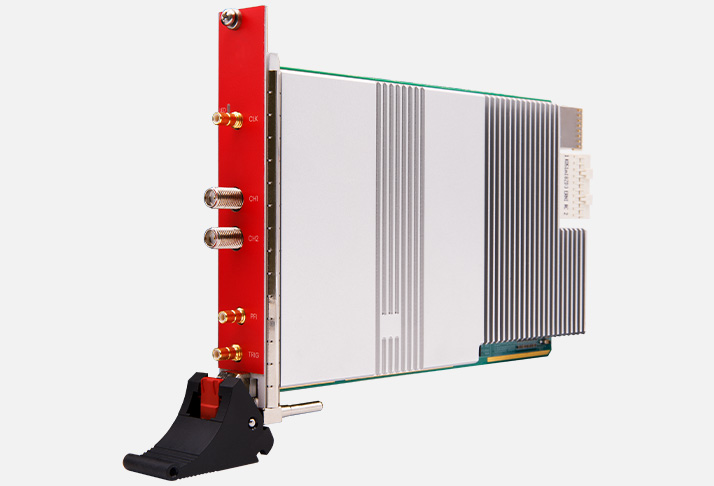

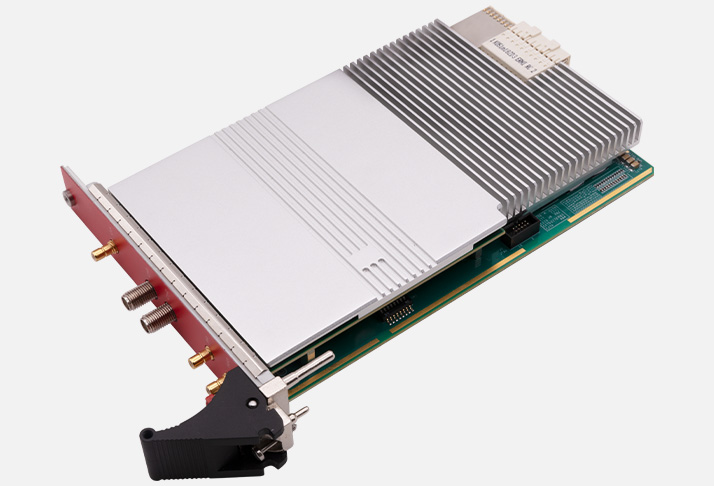

AXZ1012 5.2GSPS/10.4GSPS 12-bit 2CH/1CH High-Speed Digitizer

The AXZ1012 High-Speed Digitizer supports 5.2GSPS/10.4GSPS sampling rates and 12-bit resolution. It utilizes high-speed, large-capacity data buffering and high-speed data exchange technology, making it suitable for the precise capture of high-speed, transient signals. It can be used to construct multi-channel, high-precision, synchronous acquisition systems.

Unit price

$ 14602

In stock:

＞1, ready to ship in 9 workdays

Order Contact

Overview

Product Description

Applications

● High-speed transient signal recording
● Wideband signal analysis
● IF signal acquisition
● Mass spectrometry
● Nuclear and particle physics experiments
● Scientific research and military industry
● Lidar echo acquisition

Technical Parameters

● Sampling Rate : 5.2GSPS/10.4GSPS
● Resolution : 12-bit
● Number of Channels : 2/1 channel(s)
● Connector : SMA
● Analog Bandwidth：3GHz @10.4GSPS
● Coupling Mode：DC Coupling
● Input Impedance：50 Ω
● Input Range：1 Vpp
● Effective Number of Bits (ENOB) ：8 bits @ 10 MHz
● Synchronization ：< 40 ps (RMS)
● Acquisition Input ：2 channels, SMA connector
● External Trigger Input ：1 channel, analog trigger, SMB connector
● External Clock Input ：1 channel, 10MHz/100MHz, Square/Sine wave, SMB connector
● PFI Programmable Function：General-purpose bidirectional I/O interface: 1 channel, SMB connector
● Bus：PCIe Gen3 x8
● On-board Buffer ：8 GB DDR4
● Power Consumption：30W
● Operating Environment ：-20°C ~ +50°C, 10%~90% RH, non-condensing
● Storage Temperature ：-30°C ~ +70°C
● Operating System ：Windows 10 64-bit and Linux
● Dimensions ：PXIe 3U/1 Slot, 20mm×160mm×100mm (W×D×H)

Product Information

Specifications
What's Inside

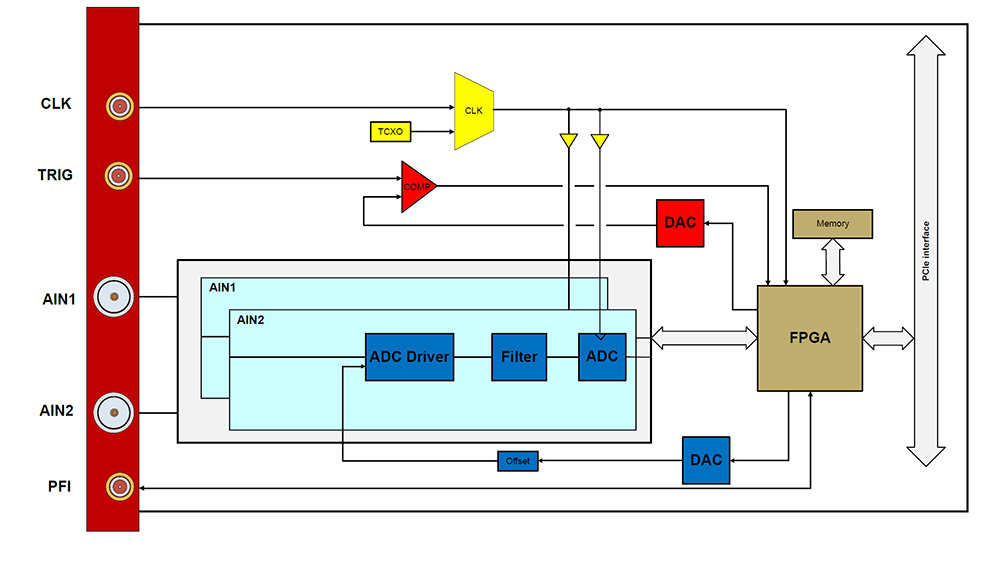

Functional Block Diagram

The AXZ1012 digitizer supports 2 data acquisition channels (1 channel at 10.4GSPS/2 channels at 5.2GSPS), 1 external reference clock, 1 external trigger input, and 1 programmable function interface. The data acquisition channels feature a 50Ω input impedance and DC coupling.

What's Inside the Box

AXZ1012 digitizer	1

Product Selection Matrix

Product Matrix

Product Model	Preferred Model	Sampling Rate	Resolution	Number of Channels	DDR4 SDRAM	USD Price
AXZ1012	√	5.2GSPS/10.4GSPS	12-bit	2/1	8GB	14602

1. For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock.
2. We offer custom configuration, a MOQ applies.
Please contact us for more details.

We offer complete documentations and a lot of demos and tutorials.
Please contact us should you have any need.
