AXPGL50H

AXPGL50H FPGA Dev Board & Kit with Pango Logos PGL50H

The AXPGL50H model is PANGO Logos device with fast DDR3 SDRAM, dual parallel quad SPI flash and thus forms a complete and powerful embedded processing system. This module is suitable for high-speed applications due to the high number of transceivers.

Unit price

$ 198

Overview

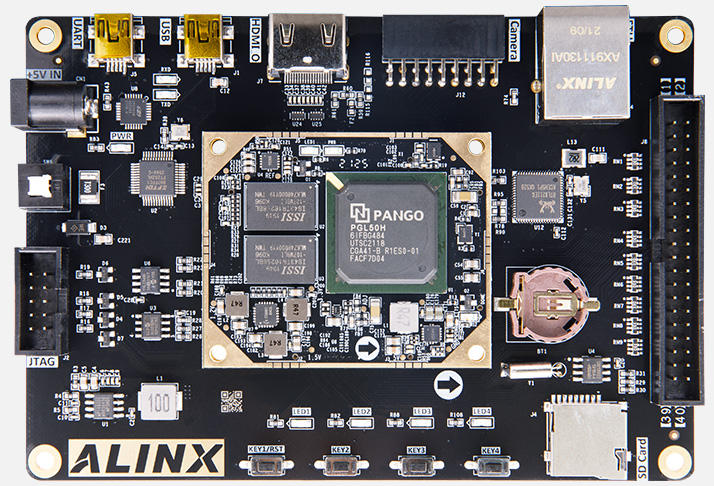

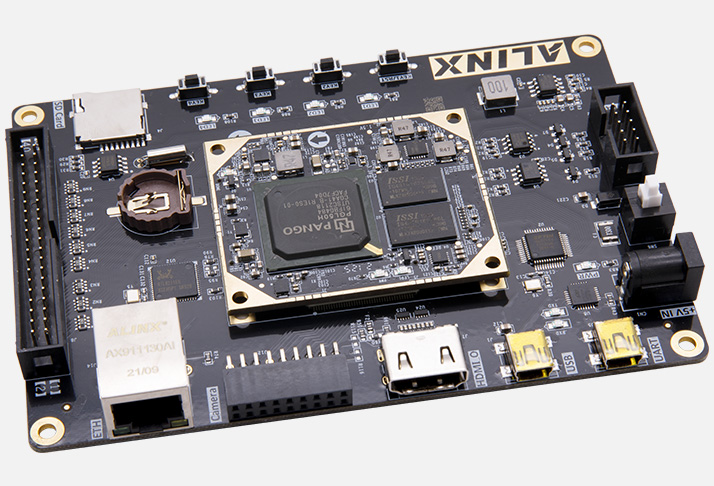

ALINX AXPGL50H FPGA Development Board with Pango Logos PGL50H

Product Description

The AXPGL50H model is PANGO Logos device with fast DDR3 SDRAM, dual parallel quad SPI flash and thus forms a complete and powerful embedded processing system. This module is suitable for high-speed applications due to the high number of transceivers.


Applications



Key Features

Product Information

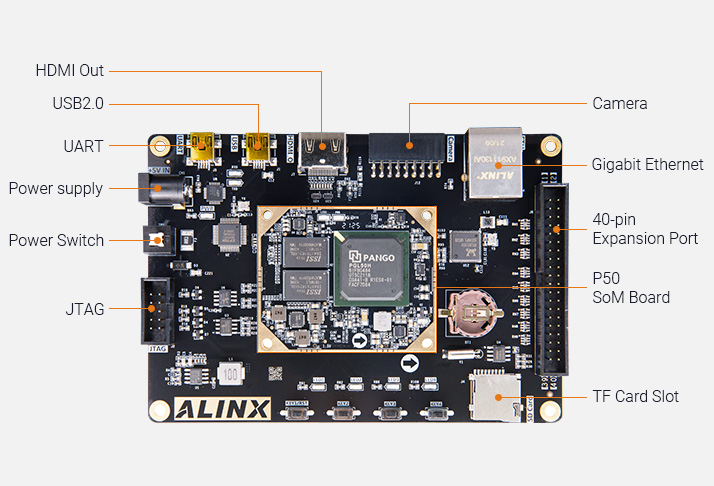

Development Board Features

Featuring the PANGO Logos PGL50H-6IFBG484 Adaptive

Design-in Kit – The Fast Way to the Market, to get started with development straight out of the box.
The ALINX development board help shorten time-to-market for any PANGO Logos based application.

ALINX AXPGL50H FPGA Development Board with Pango Logos PGL50H

* The AXPGL50H development board consists of a P50 SoM and base board. If you want to purchase P50 SoM separately.
Please check the Relevant Products at the bottom of the page and click to learn more details.

What's Inside the Box

ALINX PANGO Logos PGL50H development board and Some accessories

System-on-Module1Base Board
Mini USB Cable1USB Downloader Cable / set1
5V Power Adapter1Acrylic Plate 1


Product Selection Matrix

Product Matrix

Product ModelPreferred ModelFPGA DevicesDDR3 ECC SDRAMQSPI FlashUSD Price
AXP50PGL50H-6IFBG4841 GB16 MB660
AXPGL50HPGL50H-6IFBG4841 GB16 MB198
AVP50GPGL50G-6IFBG484256MB8 MB264
PGL22GPGL22G-6CMBG324256MB16 MB119
AXP12PGL12G-6CFBG25632MB8 MB106
PGL12GPGL12G-6CFBG25632MB8 MB43


1. For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock.
2. We offer custom configuration, a MOQ applies.
Please contact us for more details.


We offer complete documentations and a lot of demos and tutorials.
Please contact us should you have any need.

Documentations

Related Products
