Overview
Product Description
FPGA Development Board is PANGO Logos series device, delivers standout performance with DDR3 SDRAM, QSPI Flash, HDMI, Gigabit Ethernet.
Applications
● Communication
● Industrial control
Key Features
System-on-Module
● PANGO Logos PGL22G:◆ 40 nm FPGA fabric
● Pluggable module with 2 x Panasonic board-to-board connectors
● 256MB MByte (16-bit) SDRAM
● 16 MB QSPI FlashBase Board
● 1 x USB2.0
● 1 x HDMI out
● 1 x Gigabit Ethernet
● 1 x 512 Byte EEPROM 24LC04
● 1 x RTC(Real Timing Clock)
● 1 x Camera link
● 1 x UART(USB to UART)
● 1 x MicroSD
● LED(1 x PWR + 1 x RXD + 1 x TXD + 4 x LED) KEY(4 x KEY)
● 1 x 40-pin Expansion Port (40 pin 2.54mm spacing, with 34 IOs, connected to ALINX modules such as binocular cameras, TFT LCD screens, high-speed AD modules, etc.)
● 5V single supply
● Dimensions: 130 x 90 mm form factor
Product Information
- Specifications
- What's Inside
Development Board Features
Featuring the PANGO Logos PGL22G-6CMBG324 Adaptive
Design-in Kit – The Fast Way to the Market, to get started with development straight out of the box.
The ALINX development board help shorten time-to-market for any PANGOMICRO Logos based application.
* The PGL22G development board consists of a P22 SoM and base board. If you want to purchase P22 SoM separately.
Please check the Relevant Products at the bottom of the page and click to learn more details.
What's Inside the Box

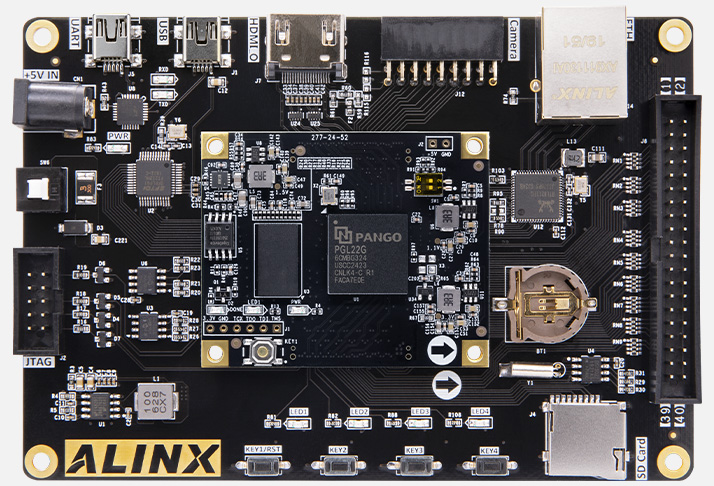

ALINX PANGO Logos PGL22G development board and Some accessories
System-on-Module | 1 | Base Board | 1 |
---|
Mini USB Cable | 1 | USB Downloader Cable / set | 1 |
---|
5V Power Adapter | 1 | Acrylic Plate | 1 |
---|
Product Selection Matrix
Product Matrix
Product Model | Preferred Model | FPGA Devices | DDR3 ECC SDRAM | QSPI Flash | USD Price | | | | | | | |
---|
AXPGL50H | √ | PGL50H-6IFBG484 | 1 GB | 16 MB | 208 | | | | | | | |
---|
PGL22G | √ | PGL22G-6CMBG324 | 256MB | 16 MB | 125 | | | | | | | |
---|
AXP12 | √ | PGL12G-6CFBG256 | 32MB | 8 MB | 111 | | | | | | | |
---|
1. For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock.
2. We offer custom configuration, a MOQ applies.
Please contact us for more details.
We offer complete documentations and a lot of demos and tutorials.
Please contact us should you have any need.
Documentations
Related Products
