P100

P100 FPGA SoM with Pango Logos2 PG2L100H

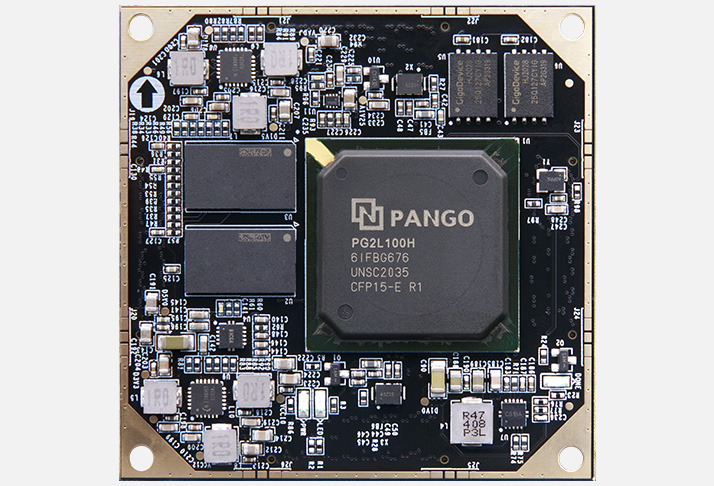

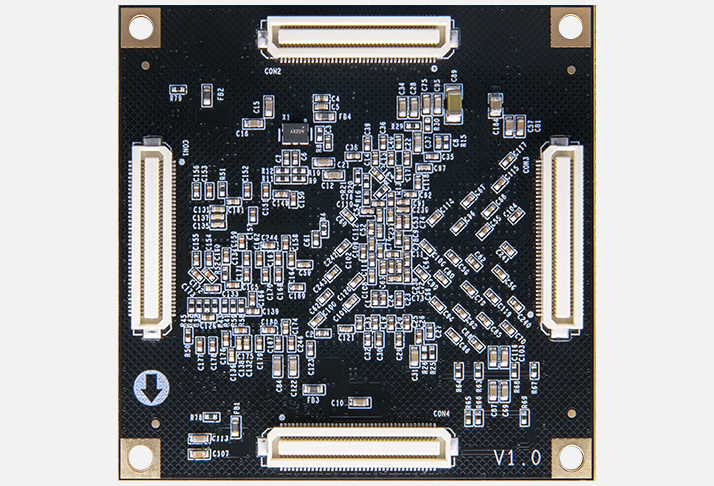

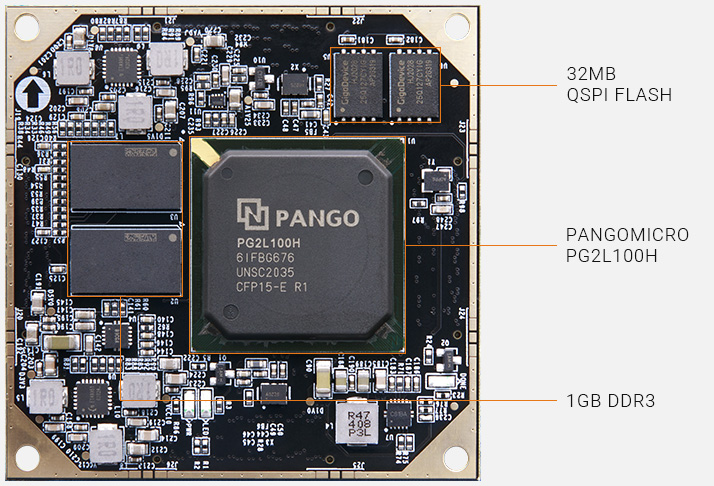

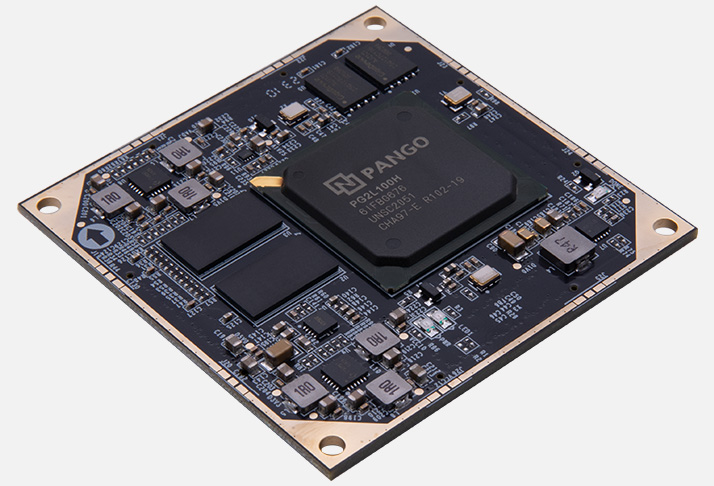

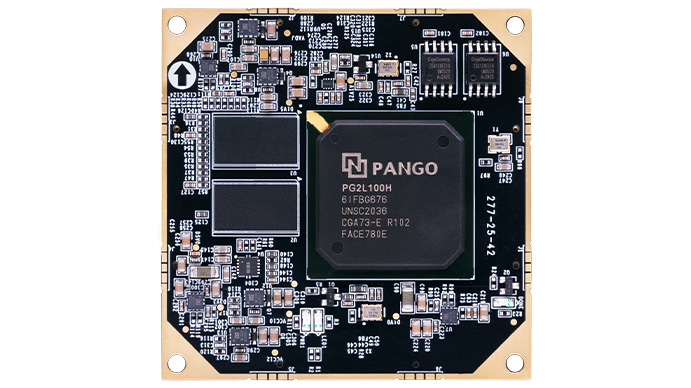

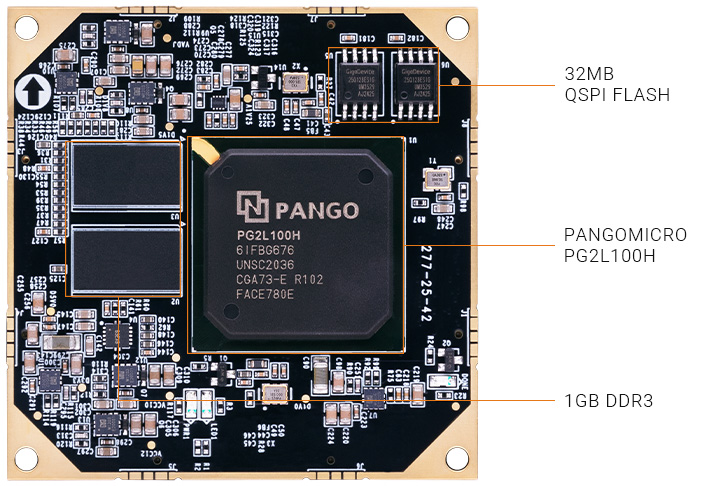

The P100 System-on-Module (SoM) combines high-performance Pango Logos2-series PG2L100H -6IFBG676 device with fast DDR3 SDRAM, dual parallel Quad-SPI Flash and thus forms a complete and powerful embedded processing system. This module is suitable for high-speed applications due to the high number of transceivers.

Unit price

$ 123

Overview

ALINX PANGOMICRO Logos2 PG2L100H SoM system-on-module P100

Product Description

The P100 System-on-Module (SoM) combines high-performance Pango Logos2-series PG2L100H device with fast DDR3 SDRAM, dual parallel Quad-SPI Flash and thus forms a complete and powerful embedded processing system. This module is suitable for high-speed applications due to the high number of transceivers.

Applications



Key Features

Product Information

Module Features

Featuring the Pango Logos2 PG2L100H -6IFBG676

ALINX PANGOMICRO Logos2 PG2L100H SoM system-on-module P100
ALINX PANGOMICRO Logos2 PG2L100H SoM system-on-module P100

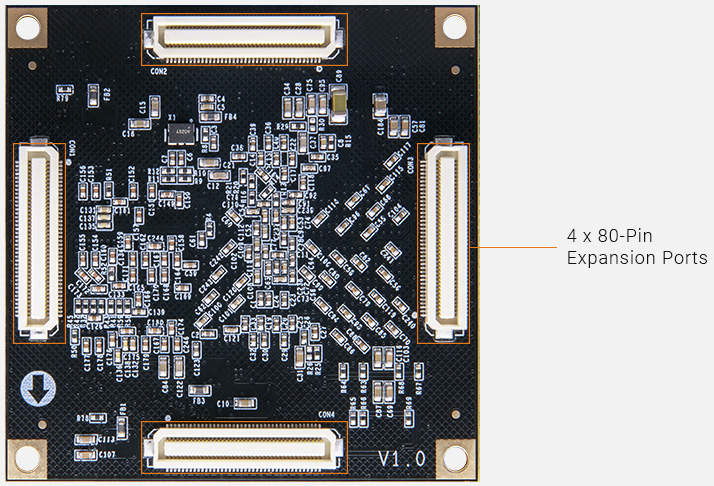

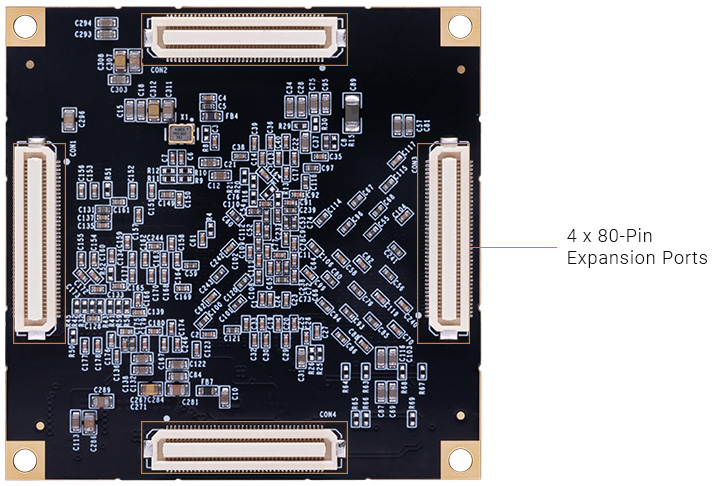

* If you want to design a base board based on this Logos System-on-Module, you need to purchase AXK680337YG high-speed Board to Board Connectors, 80 Pins.

* We have Logos development boards AXP100B that uses this Logos module, to get started with development straight out of the box.

Please check the Relevant Products at the bottom of the page and click to learn more details.

What's Inside the Box

ALINX Pango Logos PG2L100H System-on-Module/SoM

System-on-Module1


Product Selection Matrix

Product Matrix

Product ModelPreferred ModelFPGA DevicesDDR3QSPI FlashTemp. RangeUSD Price
P100PG2L100H -6IFBG6761GB32MB-40°C~ 85°C123


1. For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock.
2. We offer custom configuration, a MOQ applies.
Please contact us for more details.


We offer complete documentations and a lot of demos and tutorials.
Please contact us should you have any need.

Documentations

Related Products
