P50

P50 FPGA SoM with Pango Logos PGL50H

The P50 System-on-Module (SoM) combines high-performance Pango Logos-series PGL50H -6IFBG484 device with fast DDR3 SDRAM, dual parallel Quad-SPI Flash and thus forms a complete and powerful embedded processing system. This module is suitable for high-speed applications due to the high number of transceivers.

Unit price

$ 119

Overview

ALINX Pango Logos PGL50H P50 FPGA SoM system-on-module

Product Description

The P50 System-on-Module (SoM) combines high-performance Pango Logos-series PGL50H -6IFBG484 device with fast DDR3 SDRAM, dual parallel Quad-SPI Flash and thus forms a complete and powerful embedded processing system. This module is suitable for high-speed applications due to the high number of transceivers.

Applications



Key Features

Product Information

Module Features

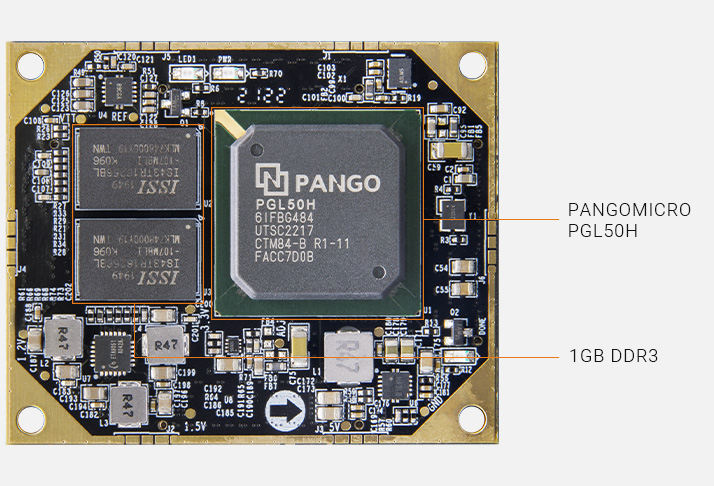

Featuring the Pango Logos PGL50H -6IFBG484

ALINX Pango Logos PGL50H P50 FPGA SoM system-on-module
ALINX Pango Logos PGL50H P50 FPGA SoM system-on-module


* If you want to design a base board based on this Logos System-on-Module, you need to purchase AXK680337YG high-speed Board to Board Connectors, 80 Pins.

* We have Logos development boards AXPGL50H and AXP50 that uses this Logos module, to get started with development straight out of the box.

Please check the Relevant Products at the bottom of the page and click to learn more details.

What's Inside the Box

ALINX Pango Logos PGL50H System-on-Module/SoM

SoM1


Product Selection Matrix

Product Matrix

Product ModelPreferred ModelFPGA DevicesDDR3QSPI FlashTemp. RangeUSD Price
P12PGL12G -6CFBG25632MB8MB0°C~ 70°C39
P22PGL22G -6CMBG324256MB16MB0°C~ 70°C43
P25GPGL25G-6IMBG324256MB16MB-40°C-85°C45
P50GPGL50G -6IFBG484256MB16MB-40°C-85°C75
P50PGL50H -6IFBG484256MB16MB-40°C-85°C119


1. For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock.
2. We offer custom configuration, a MOQ applies.
Please contact us for more details.


We offer complete documentations and a lot of demos and tutorials.
Please contact us should you have any need.
