ALINX AMD Xilinx Zynq UltraScale+ MPSoC XCZU19EG development board Z19-P

Overview

Z19-P Development Board & Kit with AMD Zynq™ US+ MPSoC XCZU19EG ZU19EG

Product Description

The Z19-P development board equipped with AMD/Xilinx Zynq™ UltraScale+™ MPSoC-series device, delivers standout performance with fast DDR4 SDRAM, eMMC Flash, QSPI Flash, PCIe, FMC HPC, DP, M.2.

Compatible with a multitude of FMC board (data acquisition, motor control, display camera interfaces, software defined radio), Provide high-speed communication (PCIe), high-speed storage (M.2) and video applications (DP).

Applications

● Artificial Intelligence
● Automotive
● AV Broadcasting
● Deep learning
● Digital Signal Processing
● 5G Wireless and Wire Communication
● Data Centers
● Drive / Motion Control
● Industrial Internet of Thing
● Cloud Computing Security
● Machine Vision
● Medical Endoscop
● Video and Image Processing

Key Features

System-on-Module
● AMD/Xilinx Zynq™ Ultrascale+™ MPSoC:
◆ ARM® quad-core Cortex™-A53 up to 1.3 GHz
◆ ARM® dual-core Cortex™-R5 up to 533 MHz
◆ Mali-400MP2 GPU
◆ 16nm FinFET+ FPGA fabric
● Pluggable module with 8 x Panasonic board-to-board connectors
● 5 GByte (72-bit) DDR4 SDRAM with ECC on PS
● 4 GByte (64-bit) DDR4 SDRAM on PL
● 2 x 64 MB QSPI Flash
● 32 GB eMMC Flash
Base Board
● 2 x FMC HPC Connectors (FMC1 has 72 pairs lvds io and 8 pairs GTH, FMC2 has 42 pairs lvds io and 8 pairs GTH)
● 1 x PCIe® Gen3 ×16
● 1 x M.2 Interface on PS
● 1 x DP Interface on PS
● 1 x USB3.0 on PS + 1 x USB2.0 on PS
● 1 x Gigabit Ethernet (1 x PS)
● 2 x UART (1 x PS + 1 x PL) (USB to UART)
● 1 x JTAG
● 1 x Micro SD
● EEPROM: 4-Kbit I2C Serial EEPROM + 1 x Temperature sensor (LM75)
● 4 x LED (1 x PWR + 1 x DONE + 1 x PS + 1 x PL)
● 12V single supply
● Dimensions: 225.81 x 106.65 mm form factor

Product Information

Specifications
What's Inside

Development Board Features

Featuring the AMD/Xilinx's Zynq™ UltraScale+™ MPSoC XCZU19EG-2FFVC1760I Adaptive SoC

Design-in Kit – The Fast Way to the Market, to get started with development straight out of the box.
The ALINX development board help shorten time-to-market for any AMD/Xilinx Zynq™ UltraScale+™ MPSoC based application.

* The Z19-P development board consists of a ACU19EG SoM and base board. If you want to purchase ACU19EG SoM separately.
Please check the Relevant Products at the bottom of the page and click to learn more details.

What's Inside the Box

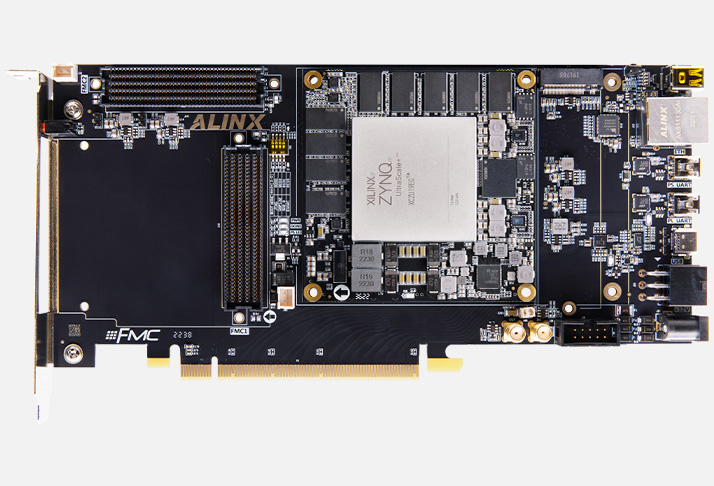

ALINX AMD Xilinx Zynq™ UltraScale+™ MPSoC XCZU19EG development board and Some accessories

The FAN8080 Heatsink Kit is an optimal cooling solution for ALINX FPGA and SoC modules – it is low-profile and covers the whole module surface.

System-on-Module	1	Base Board	1
Heatsink Kit (preinstalled)	1	USB Downloader Cable / set	1
12V Power Adapter	1	PCle Fence	1
Mini USB Cable	1	Card Reader	1
TF Card	1

Product Selection Matrix

Product Matrix

Product Model	Preferred Model	MPSoC	DDR4 ECC SDRAM (PS)	DDR4 SDRAM (PL)	QSPI Flash	eMMC Flash	GTH	GTY	USD Price
Z19-P	√	XCZU19EG-2FFVC1760I	5 GB	4 GB	2 x 64 MB	32GB	32	16	7925

1. For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock.
2. We offer custom configuration, a MOQ applies.
Please contact us for more details.

We offer complete documentations and a lot of demos and tutorials.
Please contact us should you have any need.
