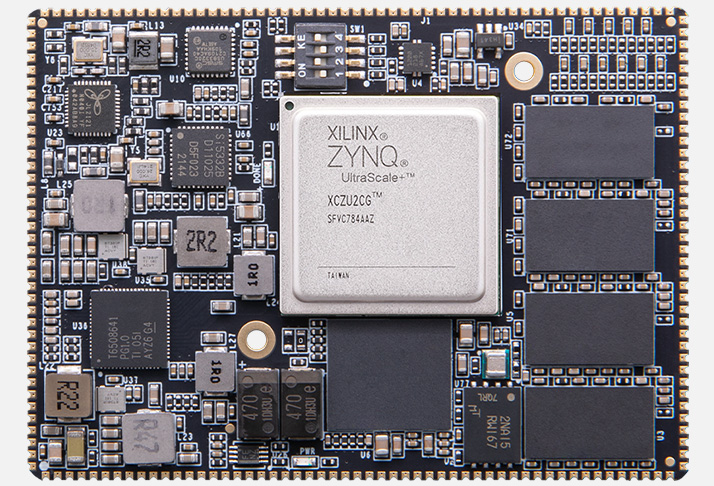

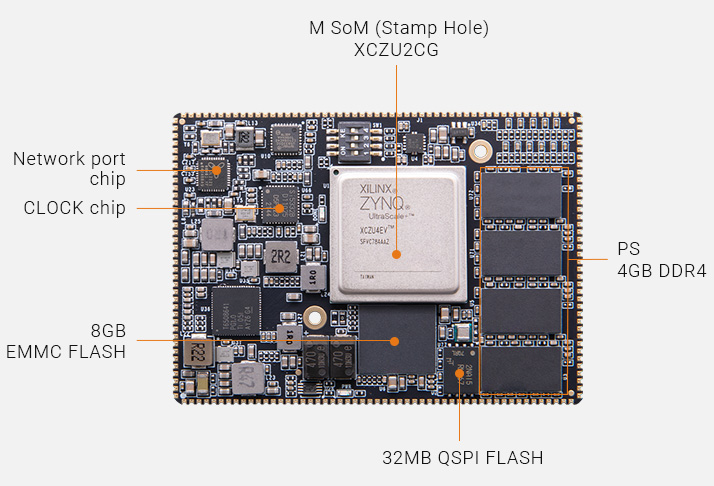

The M2CG/3EG/4EV/5EV System-on-Module (SoM) combines high-end AMD/Xilinx Zynq™ UltraScale+™ MPSoC-series device with fast DDR4 SDRAM, eMMC Flash, parallel Quad-SPI Flash and thus forms a complete and powerful embedded processing system.
● Artificial Intelligence
● AV Broadcasting
● Industrial Internet of Thing
● Digital Signal Processing
● Drive / Motion Control
● Machine Vision
● Medical Endoscop
● Video and Image Processing
* If you want to design a base board based on this Zynq™ UltraScale+™ MPSoC System-on-Module, you need to purchase FAN4040 Heatsink Kit, the FAN4040 Heatsink Kit is an optimal cooling solution for ALINX FPGA and SoC modules – it is low-profile and covers the whole module surface.
| M2CG SoM | 1 |
|---|
| Product Model | Preferred Model | MPSoC | DDR4 SDRAM (PS) | QSPI Flash | eMMC | GTR | Temp. Range | USD Price |
|---|---|---|---|---|---|---|---|---|
| M2CG | XCZU2CG-1SFVC784E | 4 GB | 32 MB | 8GB | 4 | 0°C~+70°C | 224 | |
| M2EG | XCZU2EG-1SFVC784I | 4 GB | 32 MB | 8GB | 4 | -40°C~+85°C | TBD | |
| M3CG | XCZU3CG-1SFVC784I | 4 GB | 32 MB | 8GB | 4 | -40°C~+85°C | TBD | |
| M3EG | √ | XCZU3EG-1SFVC784I | 4 GB | 32 MB | 8GB | 4 | -40°C~+85°C | 343 |
| M4CG | XCZU4CG-1SFVC784I | 4 GB | 32 MB | 8GB | 4 | -40°C~+85°C | TBD | |
| M4EG | XCZU4EG-1SFVC784I | 4 GB | 32 MB | 8GB | 4 | -40°C~+85°C | TBD | |
| M4EV | √ | XCZU4EV-1SFVC784I | 4 GB | 32 MB | 8GB | 4 | -40°C~+85°C | 528 |
| M5EV | XCZU5EV-2SFVC784I | 4 GB | 32 MB | 8GB | 4 | -40°C~+85°C | 753 |
1. For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock.
2. We offer custom configuration, a MOQ applies.
Please contact us for more details.
We offer complete documentations and a lot of demos and tutorials.
Please contact us should you have any need.
M2CG/M3EG M4EV/M5EV User Manual
