ALINX AMD Xilinx Zynq UltraScale+ MPSoC XCZU4EV SoM system-on-module

Overview

Product Description

The M2CG/3EG/4EV/5EV System-on-Chip (SoC) System-on-Module (SoM) combines high-end AMD/Xilinx Zynq™ UltraScale+™ MPSoC-series device with fast DDR4 SDRAM, eMMC Flash, parallel Quad-SPI Flash and thus forms a complete and powerful embedded processing system.

Applications

● Artificial Intelligence
● Automotive
● AV Broadcasting
● Deep learning
● Digital Signal Processing
● 5G Wireless and Wire Communication
● Data Centers
● Drive / Motion Control
● Industrial Internet of Thing
● Cloud Computing Security
● Machine Vision
● Medical Endoscop
● Video and Image Processing

Key Features

● AMD/Xilinx Zynq™ Ultrascale+™ MPSoC:
◆ ARM® quad-core Cortex™-A53 up to 1.3 GHz
◆ ARM® dual-core Cortex™-R5 up to 533 MHz
◆ Mali-400MP2 GPU (only for ZU3/4/5)
◆ H.264 / H.265 Video Codec (only for EV devices)
◆ 16nm FinFET+ FPGA fabric● Castellated-hole form factor
● 4 GByte (64-bit) DDR4 SDRAM on PS
● 32 MB QSPI Flash
● 8 GB eMMC Flash
● PCIe® Gen2 ×1 (PS)
● User I/Os
◆ 22 PS MIOs
◆ 102 FPGA I/Os (6 HD + 96 HP)● Work temperature range of -40°C to +85°C (only for ZU3/4/5)
● 12V single supply
● Dimensions: 70 x 50 mm form factor

Product Information

Specifications
What's Inside

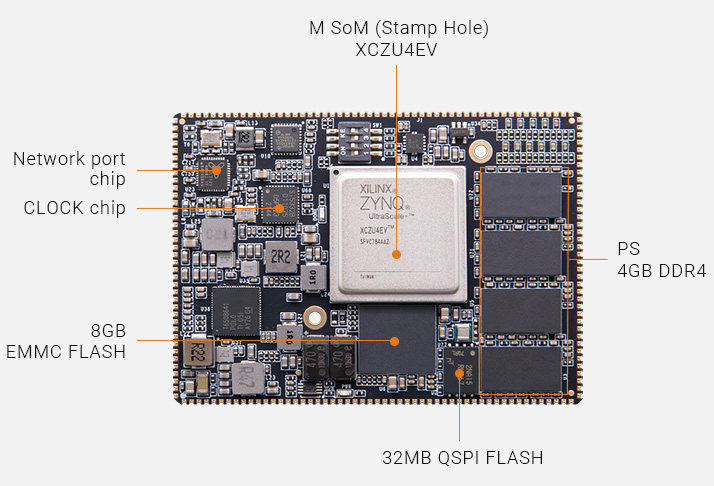

Module Features

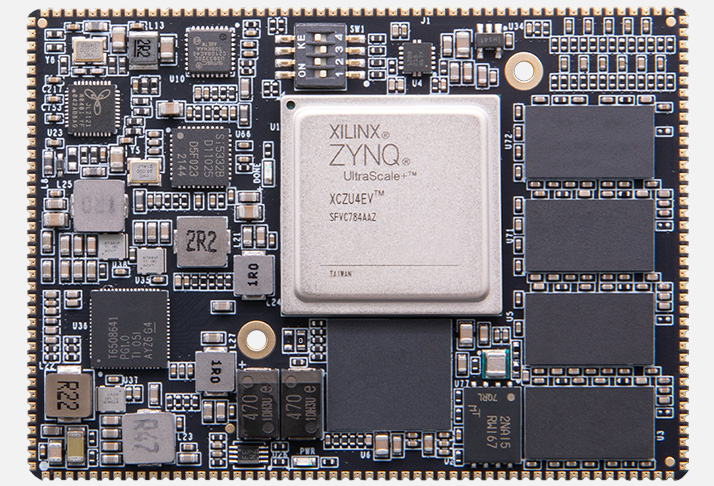

Featuring the AMD/Xilinx Zynq™ UltraScale+™ MPSoC XCZU4EV-1SFVC784I

ALINX AMD Xilinx Zynq UltraScale+ MPSoC XCZU4EV SoM system-on-module M4EV ZU4EV

* If you want to design a base board based on this Zynq™ UltraScale+™ MPSoC system-on-module, you need to purchase FAN8060 Heatsink Kit, the FAN8060 Heatsink Kit is an optimal cooling solution for ALINX FPGA and SoC modules – it is low-profile and covers the whole module surface.

What's Inside the Box

ALINX AMD Xilinx Zynq™ UltraScale+™ MPSoC XCZU4EV System-on-Module/SoM

MPSoC SoM	1

Product Selection Matrix

Product Matrix

Product Model	Preferred Model	MPSoC	DDR4 SDRAM (PS)	QSPI Flash	eMMC	GTR	Temp. Range	USD Price
M2CG		XCZU2CG-1SFVC784E	4 GB	32 MB	8GB	4	0°C~+70°C	224
M2EG		XCZU2EG-1SFVC784I	4 GB	32 MB	8GB	4	-40°C~+85°C	TBD
M3CG		XCZU3CG-1SFVC784I	4 GB	32 MB	8GB	4	-40°C~+85°C	TBD
M3EG	√	XCZU3EG-1SFVC784I	4 GB	32 MB	8GB	4	-40°C~+85°C	343
M4CG		XCZU4CG-1SFVC784I	4 GB	32 MB	8GB	4	-40°C~+85°C	TBD
M4EG		XCZU4EG-1SFVC784I	4 GB	32 MB	8GB	4	-40°C~+85°C	TBD
M4EV	√	XCZU4EV-1SFVC784I	4 GB	32 MB	8GB	4	-40°C~+85°C	528
M5EV		XCZU5EV-2SFVC784I	4 GB	32 MB	8GB	4	-40°C~+85°C	753

1. For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock.
2. We offer custom configuration, a MOQ applies.
Please contact us for more details.

We offer complete documentations and a lot of demos and tutorials.
Please contact us should you have any need.
