The DZ7 is a heterogeneous multiprocessing development platform based on AMD Xilinx's Zynq UltraScale+ MPSoC (model XCZU7EV-2FFVC1156I), integrating ARM Cortex-A53 processors with FPGA logic, and featuring 6GB of DDR4 SDRAM, 32GB eMMC Flash, and diverse high-speed interfaces like M.2, DP, USB 3.0, and QSFP+ for applications such as data acquisition, processing, and automotive ECU testing.
Unit price
$ 2781

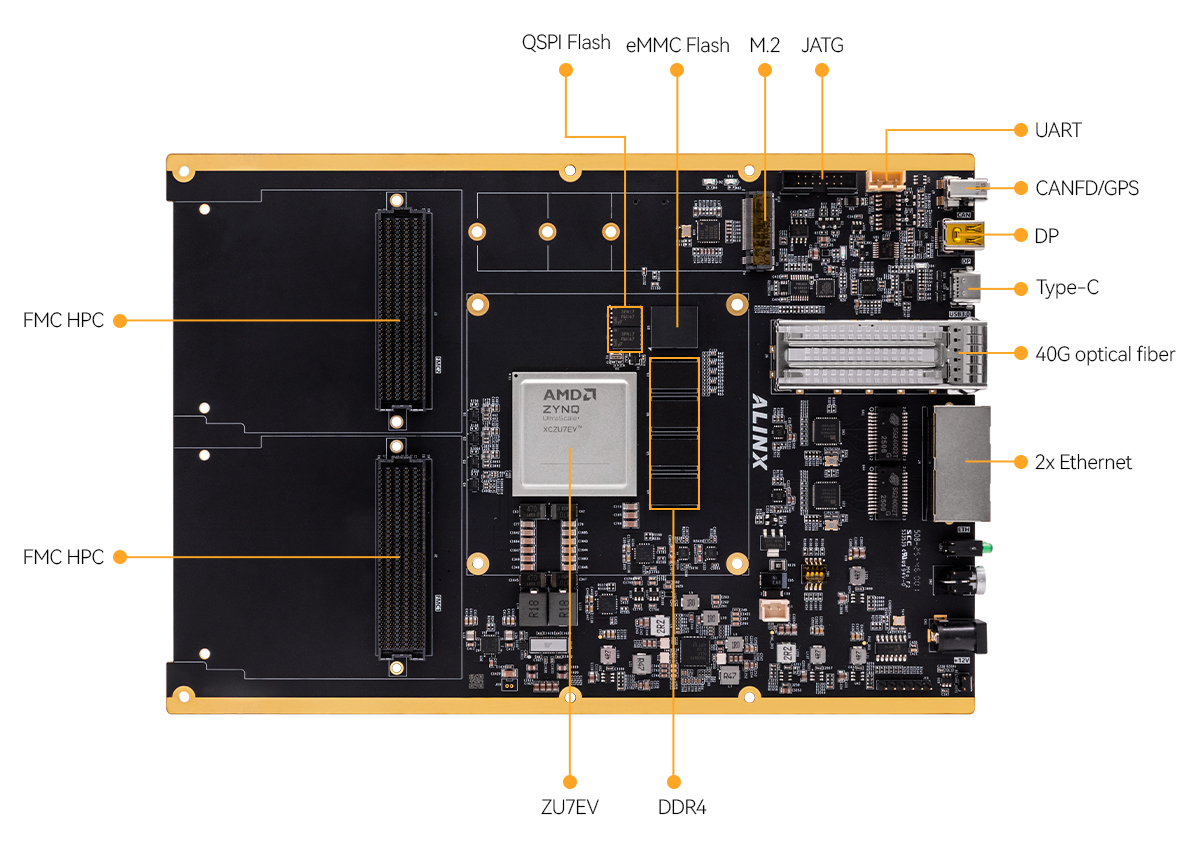

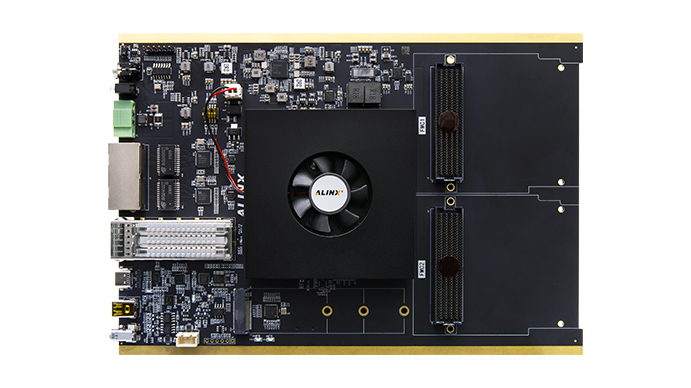

The DZ7 development board, equipped with the AMD/Xilinx Zynq™ UltraScale+™ MPSoC (XCZU7EV) and integrated quad-core Cortex-A53 + dual-core Cortex-R5 processors, delivers high-performance capabilities including 6GB DDR4 SDRAM (supporting up to 2400Mbps data rates), 32GB eMMC Flash, and 512Mbit QSPI Flash. It features extensive interfaces: 2× FMC HPC connectors (for high-speed peripheral expansion), PCIe Gen2×1 via M.2 (5Gbps for SSD storage), DisplayPort (4K@30Hz video output), QSFP+ fiber optic (40Gbps), USB 3.0 Type-C, dual Gigabit Ethernet, and Micro SD support with 4-configuration boot mode switches. Active cooling is provided by a programmable fan.
● Embedded Security
● Automotive
● AV Broadcasting
● Deep learning
● Digital Signal Processing
● 5G Wireless and Wire Communication
● Data Centers
● Industrial Control
● Industrial Internet of Things
● Cloud Computing Security
● Machine Vision
● High-Performance Computing
● Edge Computing
Design-in Kit – The Fast Way to the Market, to get started with development straight out of the box.
The ALINX development board help shorten time-to-market for any AMD/Xilinx Zynq™ UltraScale+™ MPSoC based application.
Please check the Relevant Products at the bottom of the page and click to learn more details.
The Heatsink Kit is an optimal cooling solution for ALINX FPGA and SoC modules – it is low-profile and covers the whole module surface.
| Development Board | 1 | Heatsink Kit (preinstalled) | 1 |
|---|---|---|---|
| 12V Power Adapter | 1 | TF Card | 1 |
| Mini USB Cable | 1 | Card Reader | 1 |
| USB Downloader Cable / set | 1 |
| Product Model | Preferred Model | MPSoC | DDR4 SDRAM (PS) | DDR4 SDRAM (PL) | QSPI Flash | eMMC Flash | GTR | GTH | USD Price | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DZ7 | √ | XCZU7EV-2FFVC1156I | 4 GB | 2 GB | 64 MB | 32 GB | 4 | 16 | 2781 |
1. For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock.
2. We offer custom configuration, a MOQ applies.
Please contact us for more details.
We offer complete documentations and a lot of demos and tutorials.
Please contact us should you have any need.
