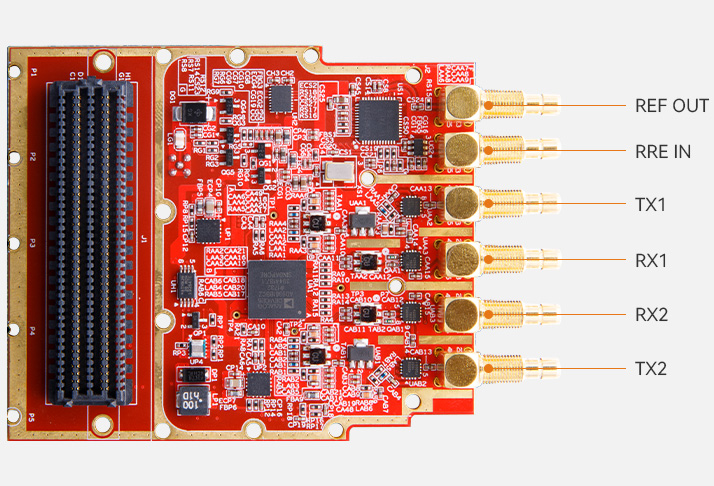

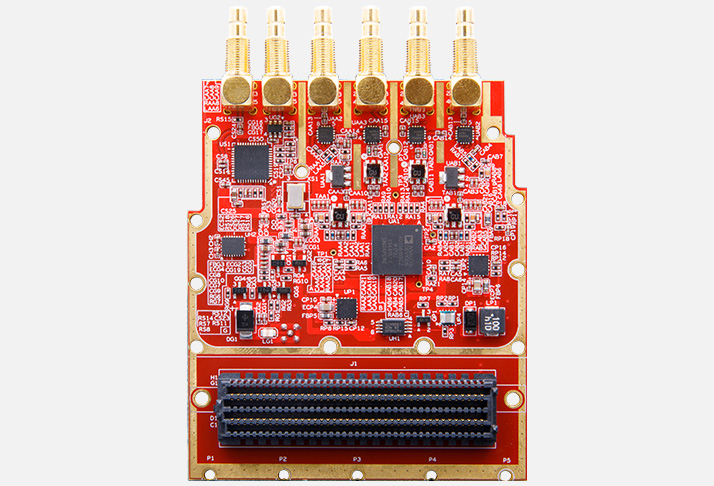

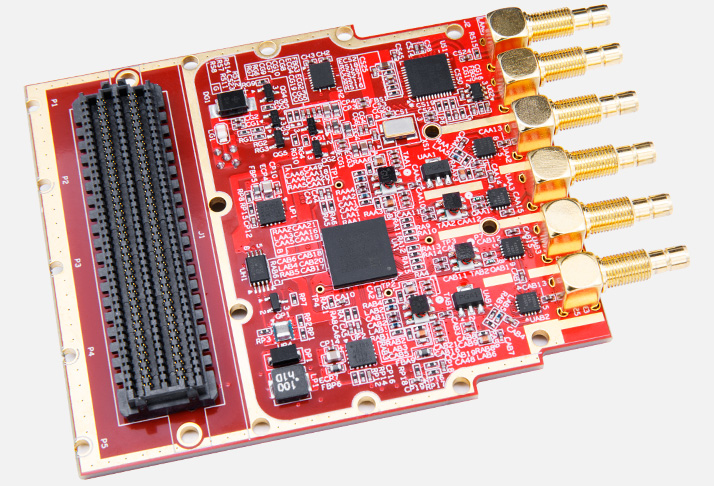

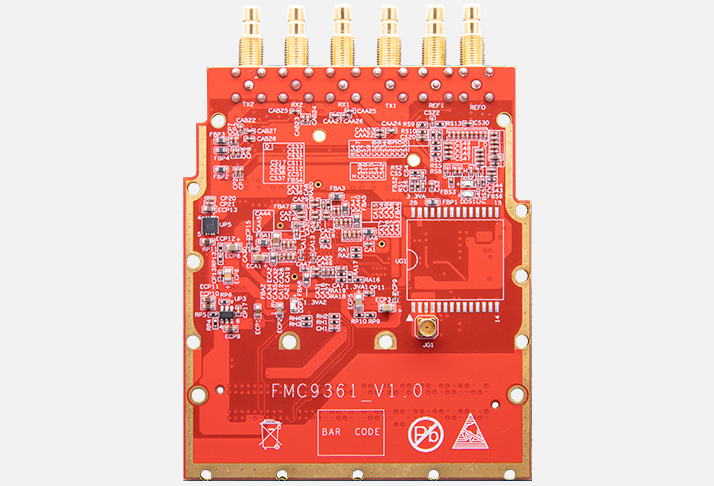

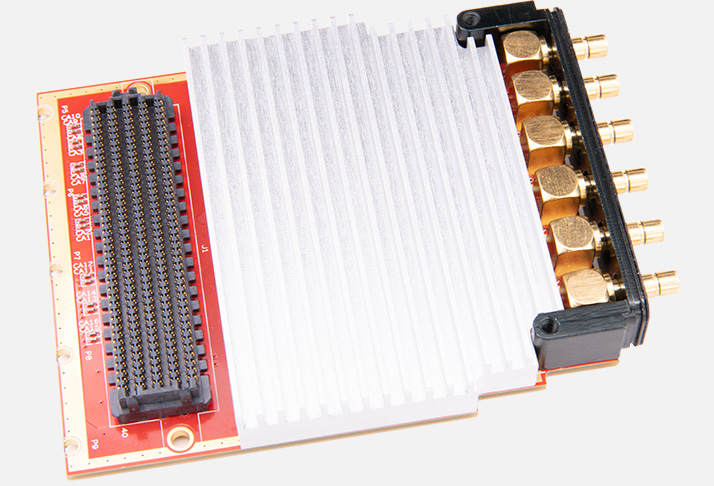

The FL6000 highly integrated RF module can cover the 70MHz~6GHz frequency band and integrates dual channel transceiver links. The maximum real-time bandwidth for sending is 56MHz, and the maximum receiving bandwidth is 56MHz. FL6000 is more suitable for application on general software defined radio platforms.
Unit price
$ 872
The FL6000 highly integrated RF module can cover the 70MHz~6GHz frequency band and integrates dual channel transceiver links. The maximum real-time bandwidth for sending is 56MHz, and the maximum receiving bandwidth is 56MHz. Compared with traditional RF front-end, AD9361 can achieve advantages such as low power consumption and small size, while ensuring sensitivity and dynamic range performance. FL6000 is more suitable for application on general software defined radio platforms.
FL6000 has a standard FMC LPC interface that can be connected to the ALINX FPGA carrier board for use.
● 3G/4G micro and macro base stations (BTS)
● FDD and TDD active antenna systems
● Portable test equipment
Click on the image to view a larger image.
Not all features are available simultaneously – please check the documentation for any applicable constraints.
All specifications are subject to change without notice. Please verify component specifications with vendor's datasheets.
ALINX provides product user manuals for each product.
| FMC Cards | 1 |
|---|
| Product Model | USD Price |
|---|---|
| FL6000 | 872 |
FL6000 User Manual
