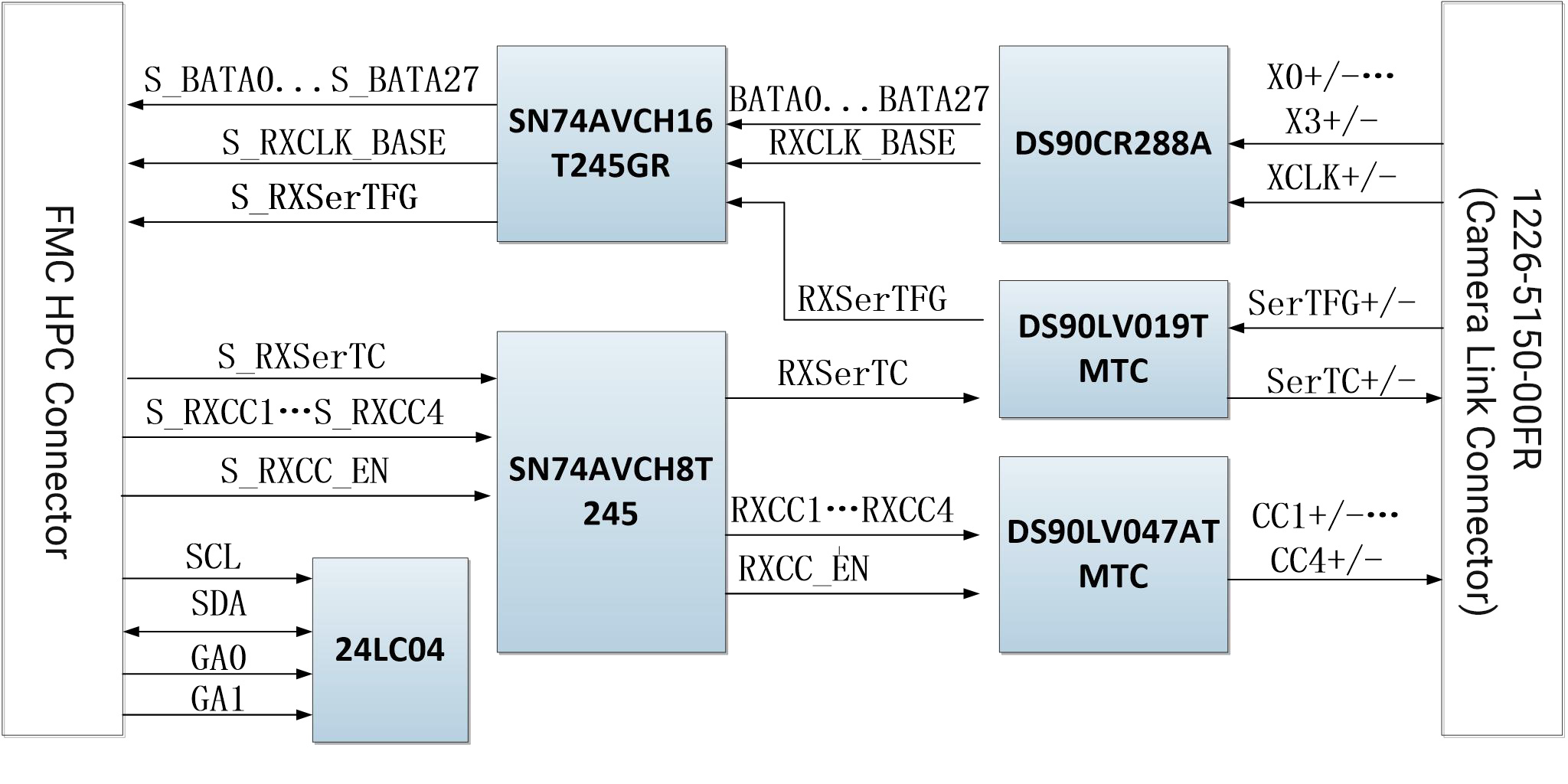

FH1226 is a 2-way Camera Link interface (SDR26). Supports three modes: Base, Medium, and Full. Using DS90CR288A chip, 4 pairs of LDVS serial data are converted into 28 bit parallel data, with a throughput of up to 2.38Gbps.
Unit price
$ 528
FH1226 is a 2-way Camera Link interface (SDR26). Supports three modes: Base, Medium, and Full. Using DS90CR288A chip, 4 pairs of LDVS serial data are converted into 28 bit parallel data, with a throughput of up to 2.38Gbps.
FH1226 has a standard FMC HPC interface that can be connected to the ALINX FPGA carrier board for use.

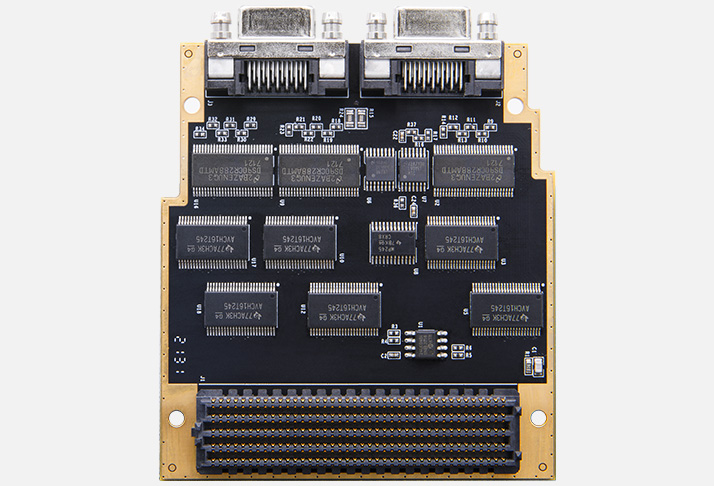

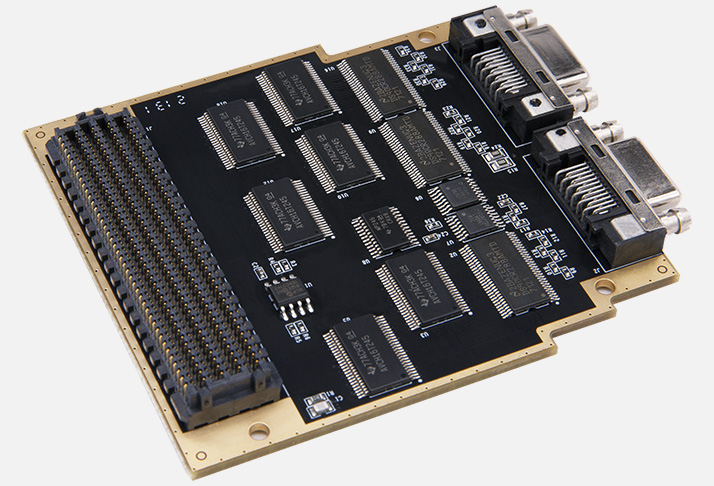

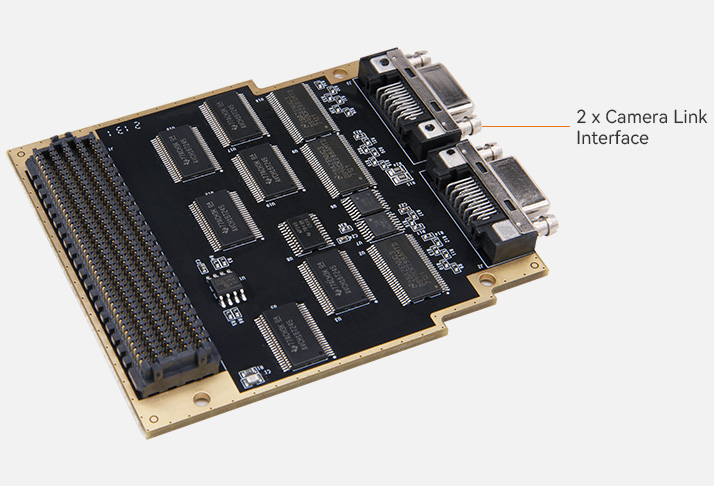

Click on the image to view a larger image.
Not all features are available simultaneously – please check the documentation for any applicable constraints.
All specifications are subject to change without notice. Please verify component specifications with vendor's datasheets.
ALINX provides product user manuals for each product.
| FMC Cards | 1 |
|---|
| Product Model | USD Price |
|---|---|
| FH1226 | 528 |
FH1226 User Manual
