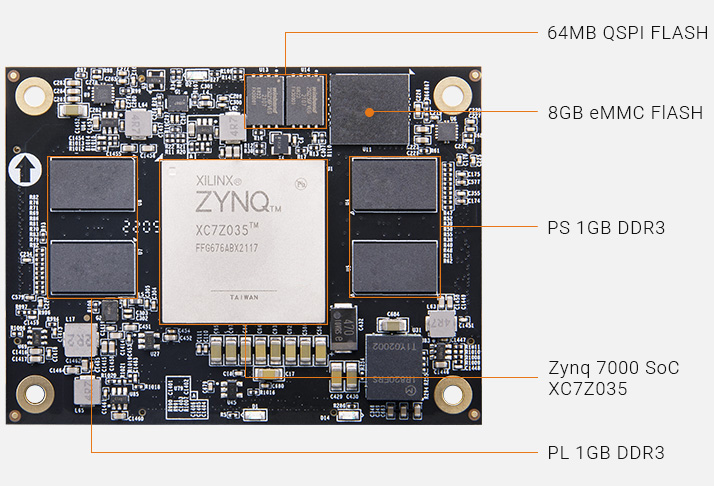

The AC7Z035B SoC module combines AMD Zynq™ 7000 SoC-series device with fast DDR3 SDRAM, eMMC Flash, QSPI Flash, applied to Industrial, Medical, Automotive, Video and Image Processing, Control & Instrumentation and Communication, etc.
Unit price

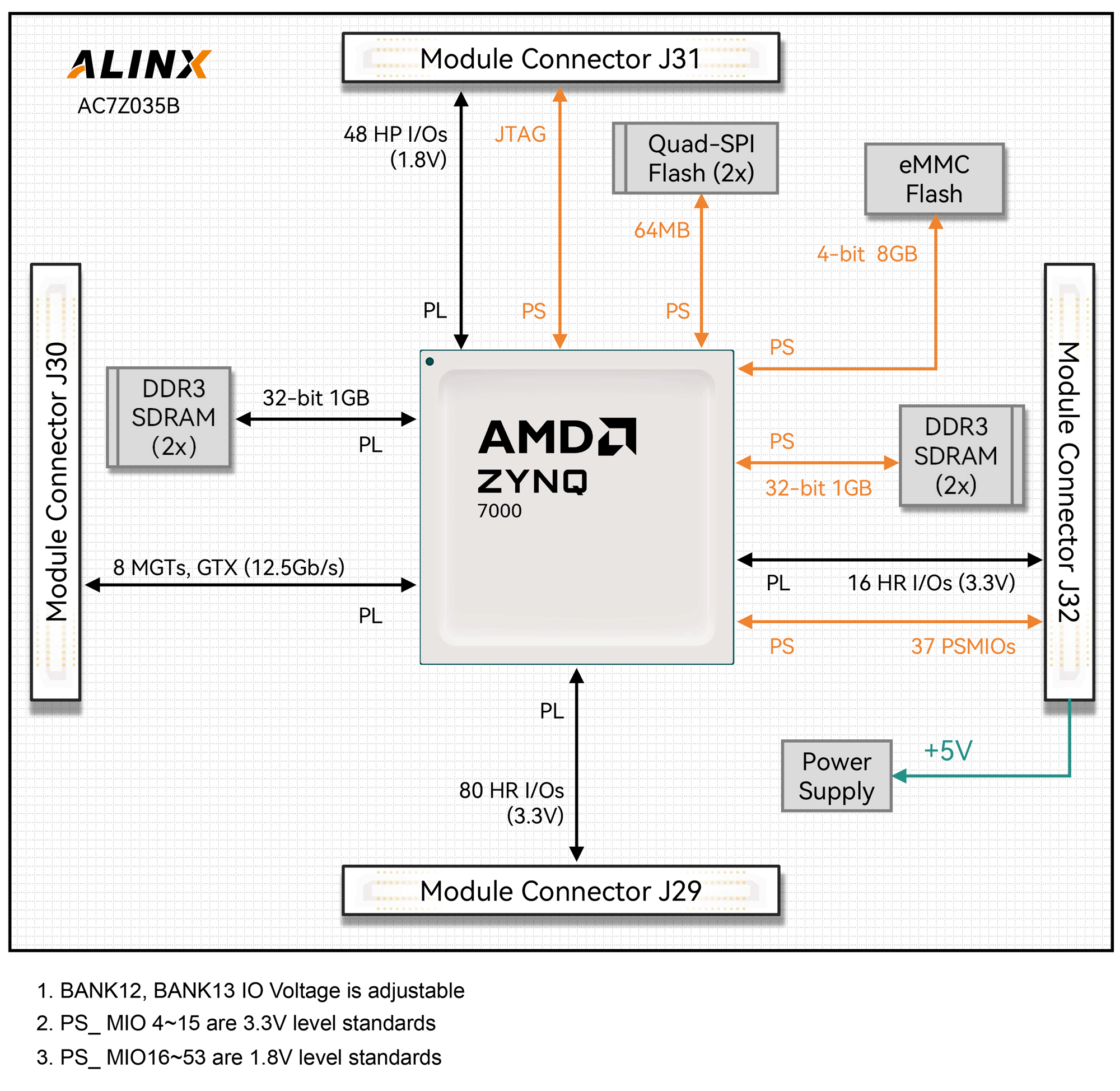

$ 462The AC7Z035B/AC7Z100C System-on-Chip (SoC) System-on-Module (SoM) combines high-end AMD/Xilinx Zynq™ 7000 SoC-series device with fast DDR3 SDRAM, eMMC Flash, parallel Quad-SPI Flash and thus forms a complete and powerful embedded processing system. This module is suitable for high-speed applications due to the high number of transceivers.
● Road Sign Recognition
● ADAS
● Smart Transportation
● Ethernet Backhaul
● Small Cell Baseband
● Network Switch
● Flexible radio platform
● Motor control
● Industrial Control
● Industrial IoT
● Instrumentation
● Smart Grid
● Professional Cameras
● Computer Vision
● Machine Vision
● Endoscop
● Ultrasound, CT, MRI

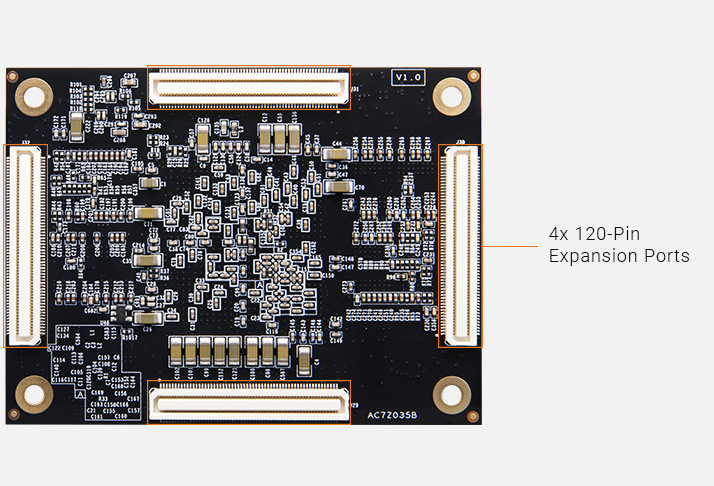

* If you want to design a base board based on this Zynq™ 7000 SoC System-on-Module, you need to purchase AXK6A2337YG high-speed Board to Board Connectors, 120 Pins, you also need to purchase FAN8060 Heatsink Kit, the FAN8060 Heatsink Kit is an optimal cooling solution for ALINX FPGA and SoC modules – it is low-profile and covers the whole module surface.
* We have Zynq™ 7000 SoC development boards AX7Z035B that uses this Zynq™ 7000 SoC module, to get started with development straight out of the box.
Please check the Relevant Products at the bottom of the page and click to learn more details.
Click on the image to view a larger image.
Not all features are available simultaneously – please check the documentation for any applicable constraints.
All specifications are subject to change without notice. Please verify component specifications with vendor's datasheets.
ALINX provides product user manuals for each product.
Zynq 7000 SoC SOM | 1 |
---|
Product Model | Preferred Model | Zynq 7000 SoC | DDR3 SDRAM (PS) | DDR3 SDRAM (PL) | QSPI Flash | eMMC | GTX | Temp. Range | USD Price |
---|---|---|---|---|---|---|---|---|---|
AC7Z100C | √ | XC7Z100-2FFG900I | 1 GB | 1 GB | 64 MB | 8GB | 16 | -40°C~+85°C | 726 |
AC7Z045 | XC7Z045-2FFG676I | 1 GB | 1 GB | 64 MB | 8GB | 8 | -40°C~+85°C | TBD | |
AC7Z035B | √ | XC7Z035-2FFG676I | 1 GB | 1 GB | 64 MB | 8GB | 8 | -40°C~+85°C | 462 |
AC7Z030 | XC7Z030-2FFG676I | 1 GB | 1 GB | 64 MB | 8GB | 4 | -40°C~+85°C | TBD |
1. For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock.
2. We offer custom configuration, a MOQ applies.
Please contact us for more details.
