ACRF47

ACRF47 SoM based on AMD Zynq™ US+ RFSoC XCZU47DR

The ACRF47 module for Single-Chip Adaptable Radio Platform development, combines AMD Zynq™ UltraScale+™ RFSoC-series XCZU47DR device with fast DDR4 SDRAM, QSPI Flash, Meet the needs of large-scale MIMO radio, 5G baseband, fixed wireless access, cable TV access, testing and measurement, satellite communication, phased array radar/digital array radar, and other high-performance RF applications.

Unit price

$ 11227

Overview

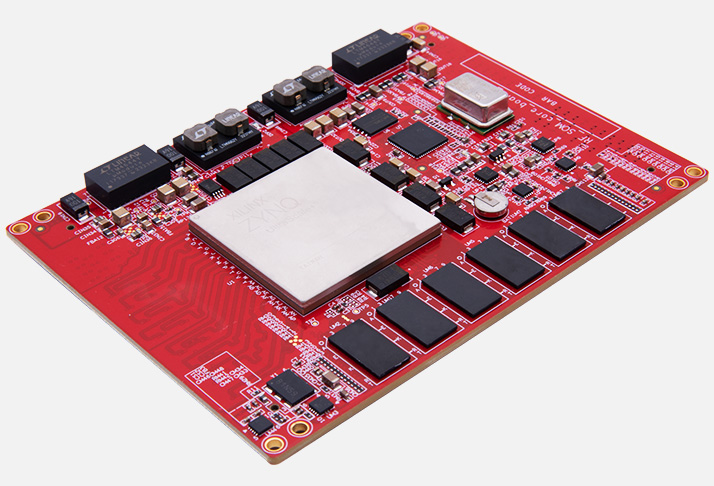

ALINX AMD Xilinx Zynq UltraScale+ RFSoC XCZU47DR SoM System-on-Module ACRF47 RF

Product Description

The ACRF47 System-on-Chip (SoC) System-on-Module (SoM) combines high-end AMD/Xilinx Zynq™ UltraScale+™ RFSoC-series XCZU47DR device with fast DDR4 SDRAM,dual parallel Quad-SPI Flash and thus forms a complete and powerful embedded processing system. Integrate hardware and software to help you provide a prototype of a high-performance wireless receiver system and perform air signal acquisition and analysis


Applications



Key Features

Product Information

Module Features

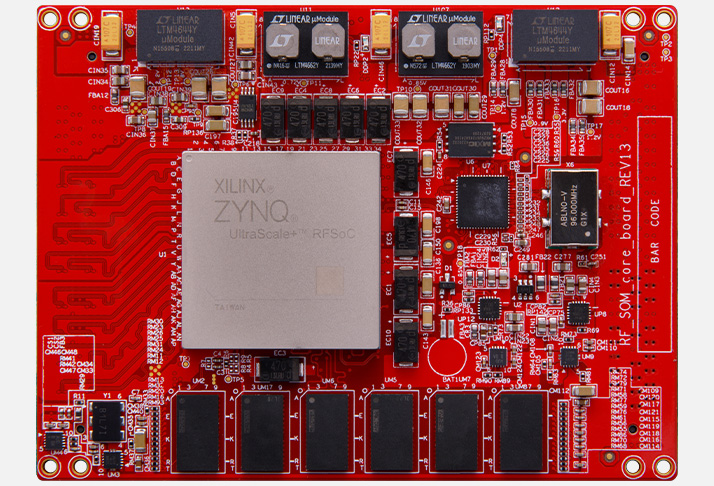

Featuring the AMD/Xilinx Zynq™ UltraScale+™ RFSoC XCZU47DR-2FFVE1156I

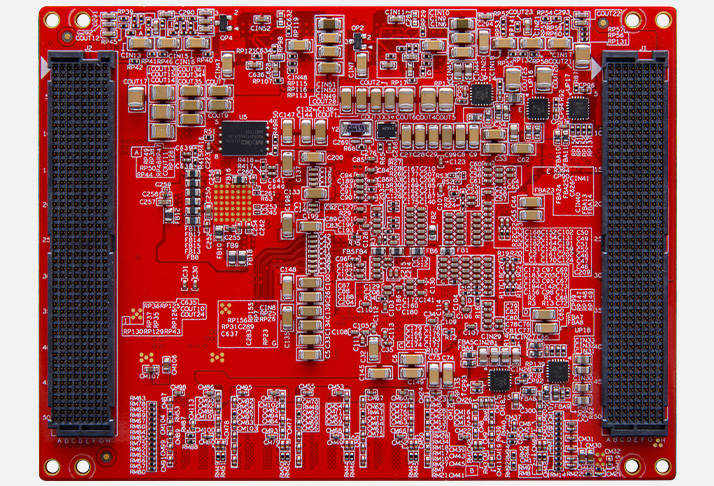

ALINX AMD Xilinx Zynq UltraScale+ RFSoC XCZU47DR SoM System-on-Module ACRF47 RF
ALINX AMD Xilinx Zynq UltraScale+ RFSoC XCZU47DR SoM System-on-Module ACRF47 RF


* We have Zynq™ UltraScale+™ RFSoC development boards AXRF47 that uses this Zynq™ UltraScale+™ RFSoC module, to get started with development straight out of the box.

Please check the Relevant Products at the bottom of the page and click to learn more details.

What's Inside the Box

ALINX AMD Xilinx Zynq™ UltraScale+™ RFSoC XCZU47DR System-on-Module/SoM

RFSoC SoM1


Product Selection Matrix

Product Matrix

Product ModelPreferred ModelFPGA DevicesDDR4 ECC SDRAM (PS)DDR4 SDRAM (PL)QSPI FlashGTRGTYTemp. RangeUSD Price
ACRF47XCZU47DR-2FFVE1156I4 GB2 GB128MB48-40°C~+85°C11227


1. For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock.
2. We offer custom configuration, a MOQ applies.
Please contact us for more details.


We offer complete documentations and a lot of demos and tutorials.
Please contact us should you have any need.
