ALINX AMD Xilinx Zynq 7000 SoC XC7Z010 development board

Overview

Product Description

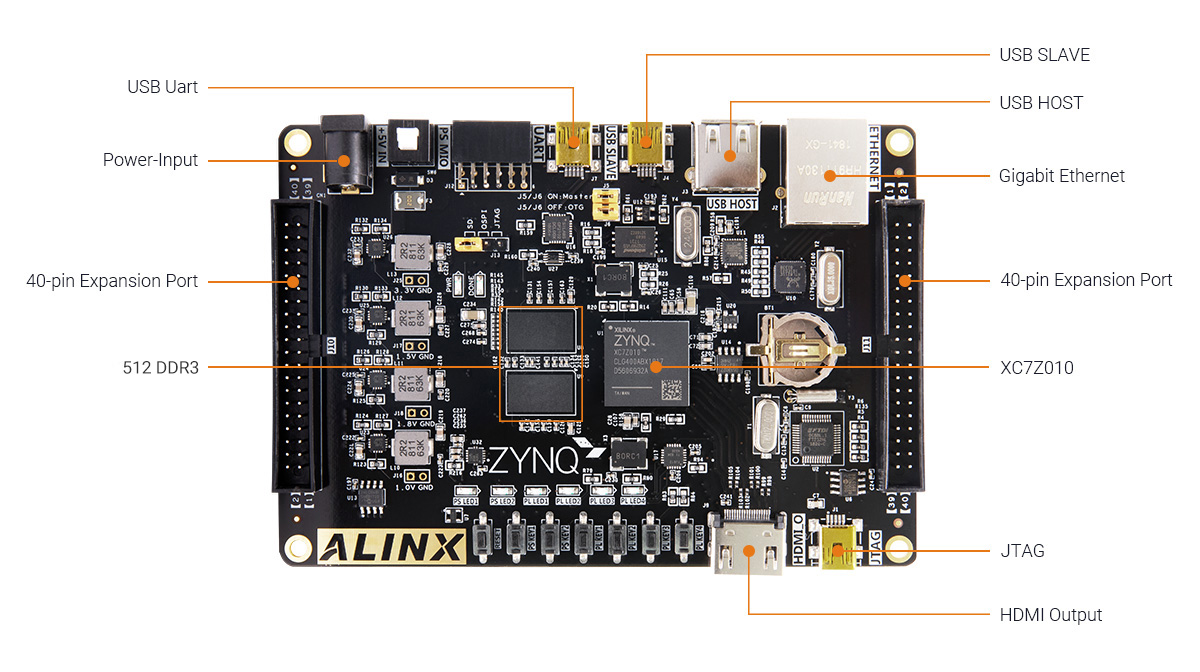

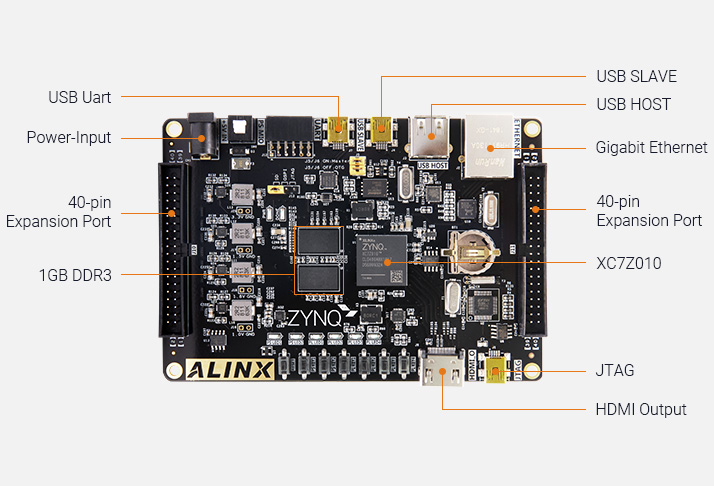

The AX7010 SoC development board equipped with the AMD/Xilinx Zynq™ 7000 SoC-series device, delivers standout performance with fast DDR3 SDRAM, QSPI Flash, Gigabit Ethernet, HDMI Output.

Applications

Automotive
● Road Sign Recognition
● Smart Transportation
Communication Network
● Ethernet Backhaul
● Small Cell Baseband
● Network Switch
● Flexible radio platform
Industrial
● Motor control
● Industrial Control
● Industrial IoT
● Instrumentation
● Smart Grid
Video and Image Processing
● Professional Cameras
● Computer Vision
● Machine Vision
Medical
● Endoscop
● Ultrasound, CT, MRI

Key Features

● AMD/Xilinx Zynq™ 7000 SoC:
◆ ARM® dual-core Cortex™-A9 up to 767 MHz(AX7010 is 667MHz)
◆ Artix 7 28nm FPGA fabric● 512 MByte (32-bit) DDR3 SDRAM on PS
● 32 MB QSPI Flash
● 1 x Gigabit Ethernet (1 x PS)
● 1 x HDMI( in or out)
● 1 x USB to UART on PS
● 1 x JTAG
● 1x USB HOST
● 1x USB SLAVE
● 2 x 40-pin expansion port (40 pin 2.54mm spacing, with 34 IOs, connected to ALINX modules such as binocular cameras, TFT LCD screens, high-speed AD modules, etc.)
● 2 x 256Byte EEPROM 24LC04
● 1 x DS1302(Real-time Clock)
● 1 x Micro SD
● LED (2 x PS LED + 4 x PL LED)
● KEY (2 x PS KEY + 4 x PL KEY)
● 1 x 12 PIN PS PMOD
● 5V single supply
● Dimensions: 130 x 90 mm form factor

Product Information

Specifications
What's Inside

Development Board Features

Featuring the AMD/Xilinx's Zynq™ 7000 SoC XC7Z010-1CLG400I Adaptive SoC

Design-in Kit – The Fast Way to the Market, to get started with development straight out of the box.
The ALINX development board help shorten time-to-market for any AMD/Xilinx Zynq™ 7000 SoC based application.

What's Inside the Box

ALINX AMD Xilinx Zynq™ 7000 SoC XC7Z010 development board and Some accessories

Development Board	1	TF Card	1
Mini USB Cable	2	Acrylic Plate	1
5V Power Adapter	1	Card Reader	1

Product Selection Matrix

Product Matrix

Product Model	Preferred Model	Zynq 7000 SoC	DDR3 SDRAM (PS)	QSPI Flash	USD Price
AX7010	√	XC7Z010-1CLG400I	512 MB	32 MB	132
AX7020	√	XC7Z020-2CLG400I	1 GB	32 MB	185

1. For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock.
2. We offer custom configuration, a MOQ applies.
Please contact us for more details.

We offer complete documentations and a lot of demos and tutorials.
Please contact us should you have any need.
