ALINX AMD Xilinx Zynq 7000 SoC XC7Z015 development board

Overview

Product Description

The AX7015B SoC development board equipped with the AMD/Xilinx Zynq™ 7000 SoC-series device, delivers standout performance with fast DDR3 SDRAM, eMMC Flash, QSPI Flash, PCIe, SFP+, HDMI.

Provide high-speed communication (PCIe, SFP+) and video applications (HDMI).

Applications

Automotive
● Road Sign Recognition
● ADAS
● Smart Transportation
Communication Network
● Ethernet Backhaul
● Small Cell Baseband
● Network Switch
● Flexible radio platform
Industrial
● Motor control
● Industrial Control
● Industrial IoT
● Instrumentation
● Smart Grid
Video and Image Processing
● Professional Cameras
● Computer Vision
● Machine Vision
Medical
● Endoscop
● Ultrasound, CT, MRI

Key Features

System-on-Module
● AMD/Xilinx Zynq™ 7000 SoC:
◆ ARM® dual-core Cortex™-A9 up to 767 MHz
◆ Artix 28nm FPGA fabric● Pluggable module with 4 x Panasonic board-to-board connectors
● 1 GByte (32-bit) DDR3 SDRAM on PS
● 32 MB QSPI Flash
● 8 GB eMMC Flash
Base Board
● 1 x PCIe® Gen2 ×2 (PL)
● 2 x SFP+ (per line 6.25Gbps)
● 2 x Gigabit Ethernet (1 x PS + 1 x PL)
● 2 x HDMI(1 x HDMI in + 1 x HDMI out)
● 4 x USB2.0 (Host)
● 1 x USB to UART on PS
● 1 x JTAG
● 1 x 40-pin Expansion Port (40 pin 2.54mm spacing, with 34 IOs, connected to ALINX modules such as binocular cameras, TFT LCD screens, high-speed AD modules, etc.)
● 1 x Micro SD
● LED (1 x PWR + 1 x PS LED + 4 + PL LED)
● KEY (1 x PS KEY + 1 x PL KEY)
● 12V single supply
● Dimensions: 188 x 106 mm form factor

Product Information

Specifications
What's Inside

Development Board Features

Featuring the AMD/Xilinx's Zynq™ 7000 SoC XC7Z015-2CLG485I Adaptive SoC

Design-in Kit – The Fast Way to the Market, to get started with development straight out of the box.
The ALINX development board help shorten time-to-market for any AMD/Xilinx Zynq™ 7000 SoC based application.

* The AX7015B development board consists of a AC7015B SoM and base board. If you want to purchase AC7015B SoM separately.
Please check the Relevant Products at the bottom of the page and click to learn more details.

What's Inside the Box

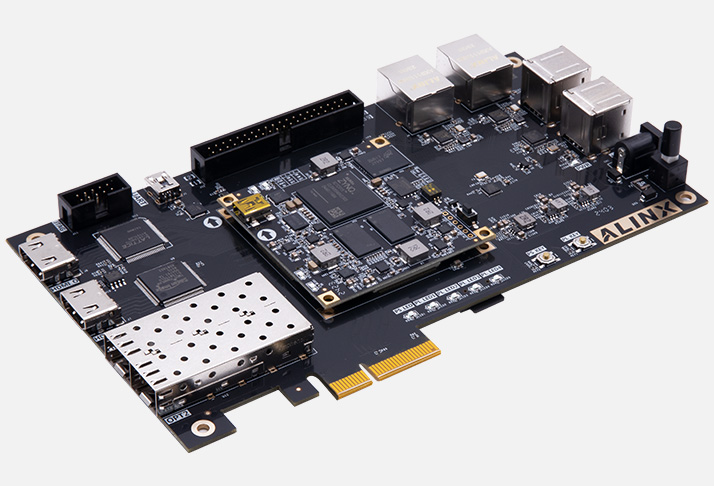

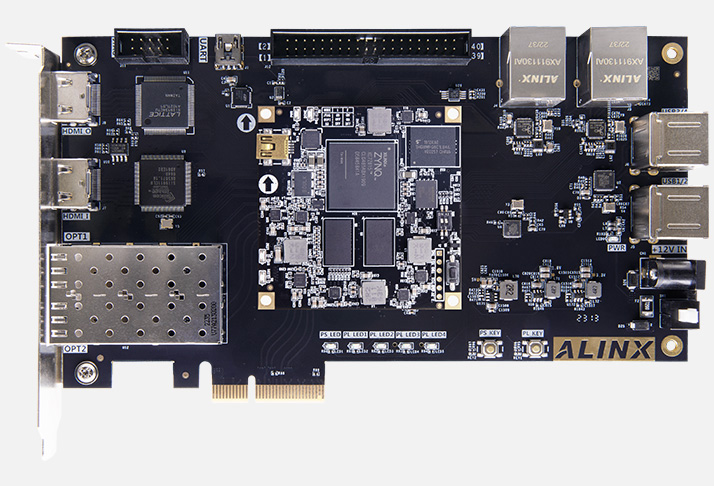

ALINX AMD Xilinx Zynq™ 7000 SoC XC7Z015 development board and Some accessories

System-on-Module	1	Base Board	1 Set
Mini USB Cable	1	USB Downloader Cable / set	1
12V Power Adapter	1	Transparent protective board	1
TF Card	1	Card Reader	1

Product Selection Matrix

Product Matrix

Product Model	Preferred Model	Zynq 7000 SoC	DDR3 SDRAM (PS)	QSPI Flash	eMMC Flash	USD Price
AX7015B	√	XC7Z015-2CLG485I	1 GB	32 MB	8GB	330

1. For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock.
2. We offer custom configuration, a MOQ applies.
Please contact us for more details.

We offer complete documentations and a lot of demos and tutorials.
Please contact us should you have any need.
