AX7Z100B

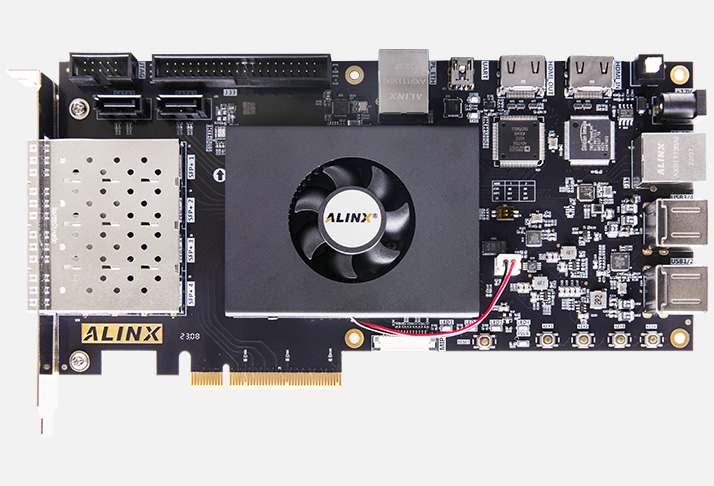

AX7Z100B Dev Board & Kit with AMD Zynq™ 7000 SoC XC7Z100

The AX7Z100B SoC development board equipped with the AMD Zynq™ 7000 SoC-series device with fast DDR3 SDRAM, eMMC Flash, QSPI Flash, PCIe, SFP+, HDMI, applied to Industrial, Medical, Automotive, Video and Image Processing, Control & Instrumentation and Communication, etc.

Unit price

$ 990

Overview

AX7Z100B Development  Board & Kit with AMD Zynq™ 7000 SoC XC7Z100 7Z100

Product Description

The AX7Z035B/AX7Z100B SoC development board equipped with the AMD/Xilinx Zynq™ 7000 SoC-series device, delivers standout performance with fast DDR3 SDRAM, eMMC Flash, QSPI Flash, PCIe, SFP+, HDMI.


Provide high-speed communication (PCIe, SFP+) and video applications (HDMI).

Applications



Key Features

Product Information

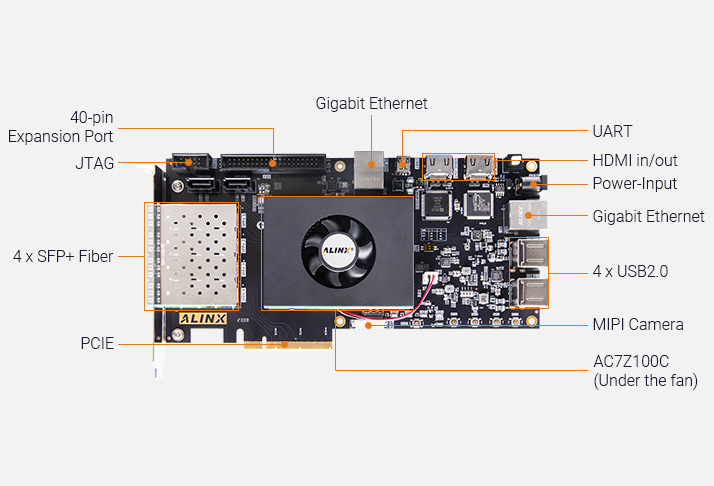

Development Board Features

Featuring the AMD/Xilinx's Zynq™ 7000 SoC XC7Z100-2FFG900I Adaptive SoC

Design-in Kit – The Fast Way to the Market, to get started with development straight out of the box.
The ALINX development board help shorten time-to-market for any AMD/Xilinx Zynq™ 7000 SoC based application.

AX7Z100B Development  Board & Kit with AMD Zynq™ 7000 SoC XC7Z100 7Z100

* The AX7Z100B development board consists of a AC7Z100C SoM and base board. If you want to purchase AC7Z100C SoMseparately.
Please check the Relevant Products at the bottom of the page and click to learn more details.

What's Inside the Box

ALINX AMD Xilinx Zynq™ 7000 SoC XC7Z100 development board and Some accessories

The FAN8060 Heatsink Kit is an optimal cooling solution for ALINX FPGA and SoC modules – it is low-profile and covers the whole XC7Z100 device surface.

System-on-Module1Base Board1
Heatsink Kit (preinstalled)1USB Downloader Cable1 Set
Mini USB Cable1PCle Fence1 Set
12V Power Adapter1Card Reader1
TF Card1


Product Selection Matrix

Product Matrix

Product ModelPreferred ModelZynq 7000 SoCDDR3 SDRAM (PS)DDR3 SDRAM (PL)QSPI FlasheMMCUSD Price
AX7Z100BXC7Z100-2FFG900I1 GB1 GB64 MB8GB990
AX7Z045XC7Z045-2FFG676I1 GB1 GB64 MB8GBTBD
AX7Z035B

XC7Z035-2FFG676I

1 GB1 GB64 MB8GB700
AX7Z030XC7Z030-2FFG676I1 GB1 GB64 MB8GBTBD


1. For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock.
2. We offer custom configuration, a MOQ applies.
Please contact us for more details.


We offer complete documentations and a lot of demos and tutorials.
Please contact us should you have any need.

Documentations

Related Products
